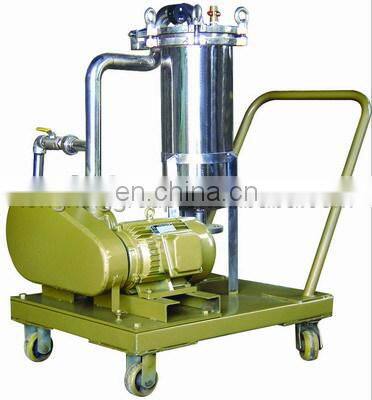

Bag Filter is one kind of pressure type filter. The liquid is injected into the filtration bag by a pump. The bag is installed inside the strengthening net or protection net.
1) The bag filter is easy to operate. When you want to use the machine, choose the demand fineness filtration bag and install it into the filtration chamber, then check whether the O type seal rings are intact, at last tighten the circular type bolts.
2) Start the pump, then the pressure gauge on the filtration cover will slightly rise. At first, the pressure is about 0.05Mpa, and it will rise up due to the residues gradually increase in the filtration chamber. When the pressure rises up to 0.4Mpa, the user should stop the machine and open the cover, to check the residues. You can choose to replace the filtration bag to continue working. The filtration bag can be reused after cleaning.
3) You can adjust the ball valve on the return line to control the pressure around 0.1~0.3Mpa. The too high pressure will damage the filtration bag and the protection net.
2. Applications of the bag filter:
Paint, beer, vegetable oil, pharmaceuticals, chemicals, petroleum products, textile chemicals, photographic chemicals, plating liquid, milk, mineral water, hot solvents, latex, industrial water, sugar water, resins, inks, industrial waste water, fruit juice, edible oil and wax type, etc.
3. Features of the bag filter:
This fast pressure-type filter has features as followed: New structure, small size, easy operation, energy saving, high efficiency, closed working, adaptable multi-purpose.
The equipment mainly consists of the filter tank shell, filter tank cover, quick-opening institution and stainless steel strengthening net.
4. Technical parameters:
| Type | CL-1 | CL-2 |
| Handling Ability (Tons/h) | 0.2-1 | 0.4-2 |
| Maximum Pressure (Mpa) | ≤ 0.40 | ≤ 0.40 |
| Filtrate Fineness (µ m) | 5-100 | 5-100 |
| Bag Quantity | 1 | 2 |
| Filtration Viscosity (PaS) | ≤ 1 | ≤ 1 |
| Operating Temperature (Degree Centigrade) | ≤ 120 | ≤ 120 |
| Motor Power (KW) | 3KW | 3KW |

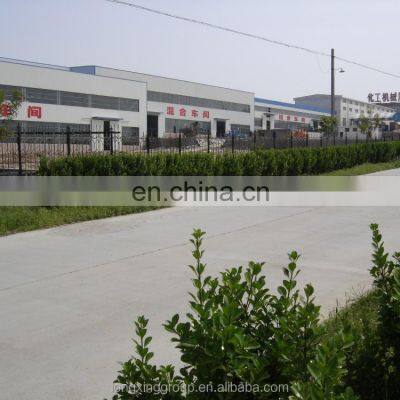

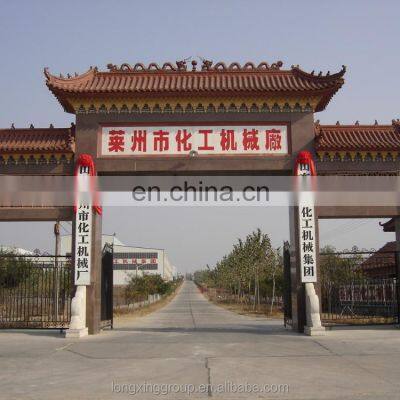

Shandong Longxing Chemical Machinery Group Co., Ltd is not only the professional base for the chemical machinery, but also one of the fixed companies for China National Chemical Equipment Corporation.Our group has the Design License of Special Equipemnt in Grade D1 &D2, the Manufacture License of Special Equipment in Grade A1 &A2.We also have the Maufacturer License of Special Equipment in Heat Transfer Oil Furance, ISO Quality System Certification and the CE Certification.
Q1. What is your terms of packing?
A: Generally, we pack our goods in plywood case . If your goods have one container that the goods can without plywood case packing ,just wrap the film to load .
Q2. What is your terms of payment?
A: T/T 40% as deposit, and 60% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take about 30 days after receiving your advance payment for customized machine. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the drawing ?
A: Yes, we can produced as your technical drawings. If you haven't the drawing , just told me your need and our engineer will make the drawing for your reference .
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
