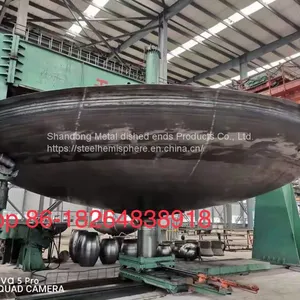

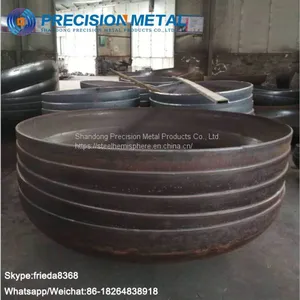

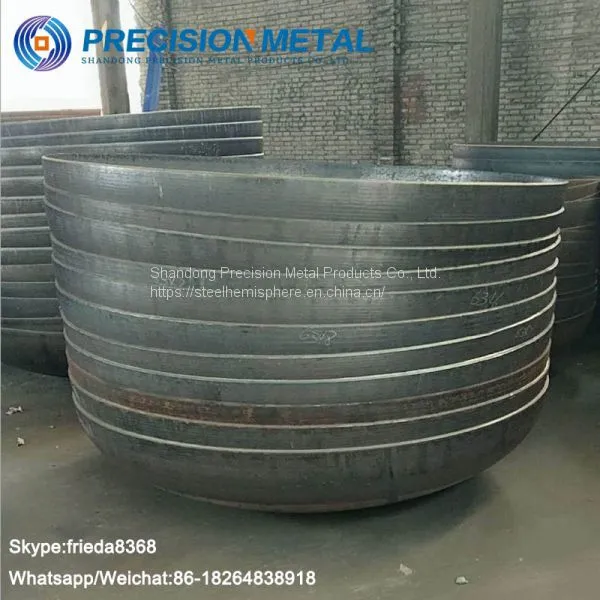

Spinning pressed ellipsoidal dished ends tank cover tank heads for boiler

Ellipsoidal head (also called elliptical head or elliptical dish end) is usually made with Carbon steel, stainless steel, austenitic and non ferritic metals that can be cold worked. The shape of this ellipsoidal head is more economical, because the height of the head is just a fraction of the diameter. The elliptical dish end radius varies between the major and minor axis usually with the ratio is 2:1. The elliptical tank head is the economical solution for medium pressure tanks due to the reduced metal thickness requirement.

The ellipsoidal head has good mechanical properties better than the torispherical head. Due to the application of spinning manufacturing process in recent years, the fabrications of the larger diameter elliptical head is also can be realized. ASME elliptical dished heads are used in the construction of tanks for unfired pressure vessels, such as liquefied petroleum gas and air receivers.

Size range: 50mm-10000mm with integral formed,larger sizes with subsection formed can be specified.
Standard: ANSI, ASME ,MSS, API, DIN, JIS, BS,AWWA
Thickness: 2mm-300mm
Material: stainless steel,carbon steel, aluminum,special steel etc.
Application: mainly for pressure vessels and boilers in diverse industry such as  oil, chemical,winery, pharmaceutical, environmental and military.
