1. Grade: Carbon steel, Stainless steel, Aluminum,Titanium,etcAccording to customers requirement.
2. Size: 89mm--10000mm
3. Standard: ANSI, ASME ,MSS, API, DIN, JIS
4. Certification: ISO9001 ,ISO14001,OHSAS18001

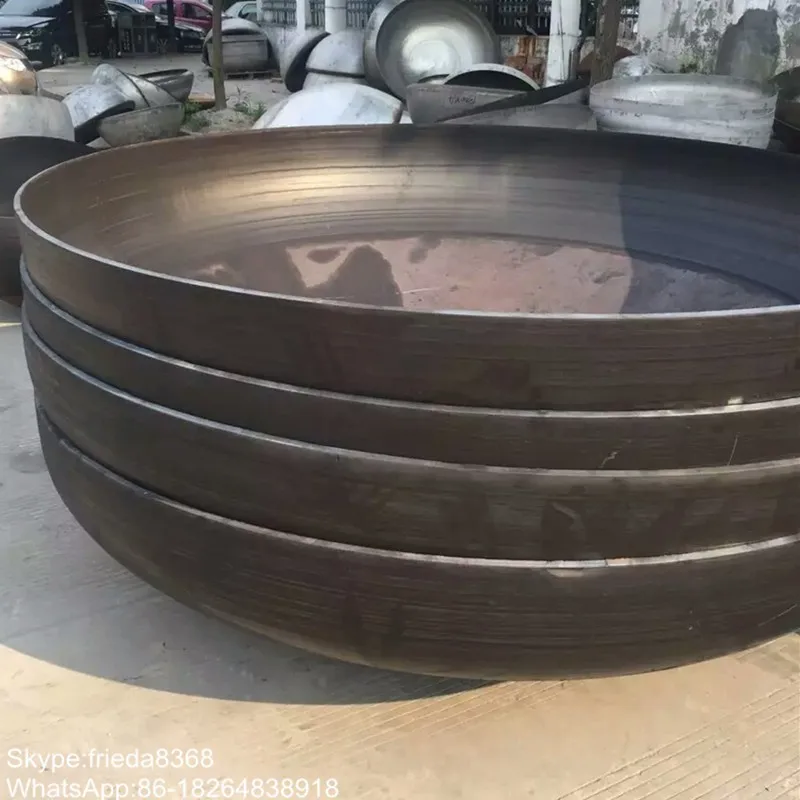

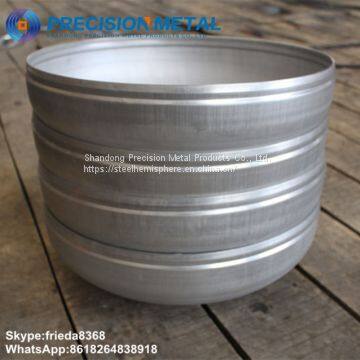

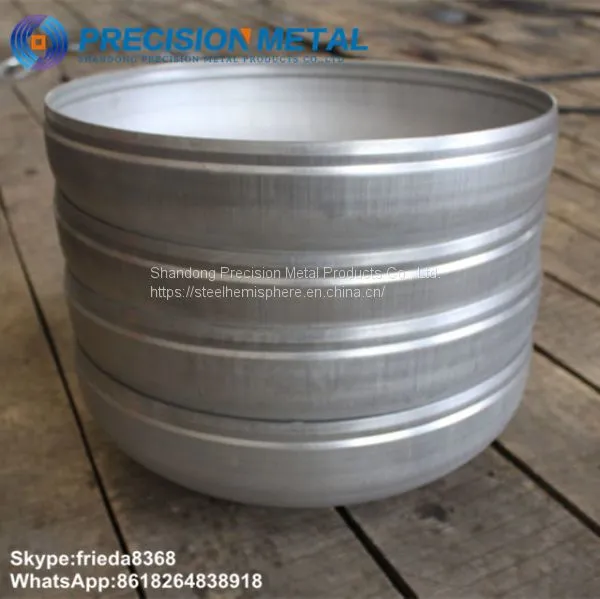

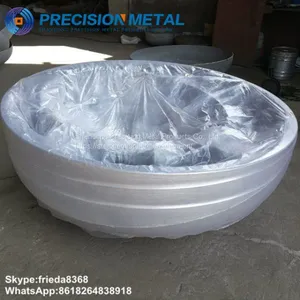

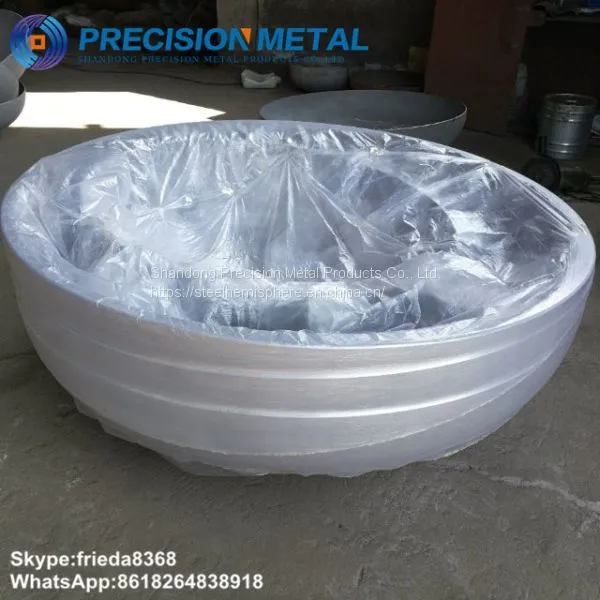

5.Name: stainless steel heads in both ASME 2:1 Elliptical and ASME Flanged & Dished styles

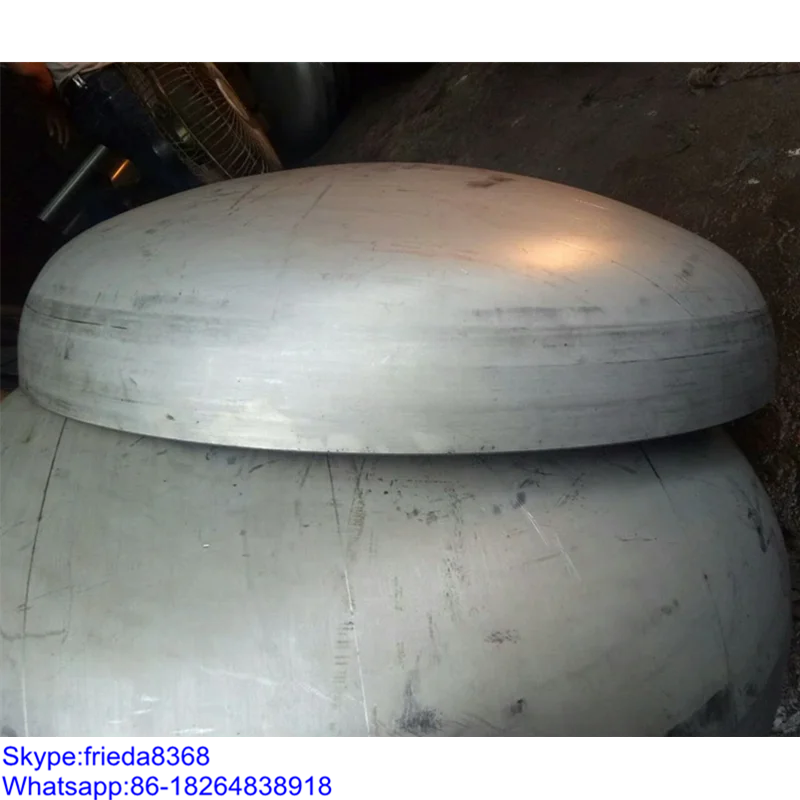

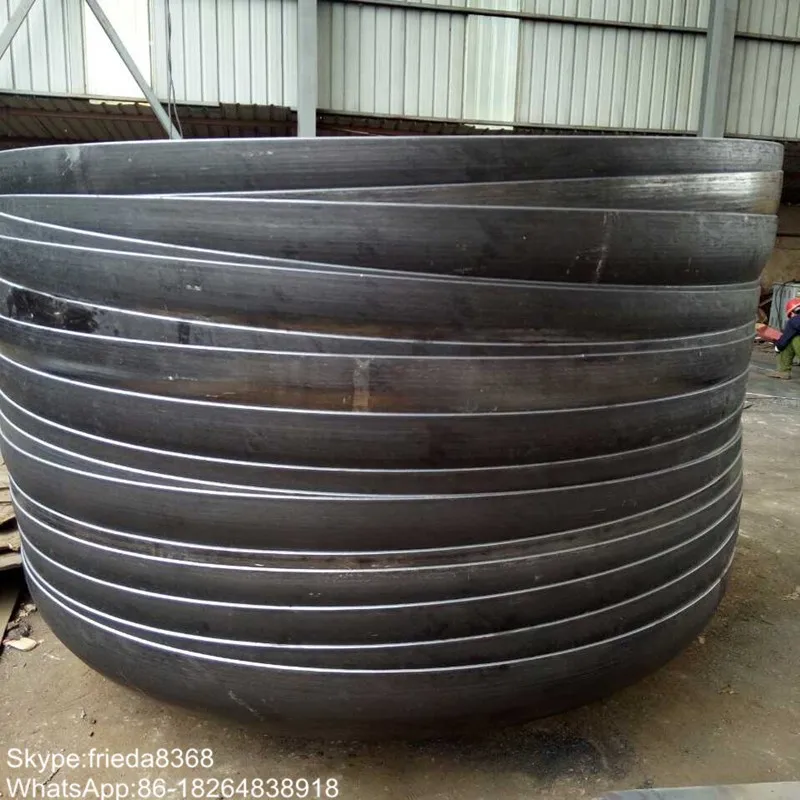

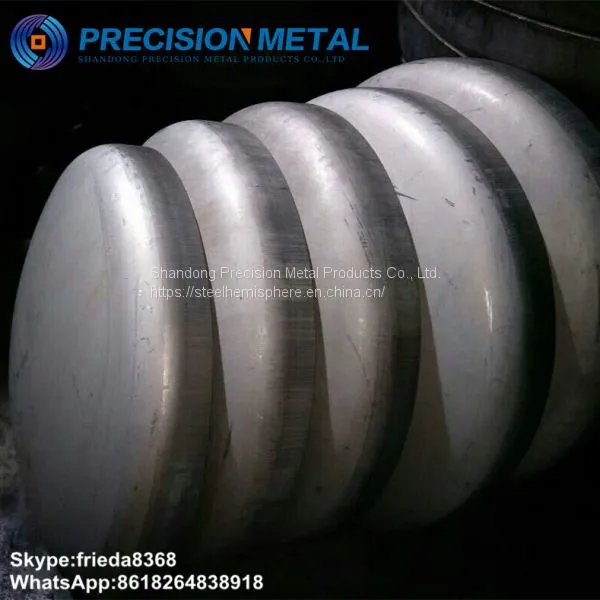

Ellipsoidal head (also called elliptical head or elliptical dish end) is usually made with Carbon steel, stainless steel, austenitic and non ferritic metals that can be cold worked. The shape of this ellipsoidal head is more economical, because the height of the head is just a fraction of the diameter. The elliptical dish end radius varies between the major and minor axis usually with the ratio is 2:1. The elliptical tank head is the economical solution for medium pressure tanks due to the reduced metal thickness requirement.
The ellipsoidal head has good mechanical properties better than the torispherical head. Due to the application of spinning manufacturing process in recent years, the fabrications of the larger diameter elliptical head is also can be realized. ASME elliptical dished heads are used in the construction of tanks for unfired pressure vessels, such as liquefied petroleum gas and air receivers.
Passed the ISO9001:2008 quality system authentication and ROHS authentication.
We can provide the out size from 89mm to 10000mm,the thinckness from 2mm-300mm.
Professional manual processing, no burr.

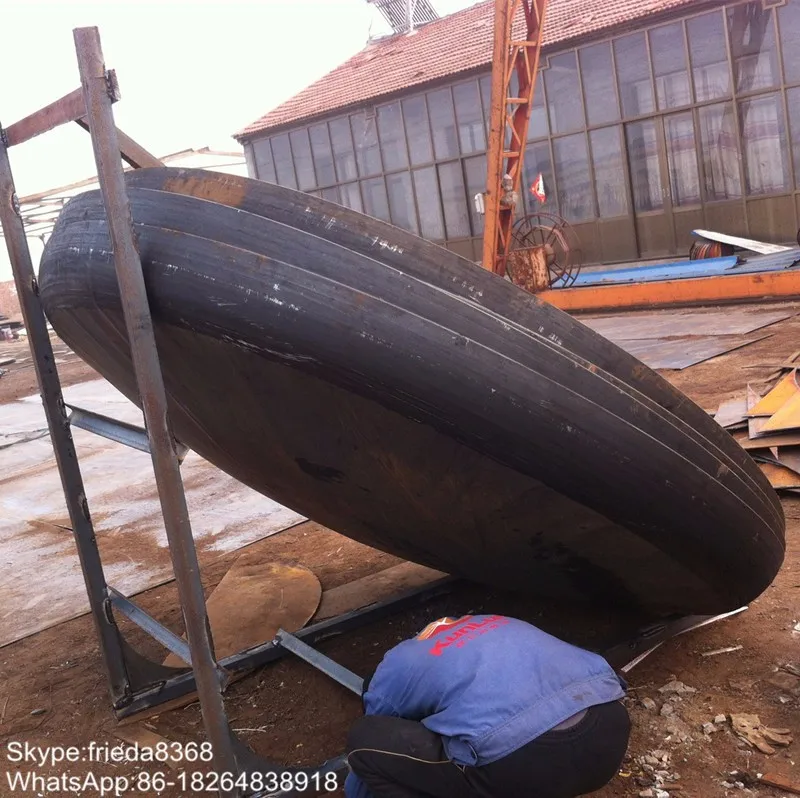

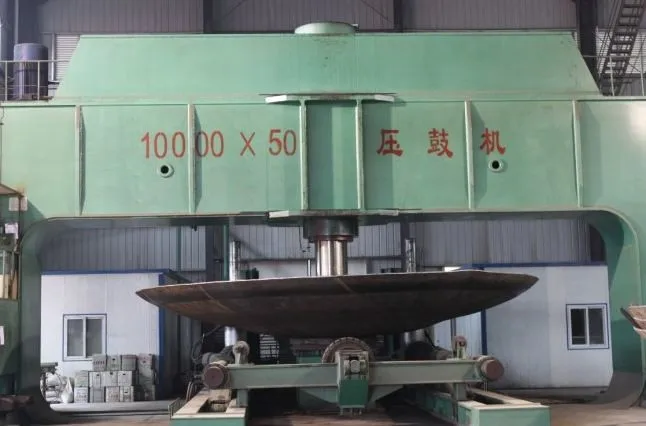

Our Workshop
Our Workers
Our Team
We are a specialized manufacturer of tank head. With over 20 years of engineered driven expertise ,it is a recognized leader within the tank head industry in china.With unique head forming, fabrication and heat treating capabilities, we offer a diversified range of products. Head diameters is from 3.5" to 393.7'', and Head thickness is from 0.078" to 11.8''. Pressure vessel heads and tank ends are available in a broad range of sizes, shapes, thicknesses and material specifications.
stainless steel heads in both ASME 2:1 Elliptical and ASME Flanged & Dished styles

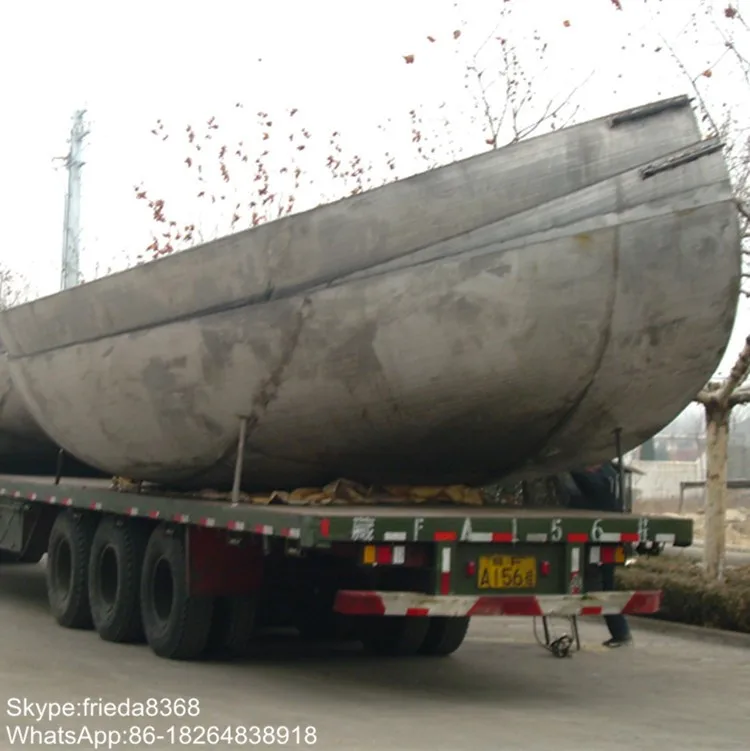

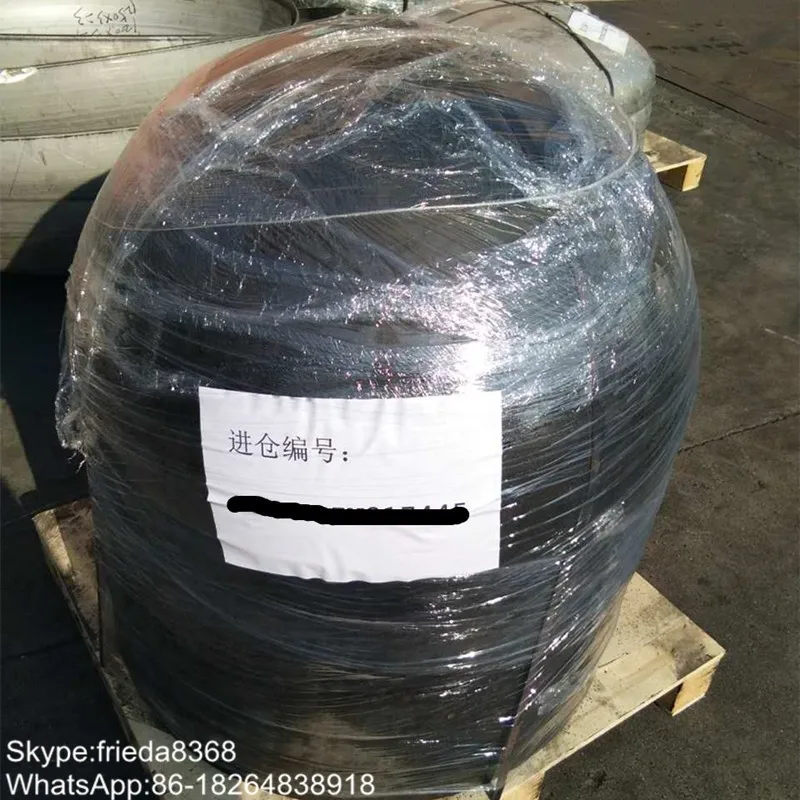

Packing Details : Wooden pallet,Wooden case,Iron pallet,Iron steel frame
Delivery Details : 3-30 days after your payment
Our company mainly produces: 1.Pressure vessel: Industrial Autoclave; Storage Tank , Gas Tank, Fuel Tank, Double Wall Tank, Vulcanizing Tank, Spherical Tank; Heat Exchanger; Distillation Tower, Reaction Tower. 2. Dish head: All kinds of dish head, Nuclear Power dish head, All kinds of Cone and Shell. 3.Forging: Nuclear Power Forging , Marine Forging , Thermal Power Forging, Wind Power Forging, Aerospace Forging, Petrochemical Forging and Various Types of Machinery Forgings.
The customer Boris from Russia are discussing with Alice and Mancy
The customer Mr Park from Korea are Study drawings with Jessica
A: Thanks for your question. If you have drawings, we will be entirely in accordance with production drawings . If you do not have the drawing, you can tell me the product data. There are several important data, such as material, type of head( We have elliptical head, hemispherical head, dished head, flat head, etc. ),diameter, thickness, special tolerances or requirements. We can do the drawings according to your requirements, and you confirm that the final product drawings.
A:Thanks for your question. For carbon steel products, we sandblasting descaling product surface. For stainless steel products, we use acid to remove surface oil and impurities.
A: Thanks for your question.Our production staff is trained through national quality department, and obtain the corresponding certificate, with years of production and design experience. Weld must undergo X-ray inspection to ensure that no defects.
A: Thanks for your question. Our company also is surrounded by a lot of ancillary businesses, such as flanges, boiler, oil refining equipment, etc. We can help you matching the highest quality products with the lowest prices .
