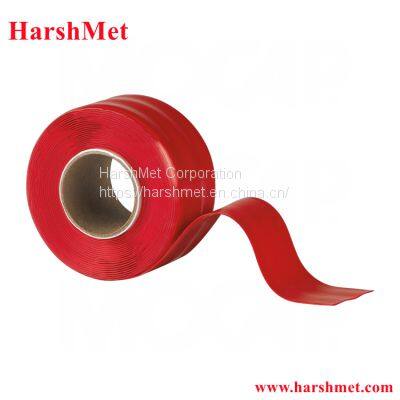

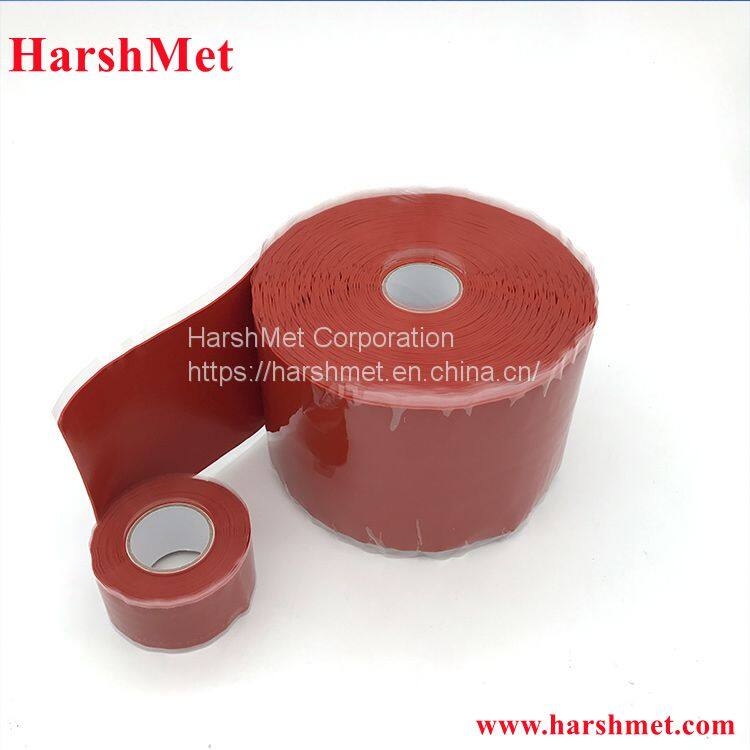

High Voltage Rubber Splicing Rescue Self Fusing Silicone Stretch Tape For Electrical Insulation
US$ 0.1 - 0.5
MOQ: 10 Rolls
Key Specifications
Get Latest Price
Brand Name:
HarshMet
Place of Origin:
China
Model Number:
SFT-40
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen, Shenzhen, Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Bonding Tape Self Fusing Wire Tape Tape Self Adhesive Rubber TapeUS$ 0.1 - 0.5MOQ: 10 Rolls -
Self Fusing Silicone Rubber Electrical Tape for Protecting High Voltage CablesUS$ 0.1 - 0.5MOQ: 10 Rolls
-
High Voltage Self Fusing Silicone Rubber Electrical Insulation TapeUS$ 0.1 - 0.5MOQ: 10 Rolls
-
High Voltage Rubber Splicing Rescue Self Fusing Silicone Stretch Tape For Electrical InsulationUS$ 0.1 - 0.5MOQ: 10 Rolls
-
Self Fusing Silicone Rubber Electrical Tape for Protecting High Voltage CablesUS$ 0.1 - 0.5MOQ: 10 Rolls
Brand Name
HarshMet
Place of Origin
China
Model Number
SFT-40
Material
Other, Silicone Rubber
Type
Insulation Tape
Application
High Voltage
Rated Voltage
35KV
Tensile Strength
21N/10mm
Product Description
SFT-40C Transaprent Silicone Rubber Self Fusing Tape
Descriptions
HarshMet SFT-40 transparent silicone rubber self fusing tape is a high temperature and arc-and-track resistant tape composed of self fusing, inorganic silicone rubber and easy-tear and easy-strip liner. SFT-40 has wide
temperature tolerance of -50 to 250 . It can be
applied through 15kV for insulation and sealing for cable and reenter connections.
Sizes
Features
Standard colors, black, red, yellow, green, gray, blue, orange, etc
Excellent track and arc resistance
Excellent ozone resistance
High Dielectric strength
Workable in extremely low temperatures
Excellent conformability, excellent fusion
Excellent weathering characteristics
Applications
As an ove-wrap for protection of terminating high voltage cables against arcing and tracking. Suitable for submarine cables, large motors, sensors, motors, electrical connections in aircraft engines and insulation wrap electrical equipment.
Technical Data
Descriptions
HarshMet SFT-40 transparent silicone rubber self fusing tape is a high temperature and arc-and-track resistant tape composed of self fusing, inorganic silicone rubber and easy-tear and easy-strip liner. SFT-40 has wide
temperature tolerance of -50 to 250 . It can be
applied through 15kV for insulation and sealing for cable and reenter connections.
Sizes
| Thickness* Width(mm) | Length |
| 0.25*25, 0.25*30, 0.3*25, 0.3*30, 0.4*25, 0.4*30, 0.5*25 , 0.5*38.1, 0.5*30 , 0.5*45 , 0.5*50, 0.75*25, 0.75*30, 0.75*38.1, 0.75*45, 0.75*50, 0.8*50, 0.5*100, 0.7*100 | Standard 3m, or any custom length |
Features
Standard colors, black, red, yellow, green, gray, blue, orange, etc
Excellent track and arc resistance
Excellent ozone resistance
High Dielectric strength
Workable in extremely low temperatures
Excellent conformability, excellent fusion
Excellent weathering characteristics
Applications
As an ove-wrap for protection of terminating high voltage cables against arcing and tracking. Suitable for submarine cables, large motors, sensors, motors, electrical connections in aircraft engines and insulation wrap electrical equipment.
Technical Data
| Performance | Typical data | Test Method |
| Thickness | 0.51mm | ASTM D1000-76 |
| Tensile Strength | 23N/10mm | ASTM D-1000 |
| Elongation | 640% | ASTMD -1000 |
| Dielectric Strength | 35KV/mm, air | ASTM D 1000 |
| 39KV/mm, oil | ||
| 33 KV/mm, oil at 180ºC ±5ºC | GB-T1695-2005 | |
| Fusion | Pass | |
| UV Resistance | Pass | ASTM D 4388 |
| Ozone Resistance | Pass | ASTM D 4388 |
| Xenon-arc exposure@1008h | Pass | ASTM D 4388 |
