1.6mm-1600mm High Quality PVC Plastic Plate Production Line
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
1990
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Plastic PP PVC Corrugated Pipe Machine Production LineNegotiableMOQ: 1 -
2020 PP Melt Blown Extrusion Machine For High QualityNegotiableMOQ: 1
-
900mm Width pp Meltblown Extrusion Making Machine Equipment for Medical Face MaskNegotiableMOQ: 1
-
Medical Meltblown Fabric Making Machine Production LineNegotiableMOQ: 1
-
ABS/PP/PE/PVC Sheet&board Production Line With Factory PriceNegotiableMOQ: 1
Products Description
PVC imitation marble slab production line can be used to produce PVC imitation marble slab. The production line is mainly composed of: conical twin-screw extruder, laminating device, mold, tractor, cutting machine, high-speed mixing unit, plastic crusher, mill, etc.

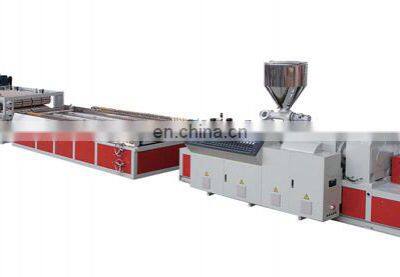

Extruder show
Details
Unit | Model | ||||
Mold | 800 | 1000 | 1500 | ||
Diameter | 100 | 105 | 120 | ||
L/D | 33/1 | 33/1 | 33/1 | ||
Sheet width | 700 | 900 | 1400 | ||
sheet thickness | 0.12-2.0 | 0.1-2.0 | 0.01-2.0 | ||
Speed | 1-25 | 1-25 | 1-25 | ||
Capacity | 150 | 220 | 250 | ||
Main power | 37 | 45 | 75 | ||
Auxiliary power(kw) | 4.5 | 5 | 5 | ||
Feature
1.The screw is designed with special mixing function and high plasticizing capacity.
2.The hanger-type die head adopts the double throttling design of the number of pages, which makes the thickness adjustment of the plate more precise.
3.Temperature control ±1 ℃ can control the plasticizing process and the thickness of the plate, and the flattening.
4.The three-roll calender adopts horizontal, vertical or 45° inclined type, which can be lifted and lowered freely.
5.The plate thickness control adopts screw adjustment and two-way adjustment of the pressing wheel to control the plate thickness.
6.The independently controlled roller temperature control system can control the temperature of the pressure roller to make the thickness of the plate uniform.
7.Slicing machine, precise plate length and quantity.
8.The winding table device adopts advanced torque motor, which can adjust the speed and winding tension at will.
9.Equipped with an automatic meter counter to set the product length.
2.The hanger-type die head adopts the double throttling design of the number of pages, which makes the thickness adjustment of the plate more precise.
3.Temperature control ±1 ℃ can control the plasticizing process and the thickness of the plate, and the flattening.
4.The three-roll calender adopts horizontal, vertical or 45° inclined type, which can be lifted and lowered freely.
5.The plate thickness control adopts screw adjustment and two-way adjustment of the pressing wheel to control the plate thickness.
6.The independently controlled roller temperature control system can control the temperature of the pressure roller to make the thickness of the plate uniform.
7.Slicing machine, precise plate length and quantity.
8.The winding table device adopts advanced torque motor, which can adjust the speed and winding tension at will.
9.Equipped with an automatic meter counter to set the product length.
FAQ
Q1. Any discount?
At first, the price we quote are all wholesale price. Meanwhile, our best price will be offered according to the order quantity.
Q2. Are you a manufacturer?
Yes, we are manufacturer/factory.
Q3. What about the warranty of the products?
1 years warranty, during the period, we will responsible for the amage due to the defects in manufacturing.
At first, the price we quote are all wholesale price. Meanwhile, our best price will be offered according to the order quantity.
Q2. Are you a manufacturer?
Yes, we are manufacturer/factory.
Q3. What about the warranty of the products?
1 years warranty, during the period, we will responsible for the amage due to the defects in manufacturing.
How to order
For choosing proper machine and saving your time, please read below questions carefully and send your inquiry soon , thanks .
1. what material will you use ?
2. What is the diameter (mm) of PE pipe ?
3. What is your power standard (V, Hz, Phase)?
4. Other requirements about the machine you want.
