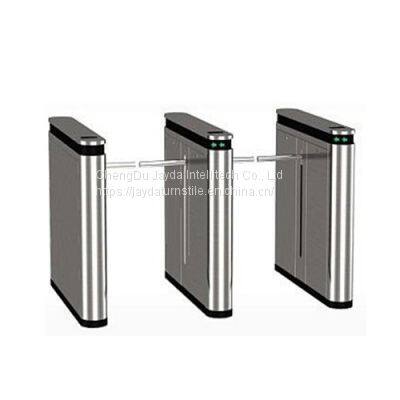

Slim Drop Arm Optical Turnstile/ Motorized Drop-arm Turnstile/ Waist-high Drop-arm Turnstile

• Slim drop arm optical turnstile, motorized drop-arm turnstile, waist-high drop-arm turnstile is designed for continued use and maintenance-free performance


•


• Drop arm optical turnstile JDYYZ-4 is an effecient contactless crowd control solution for upscale corporate lobbies, high rise building entrances, luxury apartment complexes, universities, and anywhere autonomous entry and aesthetics are important. It adopts high-quality DC brushless motor and advanced positioning technology, ensuring the movement of security turnstile in a fast, accurate, stable and quiete way with low-noise, low-power consumption, and a longer service life; In addition, drop-arm optical turnstile JDYZZ-4 provides single directional or bi-directional access and easily integrate any access control systems or device with dry contact output.




Features
1. Slim cabinet allow installation in compact spaces
2. Cabinet and lid options to blend with any environment
3. Drop arms retract quickly and smoothly to allow passage
4. Very intuitive for users and attendants
5. Simplified integration to access control and visitor management systems
6. Quick, precise and reliable arm movement – no need for constant adjustments
7. Multiple inputs to allow access control systems to implement operational mode changes
8. Barrier easily pushes open manually in case of power failure
9. Designed for continued use and maintenance-free performance
10. Multiple Access Modes (Card in/card out, free exit, and lane closed modes for either direction)

Applications
Upscale corporate lobbies
High rise building entrances
Luxury apartment complexes
Universities
Data centres
Sensitive sites

Parameters

Drop Arm Optical Turnstile Design

Drop Arm Optical Turnstile Dimension

Drop Arm Optical Turnstile System Diagram

Project Cases for Drop Arm Optical Turnstile

How does a drop arm optical turnstile works?
Drop arm optical turnstile has a single passage barring arm which fully drop into recesses in the cabinet when opening and lift back into position to block the passage when closing. It is equipped with an array of sensors which provide a reasonably effective deterrent against multiple entries, and an alarm will sound when more than one person attempts to pass at a time or tries to come in the wrong direction. Drop arm optical turnstile usually integrates various access control system to customize turnstile access control systems, by which the pedestrians shows their valid credential before entry, the passage will be reased for free access, and automatically close after passage or out of passing time if pedestrians do not pass within pre-set time. In case of power failure or in emergency, it will automatic releases the passage for free access.

Characteristics of a drop arm optical turnstile entrance system
1.Automatic Barrier Operation: drop arm optical turnstile is a touchless turnstile equipped with DC motors which automatically drive barriers out of the way at requested direction to grant hand-free access, As hand-free turnstile, it must be able to function without any physical user input, and automatically open and close without any manual operation by the pedestrians
2.Proper Social Distancing: Though drop arm optical turnstile operates completely autonomously, it is usually for the organizations with turnstile access control systems at their entryways to have a security guard for providing assistance when necessary, it is crucial to ensure the employs are stationed a certain distance away from the touchless turnstile lane to maintain proper social distance.
3.Contactless Credential Checking: Although drop arm optical turnstile is completely contactless device, it is stile required to be integrated with a touch-free credential checking system to truly provide a hands-free entry experience. Some of these systems include iris scanners, facial recognition software, temperature sensors, and proximity scanners.

Can drop arm optical turnstile be integrated with 3rd party access control systems ?
Off course,  drop arm optical turnstile is comptiable with a wide variety of access control systems by dry contact. Card pass, fingerprint / handprint reader, face recognition, barcode reader, thermal camera and token applications can integrate with such access control turnstiles.

What will happen when power off and in emergency situation?
Drop arm optical turnstile instantly automatically unlocks for free passage under emergency situations (power outages, fire, etc)

Can drop arm optical turnstile be used indoor and outdoor?
Off course, drop arm optical turnstile is made for indoor or outdoor situations. For outdoor applications, there is should be shelter above.

Can drop arm optical turnstile be operated manually or remotely?
Drop arm optical turnstile is to be operated by the user at the turnstile. You can have a person who monitors the security turnstile from the surveillance terminal.
