Product Description

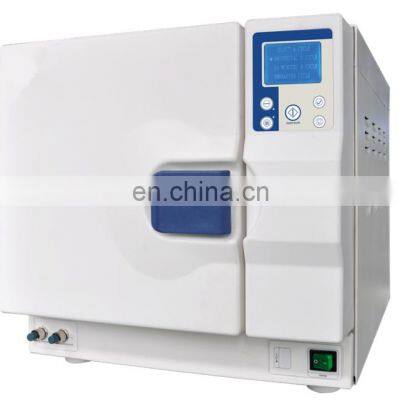

12L-B-LED diagram of runyes autoclave machine with best price
12L-B-LED
Feature
·Microcomputer control system for automatic check; imported Motorola sensor for precise control
·With precise control, the temperature can be controlled within ± 0.5 during sterilizing
·Friendly operation interface, simply and easy
·B&D test, vacuum test, convenient for machine behave test
·Automatical record of the time of sterilization beginning &end. Clean the inner pipe automatically for avoiding jam after every 100 times of cycles.
·The dry time is adjustable according to your will
·Omron button, work well for 100 thousands
·The machine is dual-purpose, not only for instruments,but also for cotton, on dry condition
·With a LCD display you can see the date and curve of sterilization process clearly
·Adjustable date&time&language mode according to your will
·Adopt imported silicon tube, high pressure and high temperature resistant
·Opened reservoir, convenient for cleaning, avoiding chloramphenicol alive
·Alarmed automatically when the storage tank is empty and the waster tank is full so that you don't need to worry for this problem
·Water quality sensor can test the quality of distilled water, reduce the failure rate
·One-piece chamber is made of imported 304 stainless steel
·Safety valve ensure the chamber can release the pressure safely at emergency
·Double doors locking-system, mechanical lock with electrical lock,the machine can't open until the pressure turn 0
·Multi-safety protection system, which can ensure the safety of the operator
·Air-conditional heat removal system, prevent the machine from over-heating
·Adopt the ABS plastic, whole model produce
·Imported Italy water pump
·Imported two-head vacuum pump with leather cup, vacuum more completely
·The machine plane can adjust by adjustable pad, provide a gradienter for free
·Optional printer, with a internal USB module as standard collocation to record the sterilization process
Product Details
Voltage |
AC 220V +10% |
Frequency |
50/60Hz |
Wire plug |
GB 3 cores/EN3 cores |
Max Hp |
1800VA |
Electric current |
10A |
Physical Space |
15L/12L |
Class |
European Class B standard |
Sterilizing temperature |
121C,134C |
Special sterilization |
Kill active HV,HBV,BSE and spore |
Dry procedure
|
Strong vacuum drying,the residual humidity< 0.2% |
Display |
Digital display |
Test |
Bowie&Dick,Leak |
Safety |
Safety valve, Automatic check |
Sterilizing record
|
There is a micro-printer optional, and a standard USB connector optional for sterilizing record |
Water supply system
|
Two opened Reservoirs(3.5L fresh water and 5 liter waste water reservoirs), easy for sterilization and clean |
Water quality detection
|
Detect whether water quality meet the requirement |
Clean procedure |
Automatic clean inside pipe and steam generator |
Chamber size |
230mm*360mm/200mm*368mm |
Net weight |
44Kg/42Kg |
Instrument containers |
5 levels with 3 trays |
Prompt
1. Please place the sterilization on a plane place , which could adjust the height by adjusting foot pad
2. Please adopt distilled water to extend the service life
3. Don't block the heat removal system on the surface of sterilization
4. Please put the instruments on the tray not touching one another allowing space for steam to pass through
5. Please empty the used water tank frequently. Usually it need empty when the clean water in the reservoir is empty.
6. Please ensure the door handle is closed tightly
7. Never try to open the chamber door if and when the pressure display doesn't show "0.0"
8. Please cut off the power and cool down the auto clave before maintenance
9. Don't drag the machine while moving
10. Power connection must be grounded properly
11. Must be provided enough power. (23L:2300VA/18L:1800VA)
12. While the outside temperature is too low, please pre-heating the machine without instruments for 30 minutes
before sterilize
13. Don't cut off the power to stop the machine directly. If you need stop the machine directly, please press the
"START/STOP" button for 3 seconds.
14. The picture in the instruction is for reference only.
