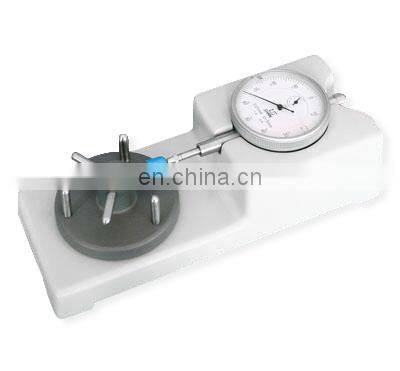

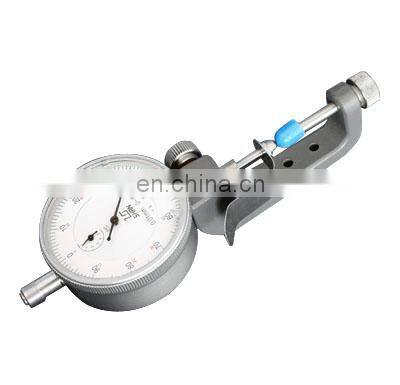

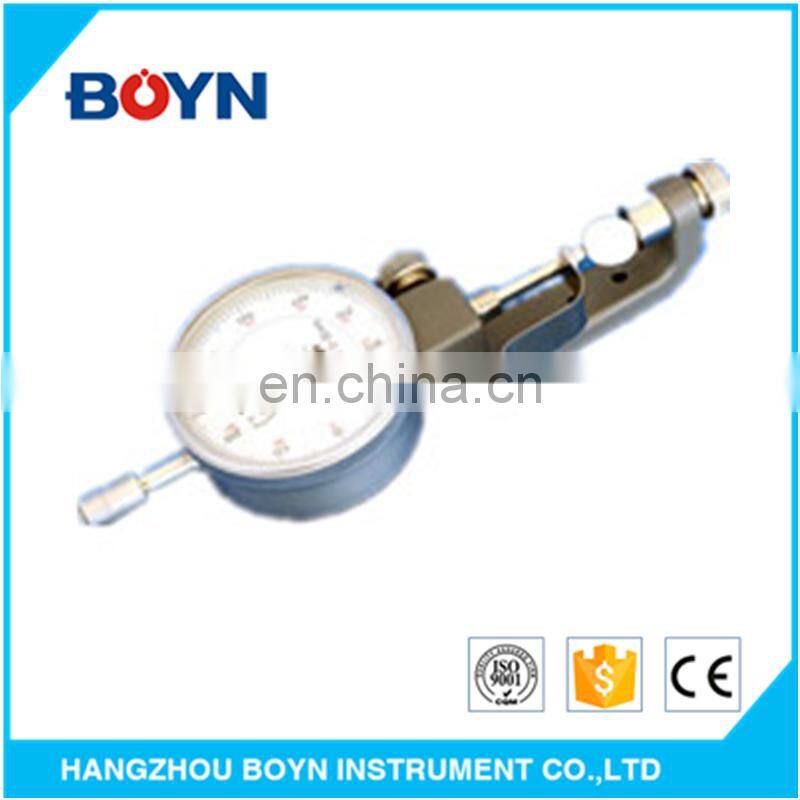

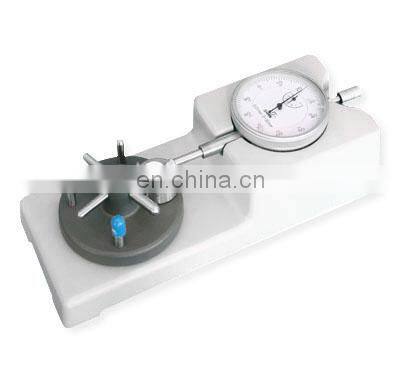

HD-4 tablet thickness tester

HD-4 tablet thickness tester

HD-4

HD series of instruments are used for detecting thickness of tablet and capsule.

Applicable standard

Corporate standard(Thickness tester) Q/12XQ0194-2010

Features:

1.Used for measuring thickness of peak and wall of capsule & diameter of tablet and pill.

2.High-accuracy test with the most precise, high-quality homemade centigrade meter.

Specifications:

1.Test range (0~30)mm

2.Test accuracy ±0.01mm

3.Type of capsule 00,0,1,2,3,4 type capsule

4.Range of test tablet 0~30mm

5.Dimension (160×60×50)mm3

HD-1 THICKNESS TESTER

HD series of instruments are used for detecting thickness of tablet and capsule.

Applicable standard

Corporate standard(Thickness tester) Q/12XQ0194-2010

Features:

1.Used for measuring thickness of peak and wall of capsule.

2.High-accuracy test with the most precise, high-quality homemade centigrade meter.

Specifications:

1.Test range (0~5)mm

2.Test accuracy ±0.01mm

3.Type of capsule 00,0,1,2,3,4 type capsule

4.Dimension (200×80×50)mm3

HD-2 THICKNESS TESTER

HD series of instruments are used for detecting thickness of tablet and capsule.

Applicable standard

Corporate standard(Thickness tester) Q/12XQ0194-2010

Features:

1.Used for measuring thickness of peak and wall of capsule & diameter of tablet and pill.

2.High-accuracy test with the most precise, high-quality homemade centigrade meter.

Specifications:

1.Test range (0~30)mm

2.Test accuracy ±0.01mm

3.Type of capsule 00,0,1,2,3,4 type capsule

4.Range of test tablet 0~30mm

5.Dimension (200×80×50)mm3

HD-3 THICKNESS TESTER

HD series of instruments are used for detecting hickness of tablet and capsule.

Applicable standard

Corporate standard(Thickness tester) Q/12XQ0194-2010

Features:

1.Used for measuring thickness of peak and wall of capsule.

2.High-accuracy test with the most precise, high-quality homemade centigrade meter.

Specifications:

1.Test range (0~5)mm

2.Test accuracy ±0.01mm

3.Type of capsule 00,0,1,2,3,4 type capsule

4.Dimension (160×60×50)mm3
