-86C freezer
LTF-86V588
1.CH refrigerant , save energy up to 50%.
2.Second generation of VIP making the cabinet thinner and lighter.
3.Rapid cooling at 38℃ ambient temperature.
4.Advanced mute technology.
5.Automatic alarm
Purpose
Ideal for long term preservation of virus,germs,vaccines,biological tissues and organs, special food, medicines, reagents,etc.Suitable for scientific research instituations, industries of biomedical, electronic, chemical,machining and pelagic fishery.
User friendly design
Wthite board for record
Shelves for document storage
Double locks design
Derived data with USB port
Handy maintenance(easy-removed dust filter)
Safety Guarantee
Functional alarm system with audible and visible
Remote alarm connector
Constantly alarm after power off
Keyboard lockable(password protection)
Product Features
High efficiency and energy saving up to 50% by CH cooling system
High stability with main double cascade cooling system
Intelligent control with touchscreen, temperature curve,alarm information record and inquire, user mangement mode,auto diagnosis of malfuction.
Optimized design for maximum storage of bio samples.
Second generation of vacuum insulation panel-VIP II.

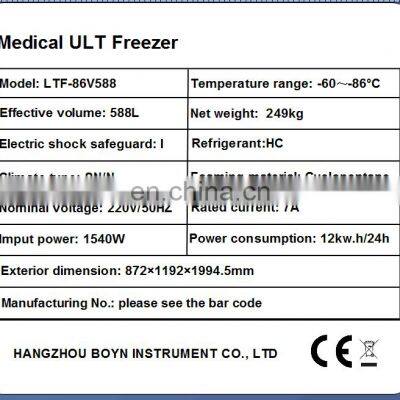

Specification :
Basic | Model | LTF-86V588 |
Technical Parameter | Door | 2 |
Shelves | Shelves | |
Cooling type (Forced air cooling/direct cooling) | Direct cooling | |
Defrost( automatic/manual) | Manual | |
Refrigerant | HC | |
Power comsuption(kWh/24h) | 12 | |
Noise level(db) | 53 | |
Temperature | Ambient temperature(℃) | 10~32℃ |
Temperature range(℃) | -60~-86℃ | |
Controll | Compressor brand/Qty | Secop/2 |
Sensor type | PTC | |
Temperature controller | Electronic temperature controller | |
Display | LCD | |
Electronic parameter | Voltage/Frequency | 220/50Hz |
Apparent power | 1540W | |
Power(W) | 815W | |
Electricity (A) | 7 | |
Size | Capacity(L/cu.ft) | 588 |
Net/Gross weight (KG) | 249/275 | |
Product size(Width*Depth*Hight)mm | 891×1155×1994.5 | |
Inner size(Width*Depth*Hight)mm | 606×738×1310 | |
Packing size(Width*Depth*Hight)mm | 950×1118×2185 | |
Alarm System | High/low temperature | √ |
Power off | √ | |
Abnormal voltage | √ | |
Sensor malfunction | √ | |
Filter screen check | √ | |
Temperature controller malfunction | √ | |
Backup battery malfunction | √ | |
Condenser malfunction | √ | |
Ambient temperature | √ | |
Door ajar | √ | |
Accessories | Caster | / |
Foot | √ | |
Test hole/Diameter | 1/25MM | |
USB Port | YES | |
Remote alarm | YES | |
Temperature recorder | Optional | |
RS232/485 port | YES | |
CO2 backup system | Optional | |
LN2 backup system | Optional |
