Compound Digital LCD display 9 inches Biological Microscope,DMS -653
Description

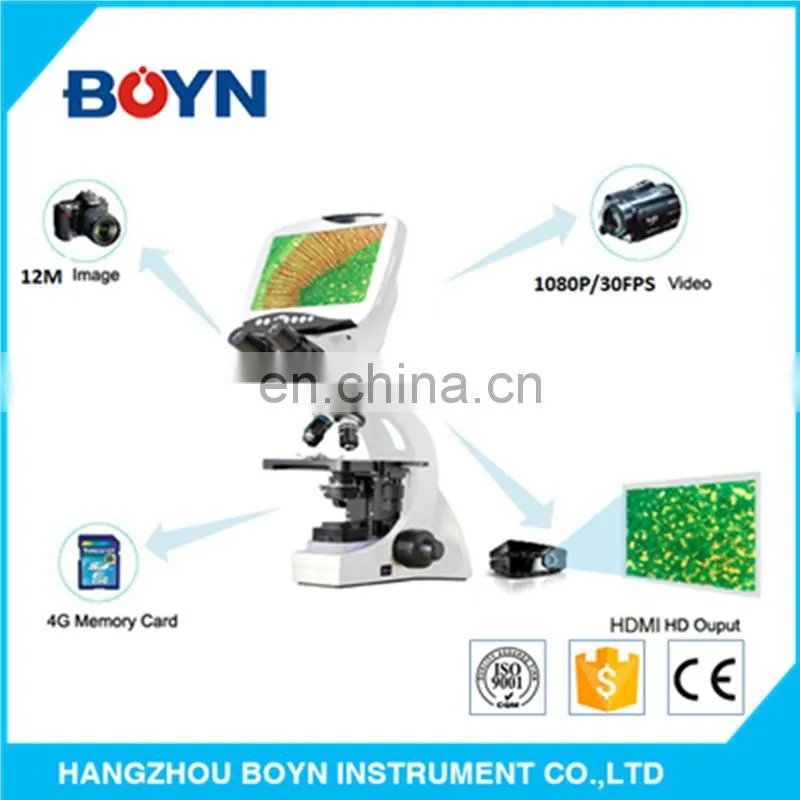

1. 9" HD Screen with 1280*800 resolution.
2. Observation with both LCD screen and eyepiece
3. 12M image and 1080P/30fps HD video could be stored on memory card anytime.
4. High Definition Multimedia Interface HD output to connect to projector or monitor for analysis.
5. 4X, 10X, 40X, 100X Objectives.
6. LED illumination with long life expectancy.
7. It’s suitable to study microorganisms, cells, bacteria, and tissue.
8. It’s widely used in universities, research institutions, disease control and agriculture and pastoral sector.
DMS-653 series Compound Digital LCD Biological Microscope Feature and Parameter
|
Digital Parts |
Model |
DMS-653 |
|
Camera |
12 Megapixels |
|
|
Screen Resolution |
1280X800 |
|
|
Video Resolution |
1080P/30FPS |
|
|
LCD Screen |
9 HD Inches LCD Screen, Resolution is 1280X 800 |
|
|
Data Output |
High Definition Multimedia Interface HD Output |
|
|
Menu Language |
Nine Languages (English,Germany,French,Spanish,Russia,Janpanese,Korean,Latin,Arabic) |
|
|
Measurement & Position |
Coordinates and Arrow (Black,White,Red,Green,Blue) |
|
|
Storage |
SD Card |
|
|
Date Mode |
Year, Month, Day, Hour, Minute |
|
|
Optical Parts |
Viewing Head |
Compensation Free Binocular Head, Inclined 30°, Interpupillary Distance 55-75mm |
|
Eyepiece |
Wide Field Eyepiece WF10×/ 18mm |
|
|
Objective |
Infinity Achromatic 4X,10X,40X,100X |
|
|
Nosepiece |
Quadruple |
|
|
Stage |
Double Layers Mechanical Stage 140mmX140mm, Moving Range:75mmX50mm |
|
|
Focusing System |
Coaxial Coarse/Fine Focus System with Tension Adjustable, Limit Stopper ,Range 24mm, Fine Division 0.002mm |
|
|
Illumination |
3.7V,3W LED Lamp, Brightness Adjustable |
|
|
Condenser |
NA1.25 Abbe Condenser with Iris Diaphragm & Filter,Rack & Pinion Adjustment |
|
|
Filter |
Blue and Green Filter |
|
|
Optional Parts |
Eyepiece |
Wide Field Eyepiece WF16×/ 11mm |
|
Dark Field Attachment |
Dark Field Condenser (Dry) NA0.7-0.9 |
|
|
Dark Field Condenser (Wet) NA1.25-1.36 |
