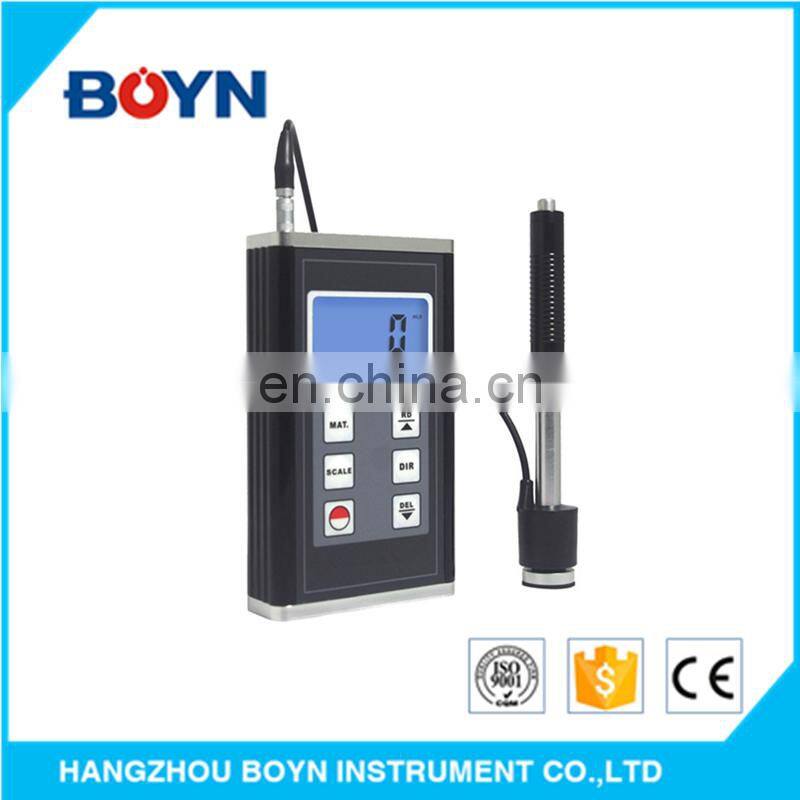

HM-6580 Palm size leeb portable metal hardness tester
Spec:
Measure the hardness of metal workpiece. Applicable to Die cavity of molds, Inspection of bearing and other mass produced parts on a production line.
Features
* Palm size for narrow space.
* Test at any angle, even upside down.
* Direct display of hardness scales HRB, HRC, HV, HB, HS,HL.
* Large memory could store 50 groups including single measured value, impact direction, material and hardness scale etc.
* User recalibration function allowed.
* Manual or automatic shut down.
* Low battery indication.
* Use USB/RS-232 data output to connect with PC.
* Provide blue tooth data output choice.
Material Selection
|
Material |
Converting Ranges |
||||||
|
HL |
HRC |
HRB |
HB |
HS |
HV |
||
|
30D² |
10D² |
||||||
|
Steel & Cast St. |
300~900 |
20.0~68.0 |
38.4~99.5 |
80~647 |
32.5~99.5 |
80~940 |
|
|
C.W.Tool Steel |
300~840 |
20.4~67.1 |
80~898 |
||||
|
ST.Steel |
300~800 |
19.6~62.4 |
46.5~101.7 |
85~655 |
80~802 |
||
|
Gray Cast Iron |
360~650 |
93~334 |
|||||
|
Nodular Cast Iron |
400~660 |
131~387 |
|||||
|
Cast Aluminum |
174~560 |
20~159 |
|||||
|
Brass |
200~550 |
13.5~95.3 |
40~173 |
||||
|
Bronze |
300~700 |
60~290 |
|||||
|
Copper |
200~690 |
45~315 |
|||||
Specifications
|
Display |
LCD |
|
|
Materials |
9 different common materials(Steel&Cast Steel,C.W.Tool Steel,Stainless Steel,Gray Cast Iron,Nodular Cast Iron,Cast Aluminum,Brass,Bronze,Copper) |
|
|
Measuring Range |
170~960(HLD) |
|
|
Accuracy |
Display Error±0.8% |
|
|
Repeatability |
±0.6% |
|
|
Conversion |
HL-HRC-HRB-HB-HV-HSD |
|
|
Memory |
50Data Can Be Stored And Re-readable |
|
|
Impact device |
Probe D,Weight:75g |
|
|
Storage Temperature |
-30~60ºC |
|
|
Operating Conditions |
Temperature |
-10~50ºC |
|
Humidity |
<90%RH |
|
|
Power Supply |
2X1.5V AA(UM-3)Battery |
|
|
Dimensions |
130x76x32mm |
|
|
Weight |
340g(Not Including Batteries) |
|
