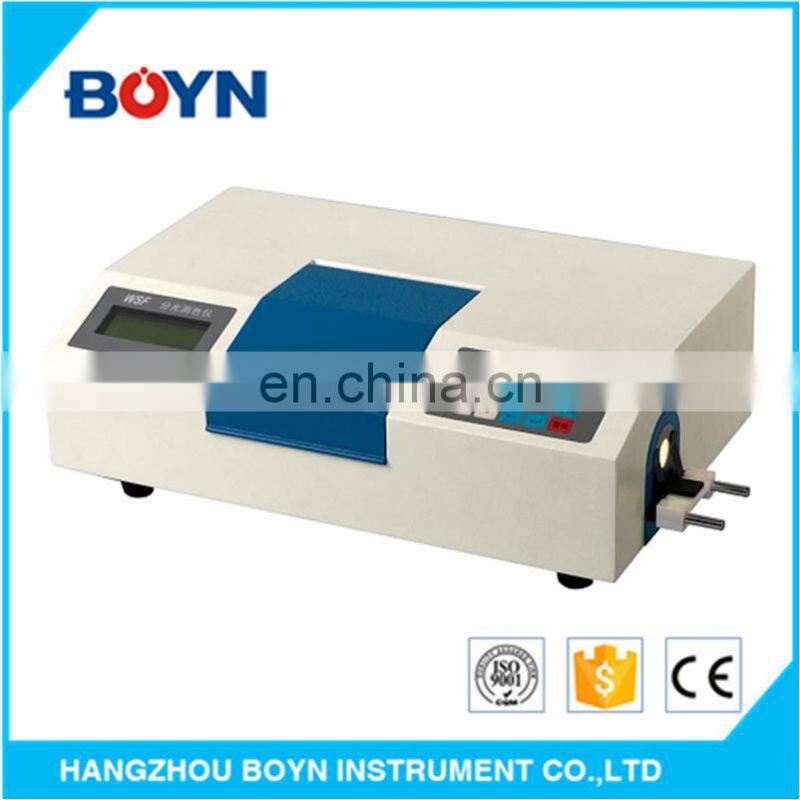

WSF Spectroscopical Color photometer
Characteristics
Wide application range and easy-to-operate feature;
Measure reflection color and transmission color of objects and can test chromaticity, whiteness and color difference between two objects or two kinds of liquid;
Only accept d/0 lighting specified by CIE;
Display reflectance and transmittance of objects or liquid within the scope of visible light wave (400nm-700nm), and generate a spectral curve on reflectance and transmittance of objects or liquid, which greatly facilitates analysis on object color;
Wide used in such industries as textile, dye, printing and dyeing, coating, paint, paper making, building materials, food, and printing.
Specifications
|
Lighting conditions: |
d/0 |
|
Spectrum conditions: |
overall response is equivalent to tristimulus values X, Y, and Z calculated in corresponding functions under GB3978 standard illuminant D65, A, C and 10°, 2° view of field. |
|
Measurement window: |
Ø20mm |
|
Wavelength range: |
400nm~700nm; |
|
Accuracy: |
±2nm |
|
Accuracy of spectrum transmittance (%): |
±1.5 |
|
Repeatability: |
σ u (Y) ≤0.5, σ u (x),σ u (y) ≤0.003 |
|
Instrument stability: |
Y≤0.6 |
|
Accuracy: |
Y≤2, x,y≤0.02 |
|
Palette system: |
Color: X, Y, Z; Y, x, y; L*, a*, b*; L, a, b; L*, u*, v*; L*, c*, h* |
