BNHMA-AT Series Infrared Moisture Analyzer

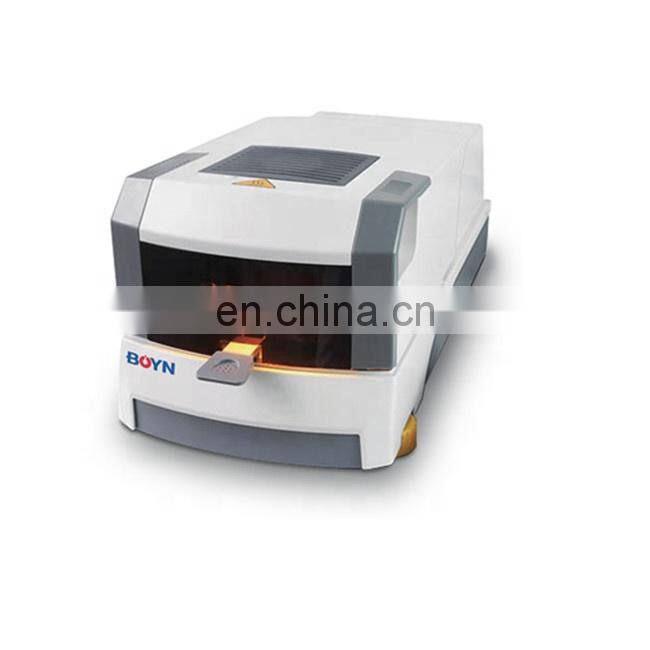

BNHMA-AT Series Infrared Moisture Analyzer photo-1

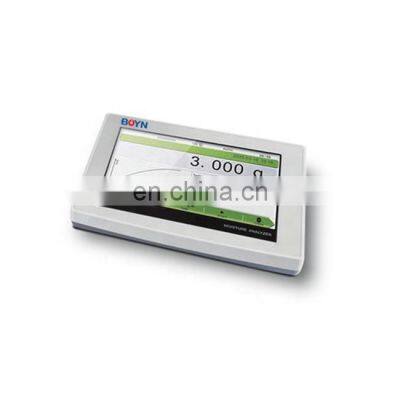

BNHMA-AT Series Infrared Moisture Analyzer photo-2
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
1994
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Product Description
Product features: Automatic open the heating chamber
7 inch LCD touch screen,moisture analysis curve,
moisture content%/dry weight %/dry weight direct display
Halogen light heating
40-230℃ heating temperature range
The test height 35cm
The window can look the test sample
20sets data storage and program setting

Product Paramenters
Mode
BNHMA-
D110AT-1
BNHMA-
D110ATW-1
BNHMA-
D210AT-1
BNHMA-
D210ATW-1
Range (g)
110g
210g
Readability(g)
0.001g
0.001g
Operating Temp
5℃-35℃
Pan Size
Ø100mm
Heat Source
Halogen Lamp
Temp. Sensor
PT 100
Temp. Range
40℃-230℃
Temp. Resolution
1℃
Moisture Range
0.00%-100.00%
Moisture Readability
0.01%
Dry Residual Range
100.00%-0.00%
Dry Residual Readability
0.01%
ATRO
100%-999%
ATRO
0%-999%
Temp Setting
40℃-230℃ By 1℃ Step
Time Setting
1-99min by 10 s
Data Storage
20
Heating program Storage
20
Heater
220V ±15% 50HZ/ 110V±15% 60HZ 400W
Balance
Input: 220V 50HZ/110V 60HZ Output:9V
Machine
Input: 220V 50HZ/110V 60HZ Output:24V Dual-drive
Host Dimension
215X195X415mm
Indicator Dimension
200X75X135mm
Operation Height
275mm
The Chamber Height
35mm
Display
7 inch touch screen
Interface
RS232/RJ45/USB
Communication Mode
Cable
Wireless
Cable
Wireless
Rechargeable Battery
N/A
10,000mAh
N/A
10,000mAh
Calibration
External Calibration
Function expansion
Customized
