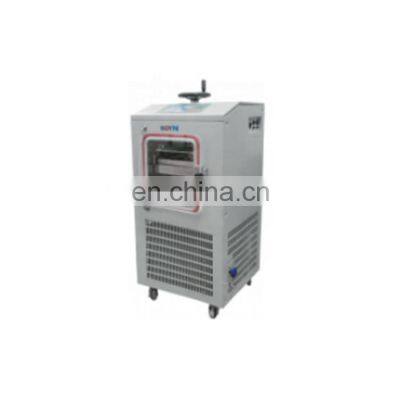

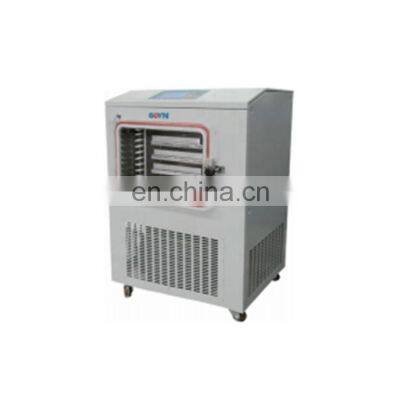

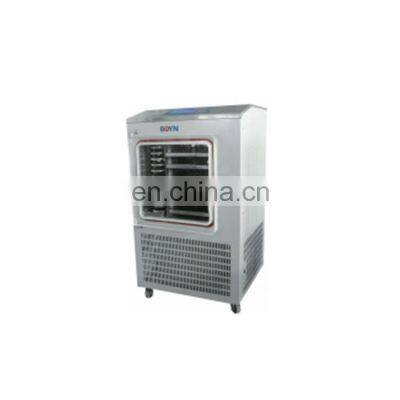

High Quality Electric Heating Pilot Freeze Dryer for Lab
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
- Best Sell Laboratory Silicon Oil Heating Pilot Freeze Dryer
- Cheaper Silicon Oil Heating High Quality Pilot Freeze Dryer for Lab
- BNIHS Series High Quality Bacti-cinerator Sterilizer Infrared Heat Sterilizer
- UCB-D Series 0.8-30L Portable ultrasonic cleaner
- UCB-DA Series Ultrasonic Cleaner with heater & Adjustable Ultrasonic Power
- UCB-DAD 2-30L Series Ultrasonic cleaning Bath
Product Description
Product Description
Product features:
The company's patented product square warehouse in situ vacuum freeze dryer, pre-freezing, drying in situ completed, easy tooperate, good drying effect.
The drying chamber door is made of ACRYLIC material, which is colorless ,transparent and can observe the whole process offreeze-drying
The inflflatable (drainage) valve adopts safety diaphragm valve, which can connect inert gas source, fifill inert gas after
drying, and prolong the shelf life of materials
Specialized gas diversion technology, uniform cold trap ice capture, ice capture ability International well-known brand
compressor, high effificiency and energy saving, long service life, low noise.
The patented technology of partition and the fuzzy control technology of partition temperature have the advantages of smalltemperature difference of shelf, high precision of temperature control and even drying effect.
Powerful sensor calibration function ensures long-term use of measurement accuracy.
7-inch real-color industry embedded touch screen + SH-HPSC-ll modular controller, high control accuracy, stable and reliableperformance.
The specially designed FD-EMB control system can preserve hundreds of formulations, each of which contains 50 temperature control sections, so as to improve the process optimization rate
Intelligent data recording system can record and display the temperature curve of cold trap, sample temperature curve and vacuumcurve in real time. The derived data can be browsed and printed by computer and operated in a variety of ways to facilitate processoptimization and drying effect verifification.
Flexible manual + automatic control mode, manual for exploring process, automatic for batch production.
Real-time alarm display and historical alarm inquiry functions facilitate fault diagnosis and equipment maintenance.
User level and password can be set, and operation management can be decentralized
The drying chamber door is made of ACRYLIC material, which is colorless ,transparent and can observe the whole process offreeze-drying
The inflflatable (drainage) valve adopts safety diaphragm valve, which can connect inert gas source, fifill inert gas after
drying, and prolong the shelf life of materials
Specialized gas diversion technology, uniform cold trap ice capture, ice capture ability International well-known brand
compressor, high effificiency and energy saving, long service life, low noise.
The patented technology of partition and the fuzzy control technology of partition temperature have the advantages of smalltemperature difference of shelf, high precision of temperature control and even drying effect.
Powerful sensor calibration function ensures long-term use of measurement accuracy.
7-inch real-color industry embedded touch screen + SH-HPSC-ll modular controller, high control accuracy, stable and reliableperformance.
The specially designed FD-EMB control system can preserve hundreds of formulations, each of which contains 50 temperature control sections, so as to improve the process optimization rate
Intelligent data recording system can record and display the temperature curve of cold trap, sample temperature curve and vacuumcurve in real time. The derived data can be browsed and printed by computer and operated in a variety of ways to facilitate processoptimization and drying effect verifification.
Flexible manual + automatic control mode, manual for exploring process, automatic for batch production.
Real-time alarm display and historical alarm inquiry functions facilitate fault diagnosis and equipment maintenance.
User level and password can be set, and operation management can be decentralized
Product Paramenters

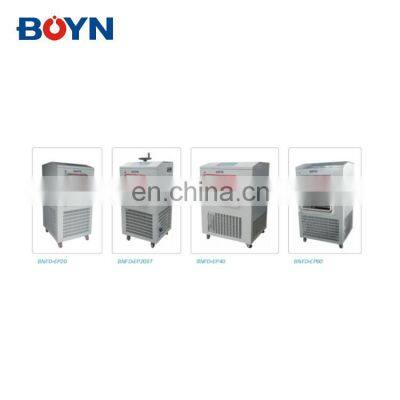

Model | BNFD-EP20 | BNFD-EP20ST | BNFD-EP40 | BNFD-EP60 | |||
Configuration | Standard type | Standard Top Press Type | Standard type | Standard type | |||
Freeze drying area | 0.2㎡ | 0.1㎡ | 0.4㎡ | 0.6㎡ | |||
Cold trap temperature | <-56℃(not-loading), option<-80℃(no-loading) | ||||||
Vacuum degree | ≤5Pa (no-loading) | ||||||
Shelf temperature range | -50℃~+70℃(no-loading) | ||||||
Ice collecting capacity | ≥6 kg/24h | ≥8 kg/24h | ≥10 kg/24h | ||||
Tray dimension | 265X395 mm | 265X395 mm | 295X335 mm | 295X335 mm | |||
Quantity of tray | 2pcs | 1pc | 4pcs | 6pcs | |||
Shelf size | 270x400 mm | 270x400 mm | 300x340 mm | 300x340 mm | |||
Shelf spacing | 70 mm | 50 mm | 50 mm | ||||
Power | 2KW | 2.7KW | 4.5KW | ||||
Net Weight | 210 kg | 280 kg | 450 kg | ||||
Overall dimensions | 655×640×1200 mm | 890×660×1210 mm | 890x670x1470 mm | ||||
Material capacity (Thickness10mm) | 2 L | 1 L | 4 L | 6 L | |||
Vials loaded quantity | / | 777pcs of Φ12mm | / | / | |||
/ | 434pcs of Φ16mm | / | / | ||||
/ | 220pcs of Φ22mm | / | / | ||||
Defrosting model | Natural defrosting (Option electric defrosting) | ||||||
Cooling model | Fan cooling | ||||||
Power Supply | 220V 50/60HZ | 380V 50/60HZ |
