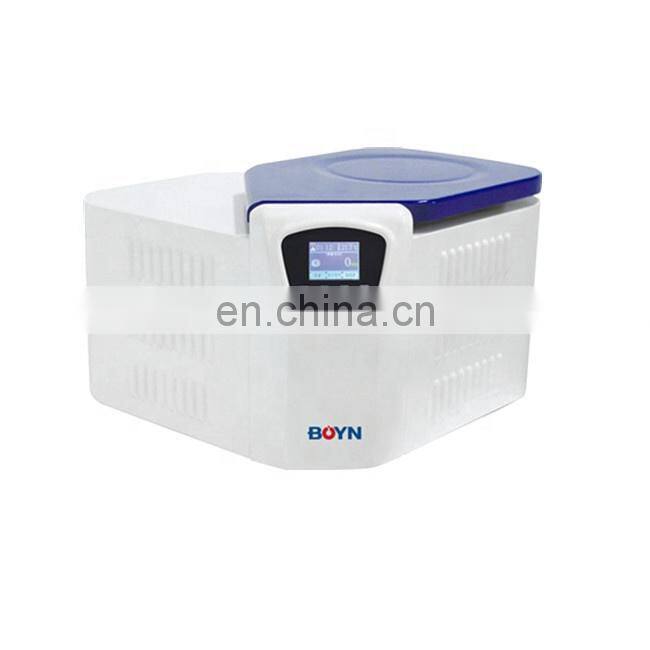

BC-HR16K4 Benchtop Refrigerated High Speed Centrifuge
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
Product Description
Product Description
Product features:
It adopts Infifineon's single-chip microcomputer and Infifineon's drive module, cooperates with independent control board and high-torque AC/DC brushless motor.
R404a refrigerant, wide temperature range: -20°C- 40°C, and can be set during the operation of the centrifuge; it has pre-cooling function and standby cooling function and defrosting function.
Over-speed and over-temperature and unbalance and under-pressure and over-pressure detection, three-stage damping and shock absorption,
TFT-LCD color display
Bio-safety airtight angle rotor adopts silicone rubber integral sealing ring (EU RoHS 2015/863), which can avoid aerosol spillage and fully guarantee the
safety of workers and laboratory environment.
Rear austenitic 304 stainless steel centrifugal chamber with all-steel sprayed plastic shell, one-piece stamped steel front face and three-layer steel
protective cover, ensuring the safety of workers and laboratories. .
Mute electromechanical motor door lock system, once close the lid, the door lock system will be triggered.
10 speed acceleration and 10 speed reduction rate control, can store 100 sets of user-defifined programs.
R404a refrigerant, wide temperature range: -20°C- 40°C, and can be set during the operation of the centrifuge; it has pre-cooling function and standby cooling function and defrosting function.
Over-speed and over-temperature and unbalance and under-pressure and over-pressure detection, three-stage damping and shock absorption,
TFT-LCD color display
Bio-safety airtight angle rotor adopts silicone rubber integral sealing ring (EU RoHS 2015/863), which can avoid aerosol spillage and fully guarantee the
safety of workers and laboratory environment.
Rear austenitic 304 stainless steel centrifugal chamber with all-steel sprayed plastic shell, one-piece stamped steel front face and three-layer steel
protective cover, ensuring the safety of workers and laboratories. .
Mute electromechanical motor door lock system, once close the lid, the door lock system will be triggered.
10 speed acceleration and 10 speed reduction rate control, can store 100 sets of user-defifined programs.
Product Paramenters
Model | BC-HR16K4 | |||
Max Speed | 16800rpm | |||
Max Rcf | 19470xg | |||
Max Capacity | 4×100 ml | |||
Default rotor | 12×1.5/2.0 ml | |||
Speed Accuracy | ±50r/min | |||
Cooling System | Fluorine-free refrigeration compressor | |||
unit and control valve(R404a) | ||||
Temperature setting Range | -20°C~40°C | |||
Temperature Accuracy | ±1°C | |||
Running program | 100 | |||
Time Range | 1-99h59min | |||
Rotor recognition | Auto | |||
Noise | ≤60 dB | |||
Electrical supply | AV220V 50Hz | |||
power | 1.5 Kw | |||
Size(L×W×H) | 710×630×350 mm | |||
weight | 75 Kg | |||
Order No | Rotor | Max Volume | Max speed(rpm) | Max RCF(xg) |

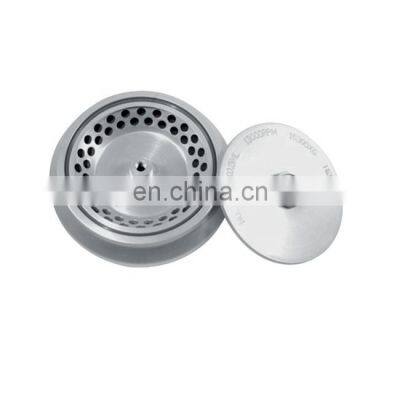

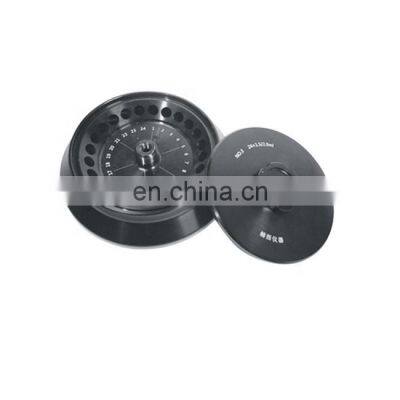

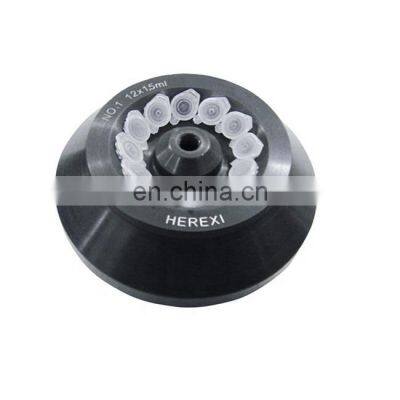

A-1 | Angle rotor | 12×1.5/2.0ml | 16800 | 19470 |
A-2 | Bio-isolated sealed angle rotor | 48×0.5ml | 12000 | 12357 |
A-3 | Angle rotor | 18×1.5ml | 14000 | 15777 |
A-4 | Bio-isolated sealed angle rotor | 24×1.5/2.0ml | 14000 | 18220 |
A-5 | Angle rotor | 30×1.5ml | 11000 | 12851 |
A-6 | Angle rotor | 48×1.5ml | 13000 | 18138 |
A-7 | Bio-isolated sealed angle rotor | 10×5ml | 13000 | 11660 |
A-8 | Bio-isolated sealed angle rotor | 8×7ml | 14000 | 12271 |
A-9 | Bio-isolated sealed angle rotor | 12×10ml/5ml | 12000 | 13820 |
A-10 | Bio-isolated sealed angle rotor | 8×15ml(conical bottom) | 12000 | 14830 |
A-11 | Bio-isolated sealed angle rotor | 8×15ml(round bottom) | 12000 | 14830 |
A-12 | Angle rotor | 12×10ml(through-hole) | 6000 | 3740 |
A-13 | Angle rotor | 6×50ml(through-hole) | 6000 | 3670 |
A-14 | Bio-isolated sealed angle rotor | 6×50ml(round bottom) | 11000 | 11610 |
A-15 | Bio-isolated sealed angle rotor | 6×50ml(conical bottom) | 11000 | 12700 |
A-16 | Bio-isolated sealed angle rotor | 4×100ml | 9000 | 8500 |

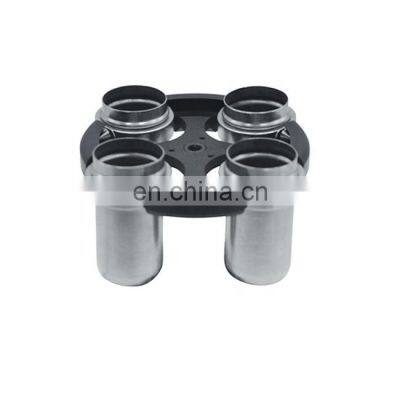

S-17 | Swing rotor | 12×10ml | 4000 | 2360 |
S-18 | Swing rotor | 4×50ml | 4000 | 2360 |
S-19 | Swing rotor | 4×100ml | 4000 | 2490 |
M-20 | Micro-plate rotor | 2×2×48hole | 3000 | 1120 |
