Home > Products > Laboratory Universal Equipments > BC-HR20K Benchtop Refrigerated High Speed Centrifuge

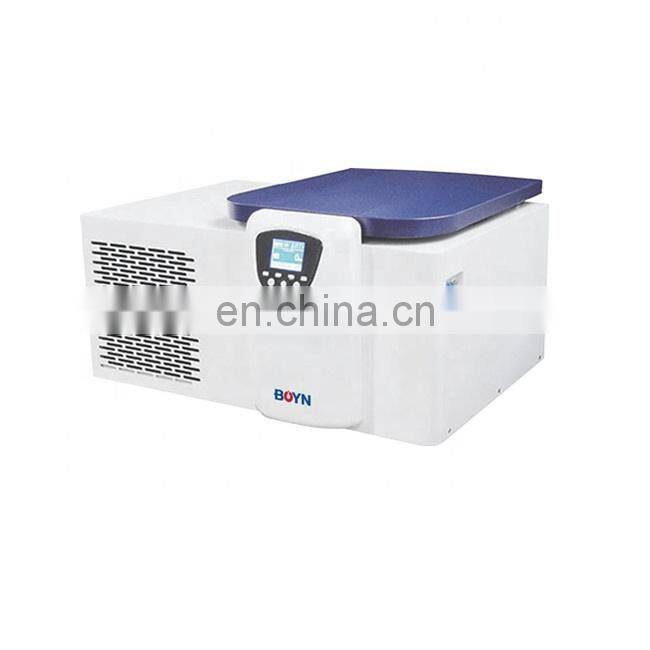

BC-HR20K Benchtop Refrigerated High Speed Centrifuge
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
Product Description
Product Description
Product features:
It adopts Infifineon's single-chip microcomputer and Infifineon's drive module, cooperates with independent control board and high-torque AC/DC brushless motor.
R404a refrigerant, wide temperature range: -20°C- 40°C, and can be set during the operation of the centrifuge; it has pre-cooling function and standby
cooling function and defrosting function.
Over-speed and over-temperature and unbalance and under-pressure and over-pressure detection, three-stage damping and shock absorption,
TFT-LCD color display
Bio-safety airtight angle rotor adopts silicone rubber integral sealing ring (EU RoHS 2015/863), which can avoid aerosol spillage and fully guarantee the
safety of workers and laboratory environment.
Rear austenitic 304 stainless steel centrifugal chamber with all-steel sprayed plastic shell, one-piece stamped steel front face and three-layer steel
protective cover, ensuring the safety of workers and laboratories. .
Mute electromechanical motor door lock system, once close the lid, the door lock system will be triggered.
10 speed acceleration and 10 speed reduction rate control, can store 100 sets of user-defifined programs.
R404a refrigerant, wide temperature range: -20°C- 40°C, and can be set during the operation of the centrifuge; it has pre-cooling function and standby
cooling function and defrosting function.
Over-speed and over-temperature and unbalance and under-pressure and over-pressure detection, three-stage damping and shock absorption,
TFT-LCD color display
Bio-safety airtight angle rotor adopts silicone rubber integral sealing ring (EU RoHS 2015/863), which can avoid aerosol spillage and fully guarantee the
safety of workers and laboratory environment.
Rear austenitic 304 stainless steel centrifugal chamber with all-steel sprayed plastic shell, one-piece stamped steel front face and three-layer steel
protective cover, ensuring the safety of workers and laboratories. .
Mute electromechanical motor door lock system, once close the lid, the door lock system will be triggered.
10 speed acceleration and 10 speed reduction rate control, can store 100 sets of user-defifined programs.
Product Paramenters
Model | BC-HR20K | |||
Max Speed | 20600rpm | |||
Max Rcf | 29280xg | |||
Max Capacity | 6×250 ml | |||
Default rotor | 12×1.5/2.0ml | |||
Speed Accuracy | ±50rpm | |||
Refrigerating system | Fluorine-free refrigeration compressor unit(R404a) | |||
Temperature control range | -20°C~40°C | |||
Temperature accuracy | ±1°C | |||
Running program | 20 sets | |||
Control and driving system | AC converter motor,microcomputer control | |||
Time Range | 1-99h59min, both continuous/ instantaneous centrifuge | |||
Rotor identification | Automatic rotor identification function | |||
Noise | ≤60 dB | |||
Electrical supply | AV220V 50Hz | |||
power | 1.8 Kw | |||
Size(L×W×H) | 630×760×400 mm | |||
weight | 110 Kg | |||
Order No | Rotor | Max Volume | Max speed(rpm) | Max RCF(xg) |
A-1 | Angle rotor | 12×1.5/2.0ml | 20600 | 29280 |
A-2 | Angle rotor | 24×1.5/2.0ml | 14000 | 18220 |
A-3 | Angle rotor | 12×10 ml/5ml | 14000 | 18810 |
A-4 | Angle rotor | 8×15ml(round bottom) | 12000 | 14830 |
A-5 | Angle rotor | 8×15ml(conical bottom) | 12000 | 14830 |
A-6 | Angle rotor | 6×50ml(round bottom) | 12000 | 13820 |
A-7 | Angle rotor | 6×50ml(conical bottom) | 12000 | 15120 |
A-8 | Angle rotor | 8×50ml(round bottom) | 10000 | 11400 |
A-9 | Angle rotor | 8×50ml(conical bottom) | 10000 | 11400 |
A-10 | Angle rotor | 4×100ml | 10000 | 10500 |
A-11 | Angle rotor | 6×100ml | 11000 | 13310 |
A-12 | Angle rotor | 6×250ml | 8000 | 9660 |

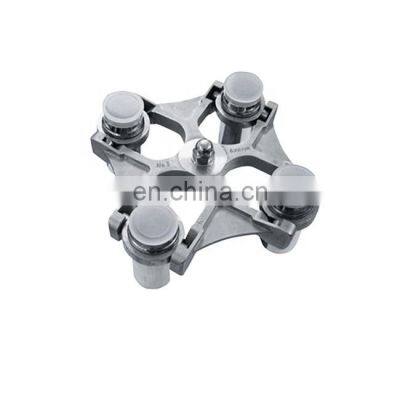

S-13 | Swing rotor | 4×50ml | 5000 | 4620 |
S-14 | Swing rotor | 4×100ml | 5000 | 4800 |
S-15 | Swing rotor | 8×50ml | 4000 | 2960 |
S-16 | Swing rotor | 32×15ml/10ml | 4000 | 2960 |

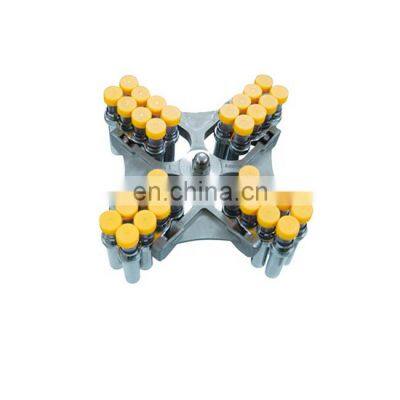

S-17 | Swing rotor | 48×5ml normal tube | 4000 | 2960 |
S-18 | Swing rotor | 48×5ml/2ml(vacuum tube) | 4000 | 2423/2960 |
S-19 | Swing rotor | 76×5ml/2ml(vacuum tube) | 4000 | 3080 |
S-20 | Swing rotor | 4×250 ml | 4000 | 2780 |

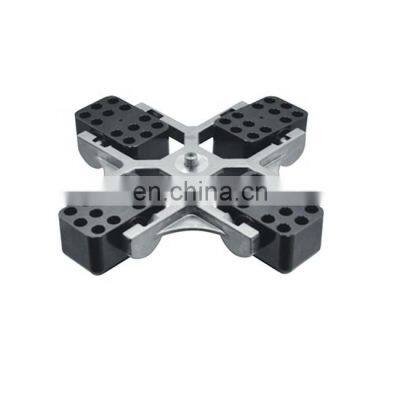

AP-21 | Adapters | 8×50 ml | ||
AP-22 | Adapters | 4×6×15 ml | ||
AP-23 | Adapters | 4×8×10 ml | ||
AP-24 | Adapters | 4×10×5 ml | ||
M-25 | Micro-plate rotor | 2×2×96 holes | 4000 | 2360 |
Recommend Products
Company Profile
Why Choose Us
FAQ
What is your minimum order quantity(MOQ)?
Our minimum order quantity (MOQ) is generally 1 unit. The exception however is that for certain items (e.g. labware or consumables) the MOQ may vary.
How long are your warranty?
All BOYN products are warranted to be free from defects in material and workmanship under normal use and service for a period of one (1) year from the date of original installation or 14 months after shipment date from the manufacturer, whichever occurs first.
How about the maintenance after the warranty period?
After the warranty period, we are still responsible for after-sales service. As long as the useful life of the equipment is unexpired, we will provide paid services for replacement parts.
How can I make payment? And what is your payment term?
Payment can be made through wire transfer (T/T), letter of credit (L/C at sight), PayPal or Western Union.
Our payment term is 100% deposit in advance
What is the packaging of your products?
We always use high quality corrugated cardboard box or non-fumigation plywood case to pack them, even with inner void fill materials for extra protection.
Do you deliver to ...?
Yes we do! We deliver worldwide. The available Shipping methods: forwarding agencies by air & by sea & by train, Parcel services by DHL & FEDEX & TNT, or self-pickup.
How long does it take to deliver the products after I place an order?
Our lead time varies with our current storage and production schedule. Most of products can be delivered within 7-15days after receiving your full payment
How long is the validity of quotation?
Generally, All Prices quoted by us are valid for 30 days from the date of stated on the quotation.
Can you modify your equipment to comply with different voltages power supply and sockets?
In most cases yes, we can, but not always. Please contact us for details
Who will install the unit in my place?
The quotation do not include any installation and training fee.
Your engineer should install it by himself with reference of user manual or installation video which provided by us.
What if I have an issue with my order?
If you have an issue with any of the products or services you have received from us, please contact us as soon as possible by calling +86-153-0652-2608 or contacting your Sales Consultant directly.
