Product Description

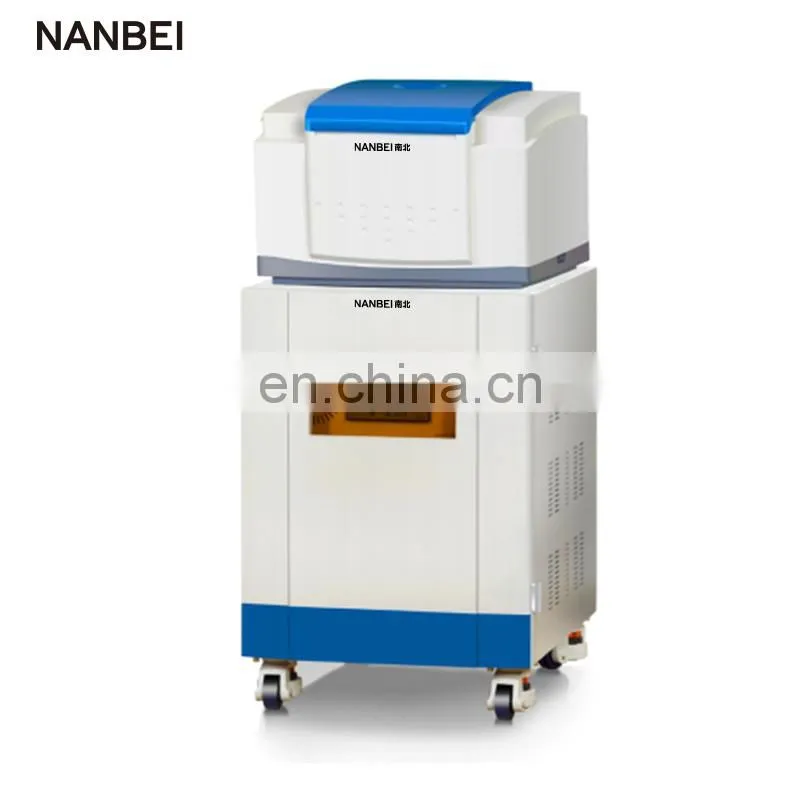

Product Introduction to solid fat content NMR analyzer
The PQ001-SFC NMR Analyzer was launched in 2008. After years of upgrade, PQ001 has many
advantages such as small size, high precision, good repeatability, good stability and excellent
cost/benefit performance. PQ001 has been widely used in the determination of Solid Fat Content.
The PQ001-SFC NMR Analyzer was launched in 2008. After years of upgrade, PQ001 has many
advantages such as small size, high precision, good repeatability, good stability and excellent
cost/benefit performance. PQ001 has been widely used in the determination of Solid Fat Content.
Features of solid fat content NMR analyzer
1. Test accuracy: 0.1% error for 5% oil content; 0.02% error for 0.5% oil content;
2. Repeatability: Relative standard deviation less than 2%;
3. Test limitation: 10mg oil or water;
4. Compliance with national standards: ISO8292, AOCS Cd 16b-93
5. User friendly Win7 operation system and easy-to-use software; operating personnel can operate easily
even with no training; multi-language.
1. Test accuracy: 0.1% error for 5% oil content; 0.02% error for 0.5% oil content;
2. Repeatability: Relative standard deviation less than 2%;
3. Test limitation: 10mg oil or water;
4. Compliance with national standards: ISO8292, AOCS Cd 16b-93
5. User friendly Win7 operation system and easy-to-use software; operating personnel can operate easily
even with no training; multi-language.
Specification
Basic parameters of solid fat content NMR analyzer
Magnet type |
permanent magnet |
Magnetic field intensity |
0.5±0.08T |
Probe coil |
Ø10mm |
Effective sample detection area |
Ø10mm×H40mm |
Size (LxWxH) |
1685mm×520mm×386mm |
Weight |
134Kg |
Specifications of solid fat content NMR analyzer
1. Magnet type: permanent magnet; Magnetic field intensity: 0.5±0.08T;
2. Magnetic field uniformity: ≤30ppm (Ø10mm×H40mm,Cylinder);
3. Magnetic field stability: <200Hz/Hour;
4. Magnet temperature control: dual system of nonlinear precise temperature control,
temperature tunable from 250C-350C;
5. RF field: pulse frequency: 1-30MHz; frequency control accuracy: 0.1Hz;
6. RF power amplifier > 300W;
7. Maximum bandwidth: 2000KHz;
8. Probe Size: 10mm (standard configuration);
9. Effective sample detection area: Ø10mm×H40mm (standard configuration);
10. Maximum echo number is 18,000; minimum echo time : 60µs;
11. Based on PCI bus industrial control computer platform, I7 processor, 8G DDR memory, 1T hard disk.
12. Operating Conditions
Power supply: 220V, 50Hz
Temperature: 22-280C
Humidity: 30-70%
13. Size (L, W, H): 1685mm×520mm×386mm
14. Weight: 134Kg (Magnet box 60Kg, Spectrometer 25Kg, RF unit 35Kg )
1. Magnet type: permanent magnet; Magnetic field intensity: 0.5±0.08T;
2. Magnetic field uniformity: ≤30ppm (Ø10mm×H40mm,Cylinder);
3. Magnetic field stability: <200Hz/Hour;
4. Magnet temperature control: dual system of nonlinear precise temperature control,
temperature tunable from 250C-350C;
5. RF field: pulse frequency: 1-30MHz; frequency control accuracy: 0.1Hz;
6. RF power amplifier > 300W;
7. Maximum bandwidth: 2000KHz;
8. Probe Size: 10mm (standard configuration);
9. Effective sample detection area: Ø10mm×H40mm (standard configuration);
10. Maximum echo number is 18,000; minimum echo time : 60µs;
11. Based on PCI bus industrial control computer platform, I7 processor, 8G DDR memory, 1T hard disk.
12. Operating Conditions
Power supply: 220V, 50Hz
Temperature: 22-280C
Humidity: 30-70%
13. Size (L, W, H): 1685mm×520mm×386mm
14. Weight: 134Kg (Magnet box 60Kg, Spectrometer 25Kg, RF unit 35Kg )
PQ001-SFC Standard configuration
|
||||||
1. Hardware |
Component |
Quantity |
||||
(1) Magnet unit |
Magnet unit box |
1 |
||||
Magnet |
1 |
|||||
(2) RF unit |
RF unit box |
1 |
||||
Preamplifier |
1 |
|||||
RF power amplifier |
1 |
|||||
Magnet temperature control |
1 |
|||||
Heating system |
1 |
|||||
Power supply system |
1 |
|||||
(3) Spectrometer unit (including ICC) |
Industrial control computer |
1 |
||||
Pulse sequence generator (PSG) |
1 |
|||||
Direct digital frequency Synthesis (DDS) |
1 |
|||||
Analog-to-digital converter (ADC) |
1 |
|||||
Probe coil |
Ø 10mm |
1 |
||||
2.Software |
Component |
Quantity |
||||
software |
Solid Fat Content Testing Software |
1 |
||||
3.Accessory |
Component |
Quantity |
||||
(1) Accessory |
software CD |
1 |
||||
Standard set (0, 30% and 70%) |
1 |
|||||
NMR Glass tube(10*200mm) |
100 |
|||||
Ø 10mm test tube stand |
1 |
|||||
Debugging tools |
Special tools |
1 |
||||
50Ω terminal |
1 |
|||||
BNC adapter assembly |
1 |
|||||
Testing line |
2 |
|||||
Fuses |
5 |
|||||
(2) Computer peripherals |
LCD display |
1 |
||||
Mouse, keyboard |
1 |
|||||
