High Quality Portable Intelligent Leaf Area Meter Price
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2015
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Soxhlet Apparatus Lab Crude Soxhlet Fat AnalyzerNegotiableMOQ: 1 -
Soxhlet Extraction Apparatus Lab Fat AnalyzerNegotiableMOQ: 1
-
Fast Test NPK Fertilizer Nutrients Soil ph and Nutrient TesterNegotiableMOQ: 1
-
Digital Solar Irradiance Measurement EquipmentNegotiableMOQ: 1
-
Fruit Pesticide Analising Equipment Portable Handheld Food Safety Pesticide Residue Rapid TesterNegotiableMOQ: 1
Product Description
Introduction to intelligent leaf area meter

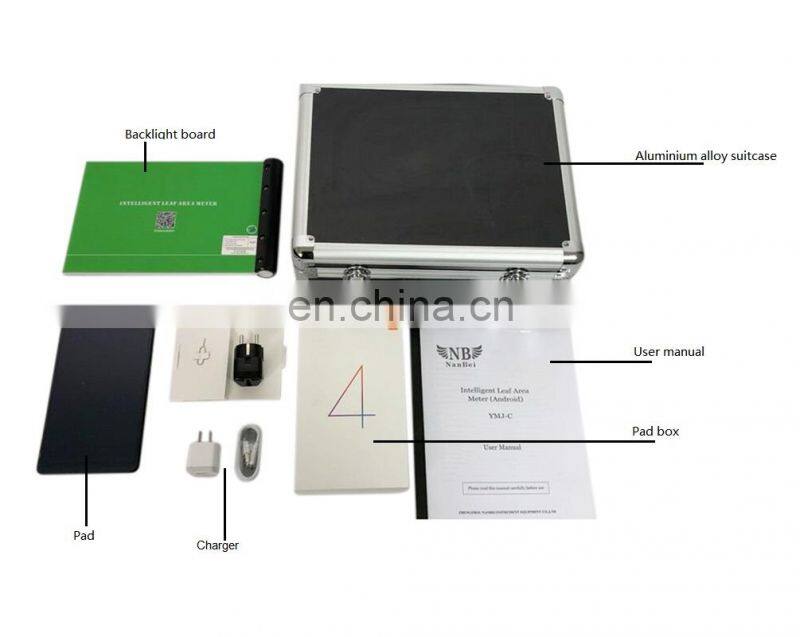

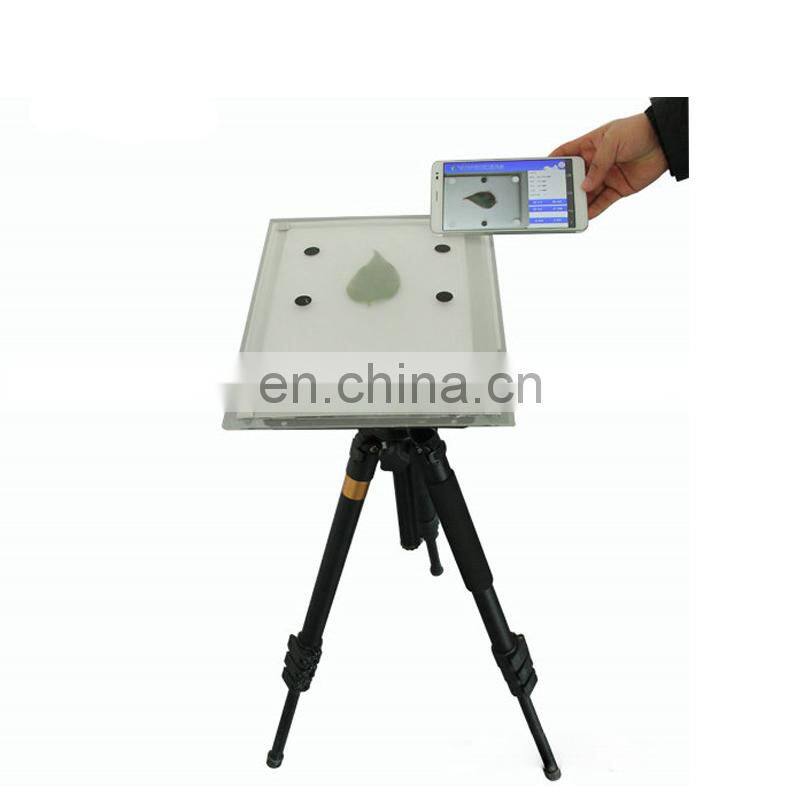

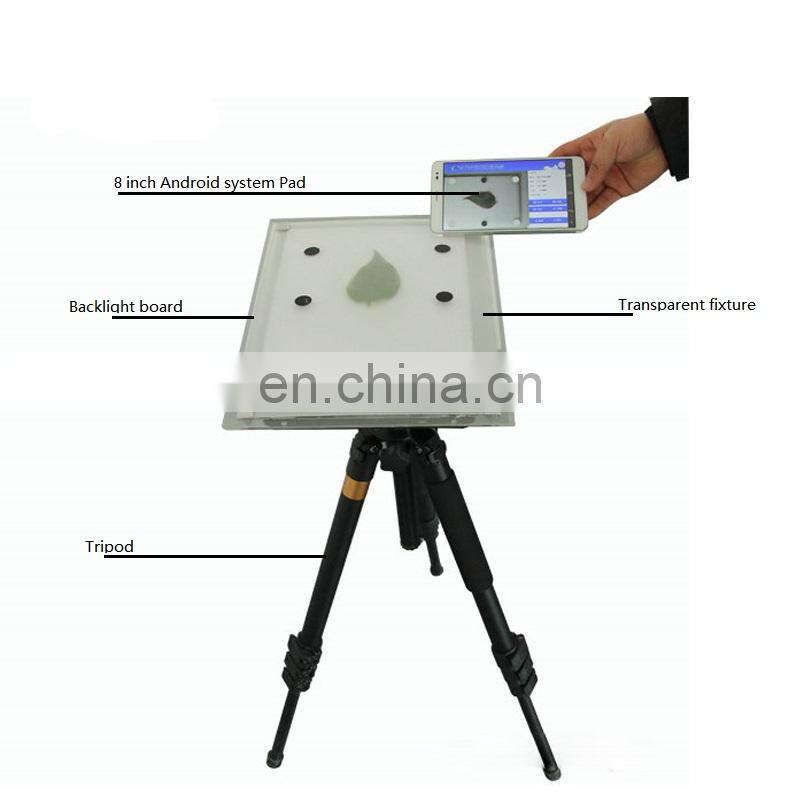

Intelligent leaf area measurement system is composed of a backlight device and a tablet with embedded software. The use of advanced image processing technology, based on leaf feature extraction, spatial transformation, edge detection theory, morphology and other technologies integrated design software. GF applied to the fields of agriculture field crop leaf area measurement.
Intelligent leaf area measurement system is composed of a backlight device and a tablet with embedded software. The use of advanced image processing technology, based on leaf feature extraction, spatial transformation, edge detection theory, morphology and other technologies integrated design software. GF applied to the fields of agriculture field crop leaf area measurement.
Feature of intelligent leaf area meter
Hardware Features:
1. Android system with simple operation, application of human, intelligent and scalable.
2. Two kinds of backlight optional.
System Features:
1. Android system with simple operation, user-friendly, intelligent and scalable.
2. 7-inch full-color touch screen, 8 million pixels, the software automatically calculates the leaf area after shooting, the
output results.
3 powerful storage, comes with 16G memory card.
4. Data View Diversification: data can be stored, you can view the report can also export Excel spreadsheets to the computer or WiFi server. Data statistics, analysis of intelligence.
5. With manual correction function, can cut, repair, automatic cutting petiole, etc., to ensure high-precision measurement.
6. There are common, dark, light color three algorithms optional, take pictures, according to the blade color to choose the
appropriate algorithm to ensure accuracy.
7. After taking pictures, the system can automatically calculate the area, perimeter, leaf length, leaf width, the number of
wormhole and the same screen.
Hardware Features:
1. Android system with simple operation, application of human, intelligent and scalable.
2. Two kinds of backlight optional.
System Features:
1. Android system with simple operation, user-friendly, intelligent and scalable.
2. 7-inch full-color touch screen, 8 million pixels, the software automatically calculates the leaf area after shooting, the
output results.
3 powerful storage, comes with 16G memory card.
4. Data View Diversification: data can be stored, you can view the report can also export Excel spreadsheets to the computer or WiFi server. Data statistics, analysis of intelligence.
5. With manual correction function, can cut, repair, automatic cutting petiole, etc., to ensure high-precision measurement.
6. There are common, dark, light color three algorithms optional, take pictures, according to the blade color to choose the
appropriate algorithm to ensure accuracy.
7. After taking pictures, the system can automatically calculate the area, perimeter, leaf length, leaf width, the number of
wormhole and the same screen.
Specification
Technical parameters of intelligent leaf area meter:
Scope |
Different sizes of green leaves, yellow leaves, red leaves and other common plant leaves |
Measuring range |
5 ~ 100 square centimeters |
Number of tablets Accuracy |
without backlight ± 3%, plus backlight ± 2%; |
Software system |
Android4.2.2 above |
Size |
7 inch full color touch screen |
Rear camera |
8 million |
Resolution |
1920 * 1200 |
Memory |
16G |
Network Interface |
WiFi / 4G |
Standard charging power |
DC5V1A |
Background board device for intelligent leaf area meter:
Background light source |
highlight LED lights |
Power Interface |
DC-2.1 |
Standard power supply |
DC5V5A |
Power supply range |
DC5~12V |
Shell material |
acrylic shell, material chemical stability, weather resistance |
Device size |
250*180*1.5 |
Transparent cover size |
250*180*0.5 |
Weight |
0.2kg |
