Lab RO Ultrapure Water System Deionizer Purewater Machine
NB-UPW-10
Both NB-UPW and Extract series ultra pure water machine are specially designed for the high - precision laboratory. The systems uses the multi-step purification process, UV sterilization and ultra filtration technologies, so as to produce the high quality water with very low ion, organic matter content, heat source and nucleic acid enzyme. Particularly LD-UPW&Extract series applies to experimental projects such as biochemistry, biological research, molecular biology, tissue culture, biological engineering, and genetic research.
Characteristics:
l Traditional classic style, square housing and elegant, adopted the advanced spraying technique.
l Automatic electronic pressure sensor controlling, RO membrane auto flushing, automatic stop without water, automatic stop when water tank full, automatic cutting off water when pump stopping, and large apheliotropic LCD display in real-time.
l Provide an alternative to water bucket size to meet different needs.
l The whole system is the use of new type U easy- inserting Korean filter cartridge, no water seepage and leakage; save the trouble to replace filter element, easy maintenance and replacement for the filter cartridge.
Imported RO film with guarantying that the polishing resin is nuclear grade, the high-pressure pump has no noise, imported dual wavelength UV lamp (185nm&254nm), imported PES MWCO 5000D ultra filtration components, and electromagnetic valve.Provide the upgrading function for the water quality and output.
|
Model |
NB-UPW-VF-10 |
|
|
|
|
Output(25°C)* |
10 liters/hour |
|
Flow rate |
Up to 2 liters/minute(with pressure tank) |
|
Pure water outlet |
2: reverse osmosis water, ultrapure water |
|
Ultrapure water quality |
|
|
Resistivity(25°C) |
18.2MΩ.cm |
|
TOC* |
<3ppb |
|
Bacteria |
<0.1cfu/ml |
|
Particle(>0.22μm) |
<1/ml |
|
Endotoxin |
<0.001Eu/ml |
|
RO water quality |
|
|
Ion rejection rate |
95%-99% (new RO membrane) |
|
Particles and bacteria rejection rate |
>99% |
|
Feed water requirements |
Tap water, temperature:5-45°C,pressure:1.0-4.0Kgf/cm2 |
|

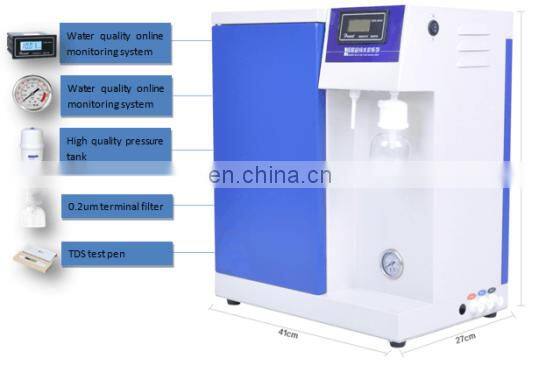

Dimension and weight |
Length×Width×Height:41×27×50cm/ Weight: about 23Kg |
|
Electrical requirements |
AC110-240V, 50/60Hz |
|
Power |
48-72W |
|

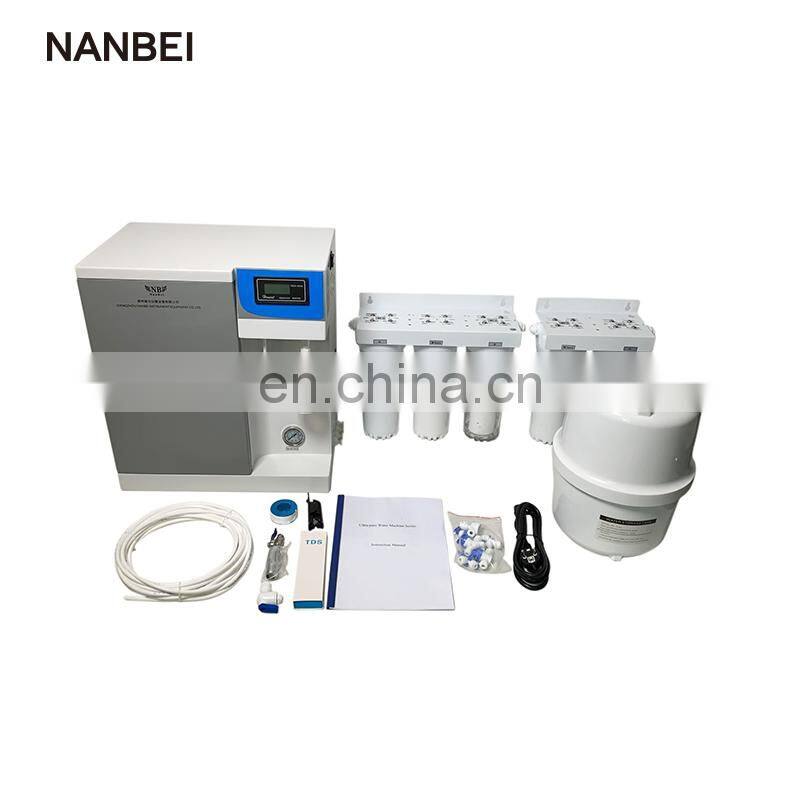

Standard configuration |
Main body (Including 1 set of cartridge)+12 liters pressure tank |
Filter list:
|
No. |
Product Specifications |
Proposed replace term |
Configuration quantity |
Note |
|
1 |
11"PP filter |
About 4-6 months |
One set |
|
|
2 |
11" activated carbon filter |
About 4-6 months |
Two sets |
|
|
3 |
75GPD RO membrane |
About 1-2 years |
One set |
|
|
4 |
UV germicidal lamp |
About 9000 hours |
One set |
|
|
5 |
11" Deionized Purification Column |
About1000L/C |
Four sets |
|
|
6 |
Ultrafiltration column |
About 1-2 years |
One set |
|
|
7 |
0.2um terminal filter |
About 1-2 years |
One set |
|

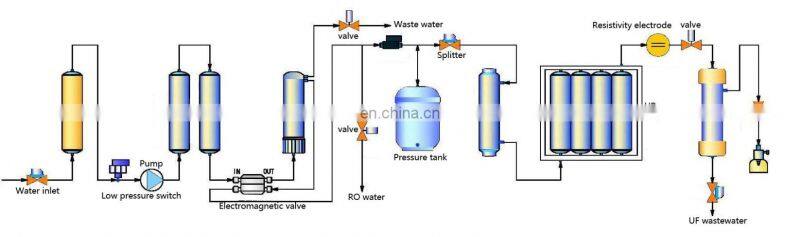

Filtering steps:

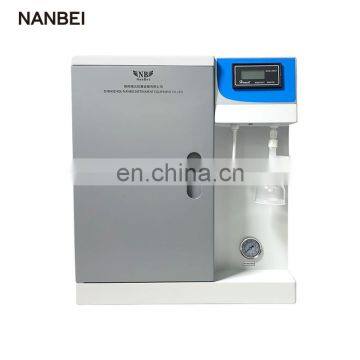

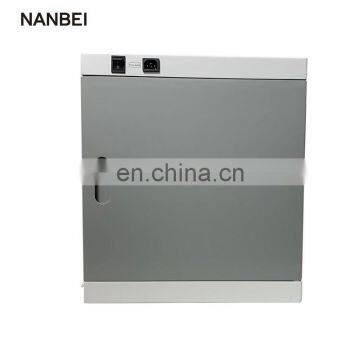

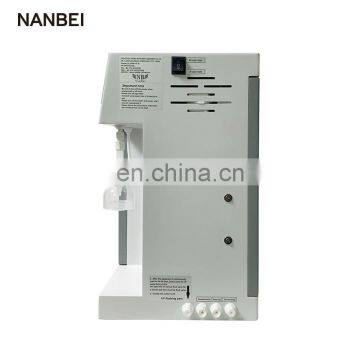

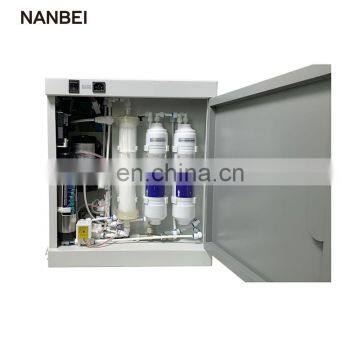

Product picture:

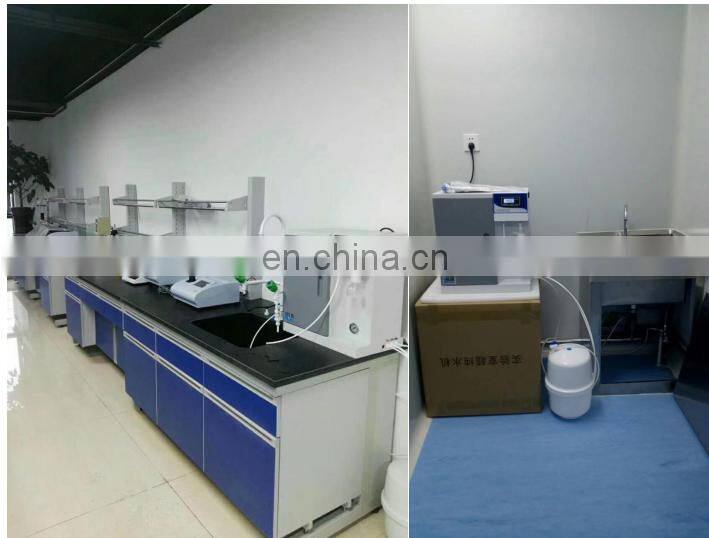

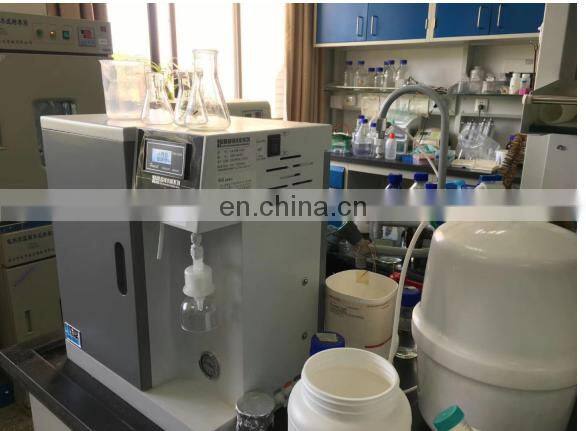

Use in lab
![]() |
|
|
1.Company Show
2.Factory Show

1.Certification
2.Warranty and After-sale service
♥♥We Supply 1 Year Warranty , And Lifelong Free Technical Guiding And Training♥♥
