Reliable Pharmaceutical Peristaltic Pump With Four Operation Modes

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Description

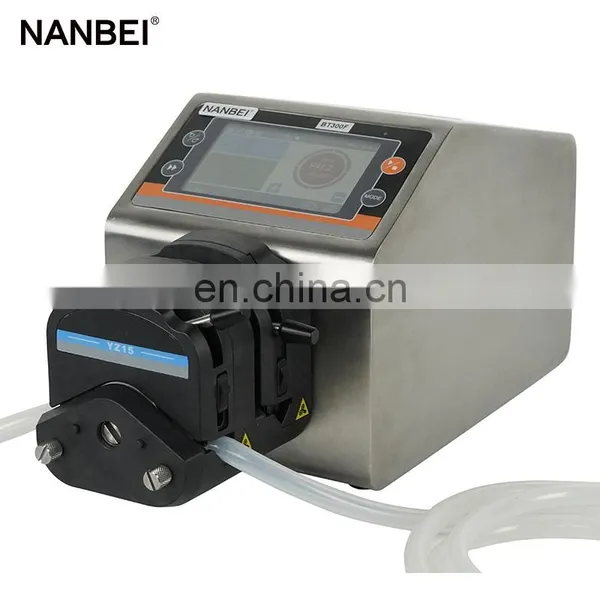

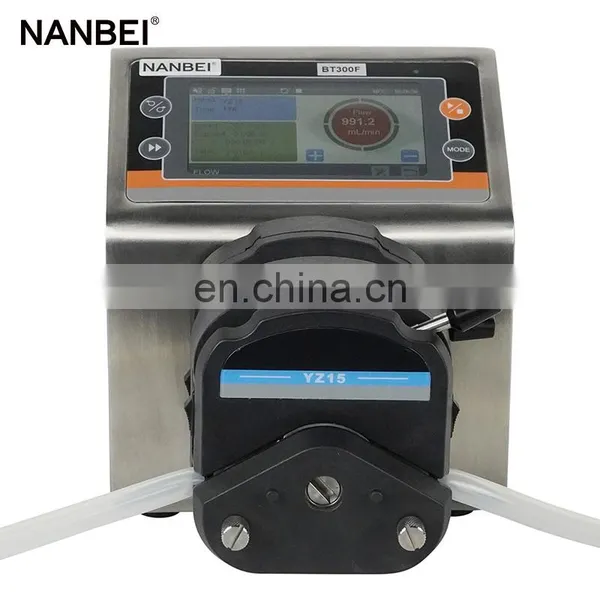

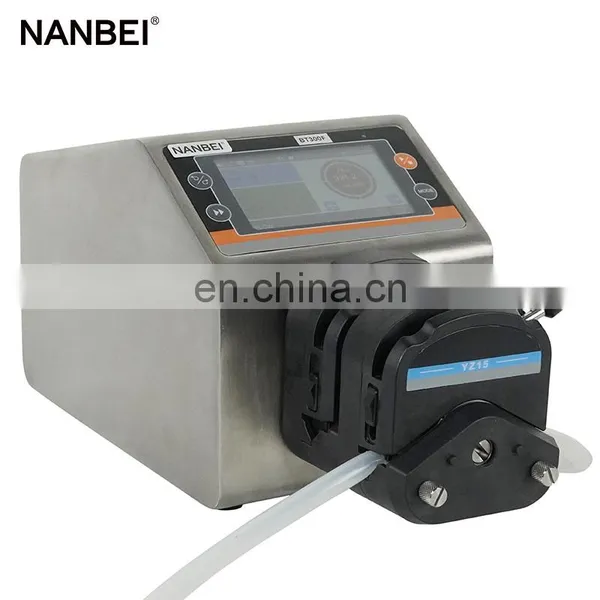

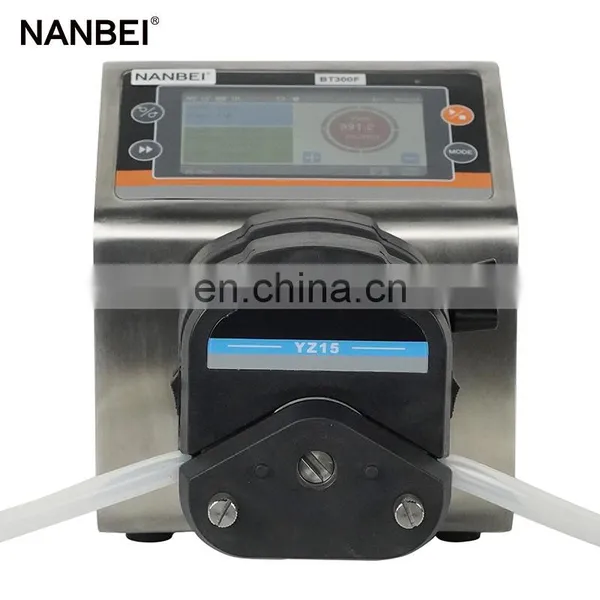

BT300F Intelligent dispensing peristaltic pump provides flow range from 0.006-1600 mL/min with variable pump heads and tubings. It’s easy to operate with the intuitive and clear interface with color LCD touch screen. There are four operation modes available: Volume Dispense Mode, Time Dispense Mode, Copy Dispense Mode and Flow Mode. The system minimizes working noise due to the intelligent cooling fan control. With RS485 MODBUS interface, the pump is easy to communicate with external device, such as PC, HMI or PLC.

Functions and Features

Color LCD display, touch screen and keypad for operating. Reversible direction, start/stop control and adjustable speed. Precise motor control technology improves dispense accuracy compared to the traditional time dispense mode. Anti-drip function ensures dispense accuracy. Three dispense modes available. Time Dispense Mode: automatically dispense by setting the duration for each dose, lag time between doses and number of cycles. Volume Dispense Mode: automatically dispense by setting the volume for each dose, lag time between doses and number of cycles. Copy Dispense Mode: automatically dispense by setting the total volume need to dispense, lag time between doses and number of cycles. Store five groups of working parameters for each dispense mode (power-off memory). Flow rate display and control; cumulative dispense volume display. Flow rate calibration. 0.2% high precision rotating speed control with 0.1 rpm speed resolution. Professional operating system. Configure system with setup wizard. Intelligent temperature control to minimize working noise. External logic level signal can control start/stop, direction and easy dispense functions; external analog signal can adjust the rotating speed. Signal is optically isolated. With RS485 MODBUS interface. Internal double-layer isolation structure, circuit board with conformal coating make the pump dust-proof and moisture proof. Anti-electromagnetic interference feature, wide input voltage range for complex power environment. Stainless steel enclosure, easy to clean, resistant to the corrosion of the acid, alkali, sodium and organic solvents. Drive multi-channels and variable pump heads. Optional footswitch and remote infrared control.

More Details Photos

Specification

Model	BT300F With YZ15 pump head
Flow range	0.006-1600 mL/min
Speed range	0.1-350 rpm
Speed resolution	0.1 rpm
Speed accuracy	0.2%
Power supply	AC 220V ± 10% 50Hz/60Hz; AC 110V ± 10% 50Hz/60Hz
Power consumption	<50W
xternal logic level control signal	5V, 12V (standard), 24V (optional)
External analog control signal	0-5V (standard), 0-10v, 4-20mA (optional)
Communication interface	RS485 MODBUS
IP grade	IP31
Operating condition	Temperature 0~40°C; Relative humidity < 80%
Dimensions (L x W x H)	226 x 150 x 238 mm (8.90 x 5.91 x 9.37 inch)
Weight	5.3 kg (11.7 lbs)

BT300F Suitable Pump Heads and Tubing, Flow Parameters

Drive type	Pump head	Ch	Tubing size	Flow rate per channel (mL/min)
BT300F (304SS case)	YZ15	1	13# 14# 16# 19# 25# 17#	0.006-990
		YZ25	1	15# 24#	0.16-990
		2 x YZ15	2	13# 14# 16# 19# 25# 17#	0.006-990
		2 x YZ25	2	15# 24#	0.16-990

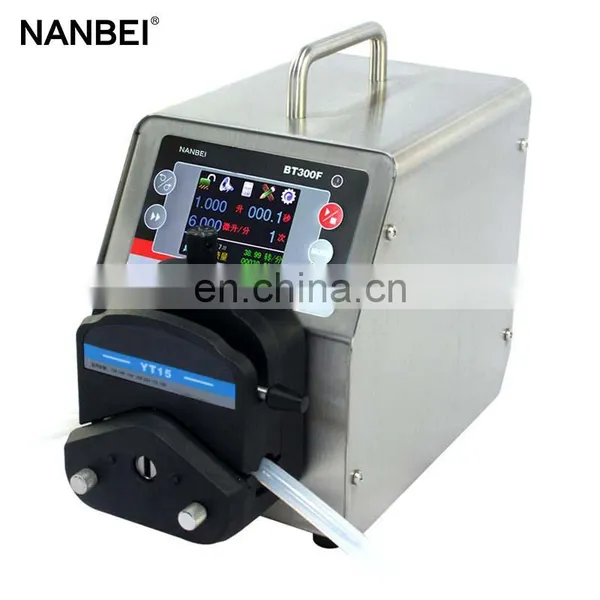

		YT15	1	13# 14# 16# 19# 25# 17# 18#	0.006-1300
		YT25	1	15# 24# 35# 36#	0.16-1600
		2 x YT15	2	13# 14# 16# 19# 25# 17# 18#	0.006-1300
		DT15-14	1	16# 19# 25# 17#	0.05-930
		DT15-24	2	16# 19# 25# 17#	0.05-930
		DT15-44	4	16# 19# 25#	0.05-610

Related Products

Packing & Delivery

Standrad Export Carton Case

Company Profile

FAQ

Q1: Why Choose NANBEI ? (1).Professional manufacturer with more than 14 years experience (2).Exported to more than 97% Countries (3).Turnkey Solution is no problem Q2:OEM,ODM acceptable or not? Absolutely Yes Q3:What's kind of Payment terms for customer choosing? T/T ,Western Union, Money Gram , Credit Card, Paypal , L/C ... Q4:Can we visit your factory online? Absolutely no problem Q5:Can online video inspection before shipment? Absolutely no problem Q6: what's the MOQ ? Sample order is OK? MOQ:1 set, sample order is no problem Q7:What's kind of shipment for customer choosing? Usually ship by sea, by air, by international express . We can also provide reasonable solutions according to your transportation requirements Q8:How to ensure product quality and after-sales service? We have CE, ISO quality certificate, and SGS authentication. After-sale service: 1.Warranty : 1 year 2.We supply free part for quality problem in warranty 3.Long life technical support and service
