BT300F Intelligent Precise Dosing Peristaltic Pump 0.006-1600 ML/Min
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2015
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Step Motor Intelligent Dispenser Peristaltic Pump With Variable Pump HeadsNegotiableMOQ: 1 -
80l Co2 Incubator Laboratory Digital 160l Carbon Dioxide IncubatorNegotiableMOQ: 1
-
TWO CHANNEL Cheap LAB POWDER TAP DENSITY METER TESTERNegotiableMOQ: 1
-
Lab Stainless Steel Test Tube Glassware Glass Washing Air DryerNegotiableMOQ: 1
-
NANBEI Lab Temperature Control Glass Test Tube Glassware Air DryerNegotiableMOQ: 1
Product Description
Description

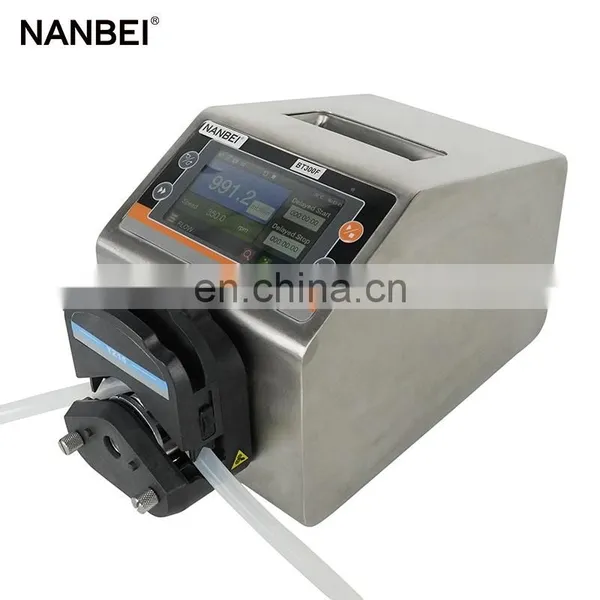

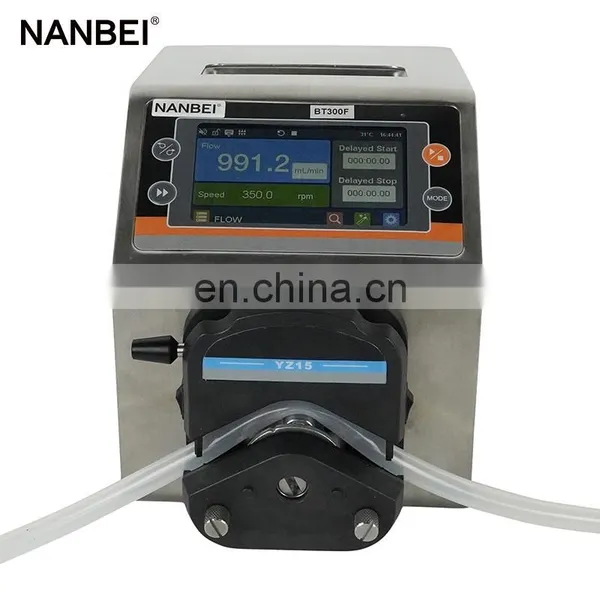

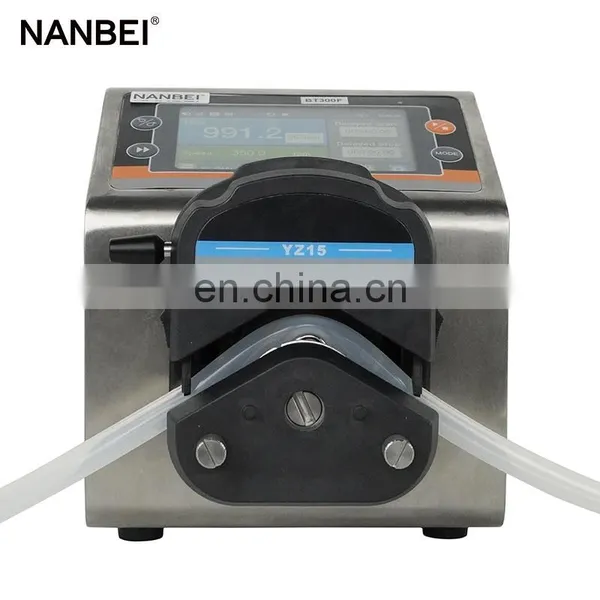

BT300F Intelligent dispensing peristaltic pump provides flow range from 0.006-1600 mL/min with variable pump heads and tubings. It’s easy to operate with the intuitive and clear interface with color LCD touch screen. There are four operation modes available: Volume Dispense Mode, Time Dispense Mode, Copy Dispense Mode and Flow Mode. The system minimizes working noise due to the intelligent cooling fan control. With RS485 MODBUS interface, the pump is easy to communicate with external device, such as PC, HMI or PLC.
Functions and Features

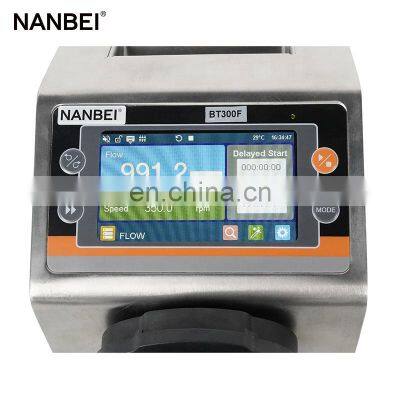

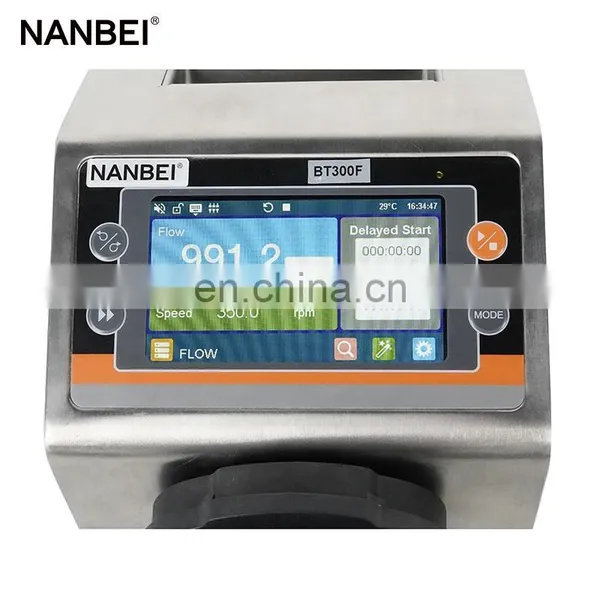

Color LCD display, touch screen and keypad for operating.
Reversible direction, start/stop control and adjustable speed.
Precise motor control technology improves dispense accuracy compared to the traditional time dispense mode.
Anti-drip function ensures dispense accuracy.
Three dispense modes available. Time Dispense Mode: automatically dispense by setting the duration for each dose, lag time between doses and number of cycles. Volume Dispense Mode: automatically dispense by setting the volume for each dose, lag time between doses and number of cycles. Copy Dispense Mode: automatically dispense by setting the total volume need to dispense, lag time between doses and number of cycles.
Store five groups of working parameters for each dispense mode (power-off memory).
Flow rate display and control; cumulative dispense volume display.
Flow rate calibration.
0.2% high precision rotating speed control with 0.1 rpm speed resolution. Professional operating system. Configure system with setup wizard.
Intelligent temperature control to minimize working noise.
External logic level signal can control start/stop, direction and easy dispense functions; external analog signal can adjust the rotating speed. Signal is optically isolated.
With RS485 MODBUS interface.
Internal double-layer isolation structure, circuit board with conformal coating make the pump dust-proof and moisture proof.
Anti-electromagnetic interference feature, wide input voltage range for complex power environment.
Stainless steel enclosure, easy to clean, resistant to the corrosion of the acid, alkali, sodium and organic solvents.
Drive multi-channels and variable pump heads.
Optional footswitch and remote infrared control.
More Details Photos
Specification
Flow range |
0.006-1600 mL/min |
Speed range |
0.1-350 rpm |
Speed resolution |
0.1 rpm |
Speed accuracy |
0.2% |
Power supply |
AC 220V ± 10% 50Hz/60Hz; AC 110V ± 10% 50Hz/60Hz |
Power consumption |
<50W |
Communication interface |
RS485 MODBUS |
IP grade |
IP31 |
Operating condition |
Temperature 0~40°C; Relative humidity < 80% |
External analog control signal |
0-5V (standard), 0-10v, 4-20mA (optional) |
BT300F Suitable Pump Heads and Tubing, Flow Parameters
Drive type |
Pump head |
Ch |
Tubing size |
Flow rate per channel (mL/min) |
BT300F (304SS case) |

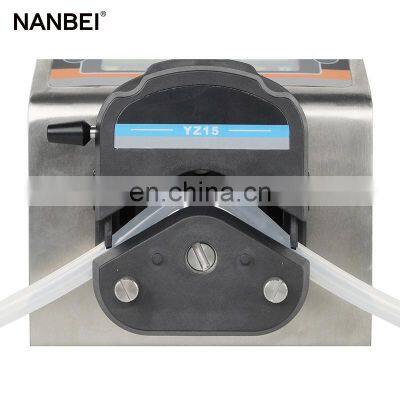

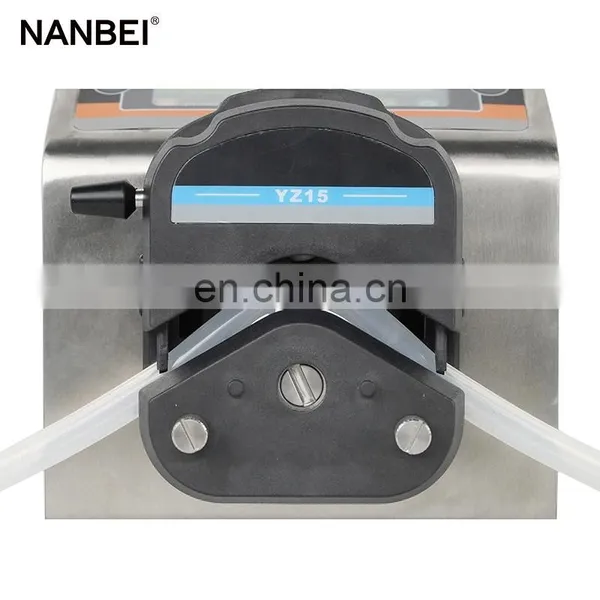

YZ15 |
1 |
13# 14# 16# 19# 25# 17# |
0.006-990 |
YZ25 |
1 |
15# 24# |
0.16-990 |
|
2 x YZ15 |
2 |
13# 14# 16# 19# 25# 17# |
0.006-990 |
|
2 x YZ25 |
2 |
15# 24# |
0.16-990 |
|
YT15 |
1 |
13# 14# 16# 19# 25# 17# 18# |
0.006-1300 |
|
YT25 |
1 |
15# 24# 35# 36# |
0.16-1600 |
|
2 x YT15 |
2 |
13# 14# 16# 19# 25# 17# 18# |
0.006-1300 |
|
DT15-14 |
1 |
16# 19# 25# 17# |
0.05-930 |
|
DT15-24 |
2 |
16# 19# 25# 17# |
0.05-930 |
|
DT15-44 |
4 |
16# 19# 25# |
0.05-610 |
