Lab 2L/h Small Scale Vacuum Instant Coffee Power Milk Juice Mini Atomizer Spray Dryer Machine With CE
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2015
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
96well Automated Elisa Reader Elisa Test EquipmentNegotiableMOQ: 1 -
Laboratory Scale Small Mini Juice Milk Spray Dryer Making Machine Atomizer Spray Drying Equipment For SaleNegotiableMOQ: 1
-
Digital Biochemical BOD Thermostat IncubatorNegotiableMOQ: 1
-
Electric Heating Constant Temperature Incubator Thermostatic Heating IncubatorNegotiableMOQ: 1
-
96well Micro Elisa Machine Automated Elisa ReaderNegotiableMOQ: 1
Product Description

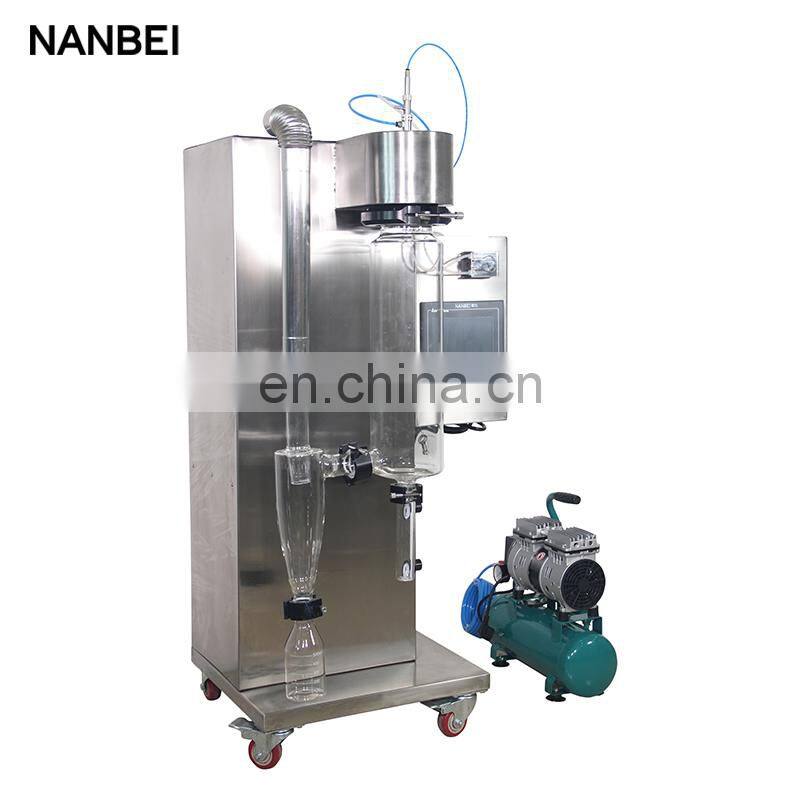

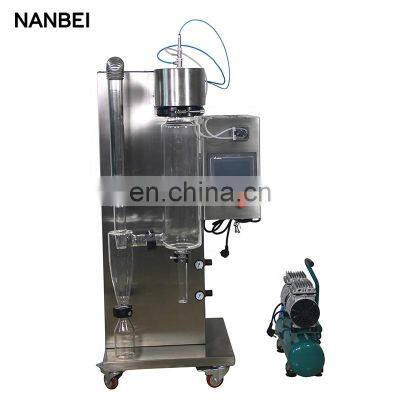

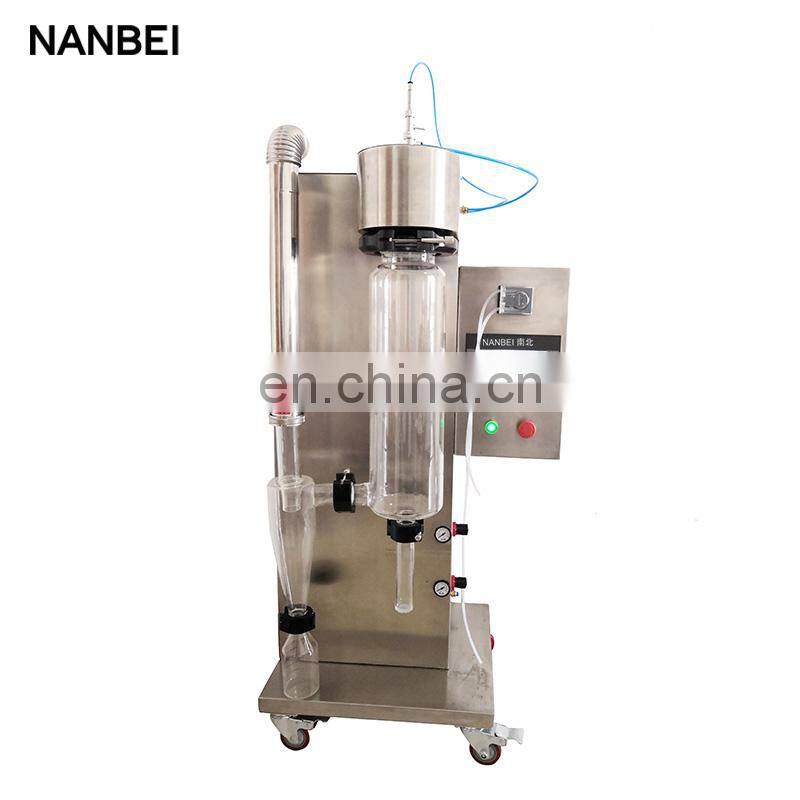

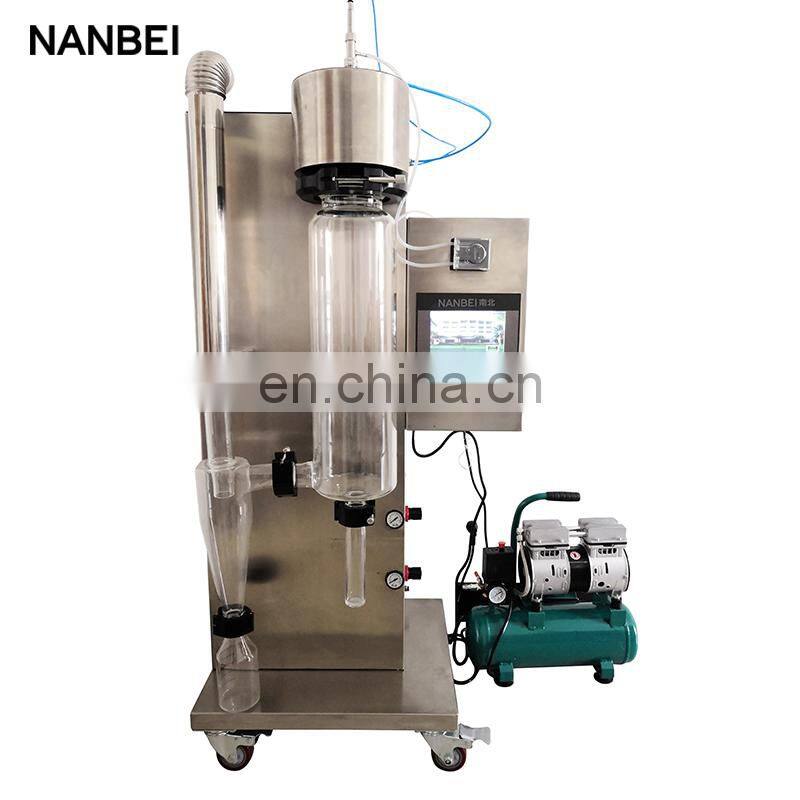

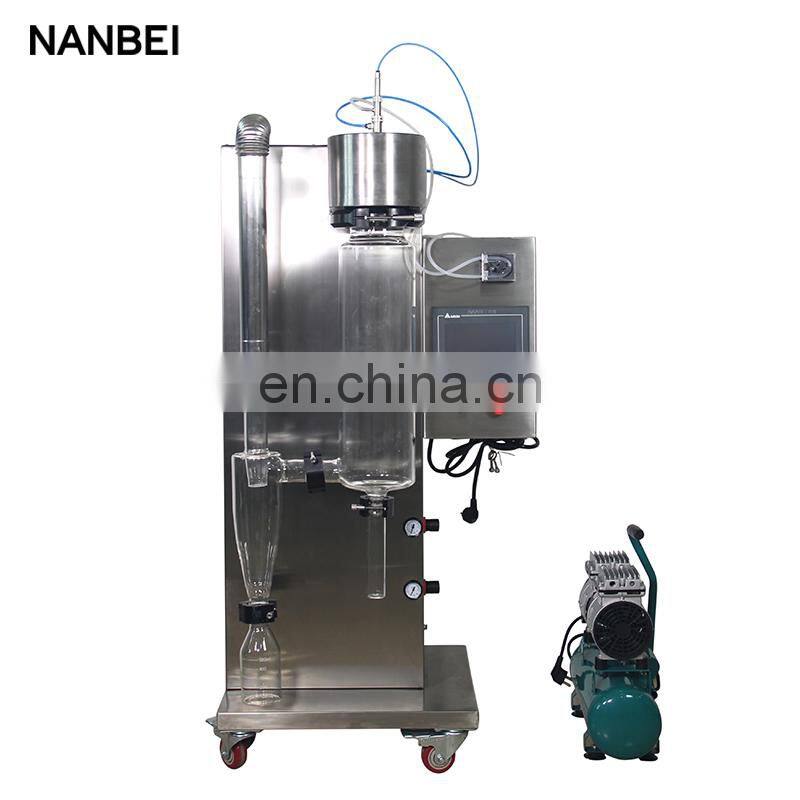

2L/h mini spray dryer

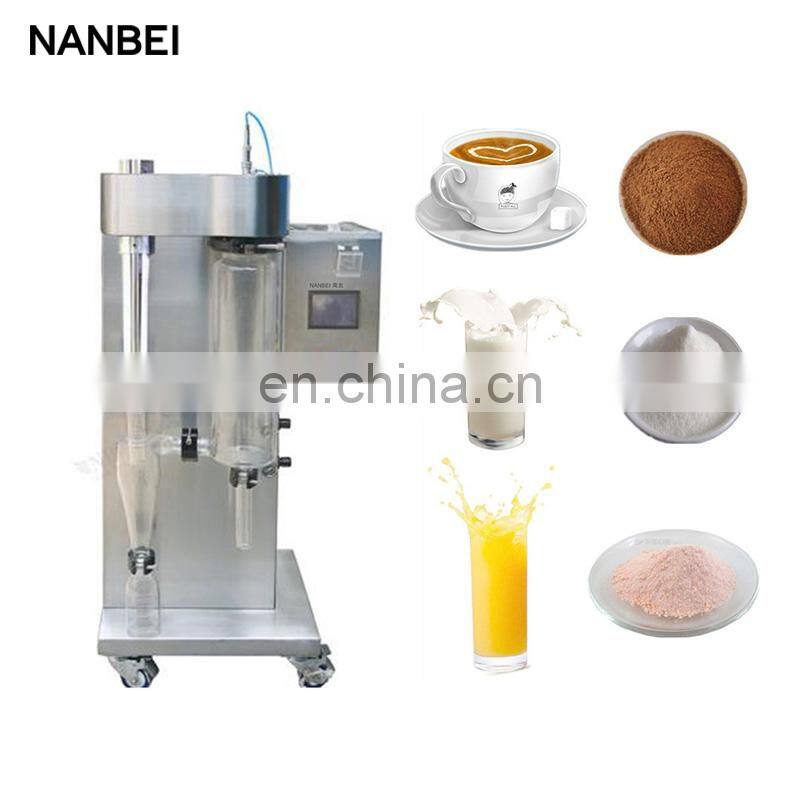

Application:
1. Various fields where the production of a free powder sample is required
2. NSP-1500 has successfully processed samples in the following areas: beverage, flavorous and colorings, milk and egg products, plant and vegetable extracts. pharmaceuticals, synthetics heat sensitive materials, plastics polymers and resins, perfumes, blood, ceramics and superconductors biochemicals, dyestuffs, soaps and detergents, foodstuffs, adhesives, oxides, textiles, bones, teeth and tooth amalgam and many others.
Features:
1 Special for lab research, min 20-30ml liquid to finish one test
2 All borosilicate glass for easy visual monitoring of process status
3 Spray chamber, cyclone separator, receiving talk are all made of borosilicate glass which can resist strong acid/alkali, high temperature, it can work in a no-pollution and stable environment
4 Easy to clean and very simple to assemble and break down

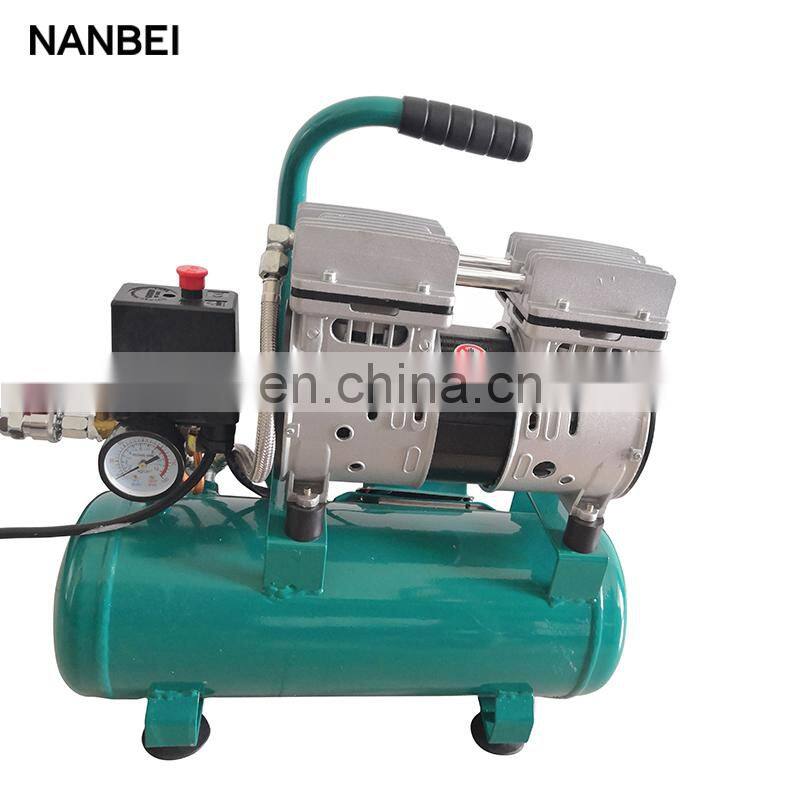

5 The air compressor is no oil and don't pollute compress air, the sound is low than 50db and following the GMP understands.
6 Inlet/outlet temperature is accurate controlled by PID.
7 The unit is self contained and supplied complete and ready for immediate operation
8 Using screed touchable face display operation, control temperature, airflow volume, air pressure, pump speed and de-blocker frequency
9 Product feeding with RS2559605 rotary pump, capacity is adjustable
10 Automatic de-blocking device prevents the nozzle from becoming blocked and variably controlled
More Details Photos

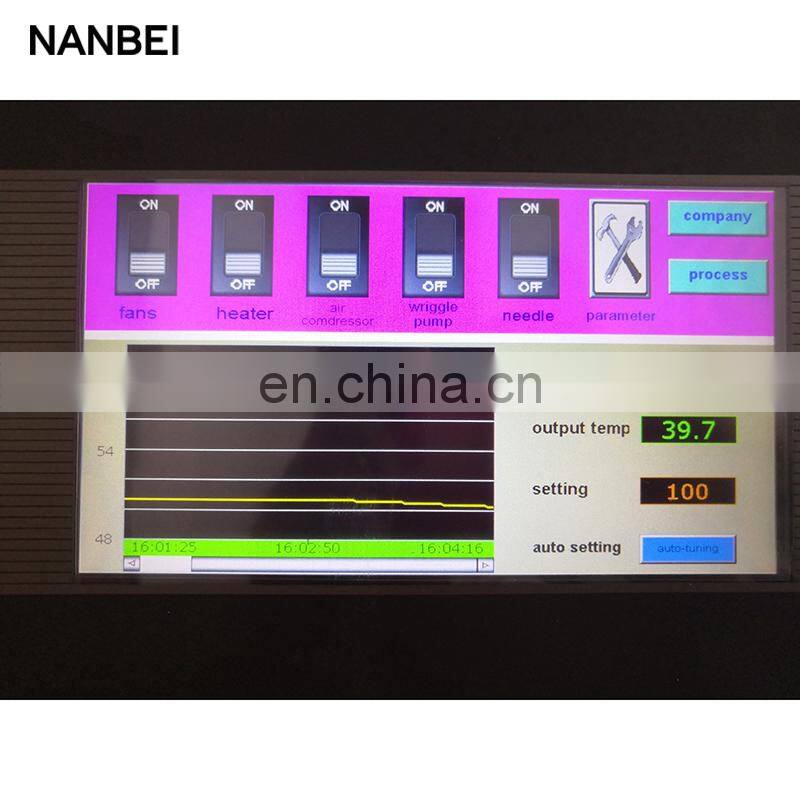

Color large touch screen
display input temperature,output temperature
switch for fans,heater,air compressor ect.
Easy to operate,we can do English language or Russian according to your needs.

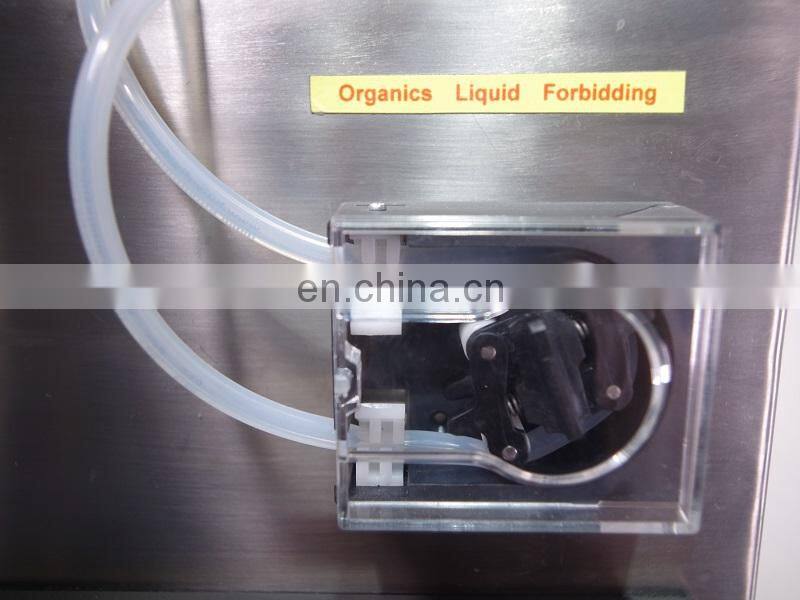

Standard peristaltic pump
Automatic feeding, simple and fast
Feed volume can be adjusted by feed peristaltic pump, the minimum sample volume is 30ml

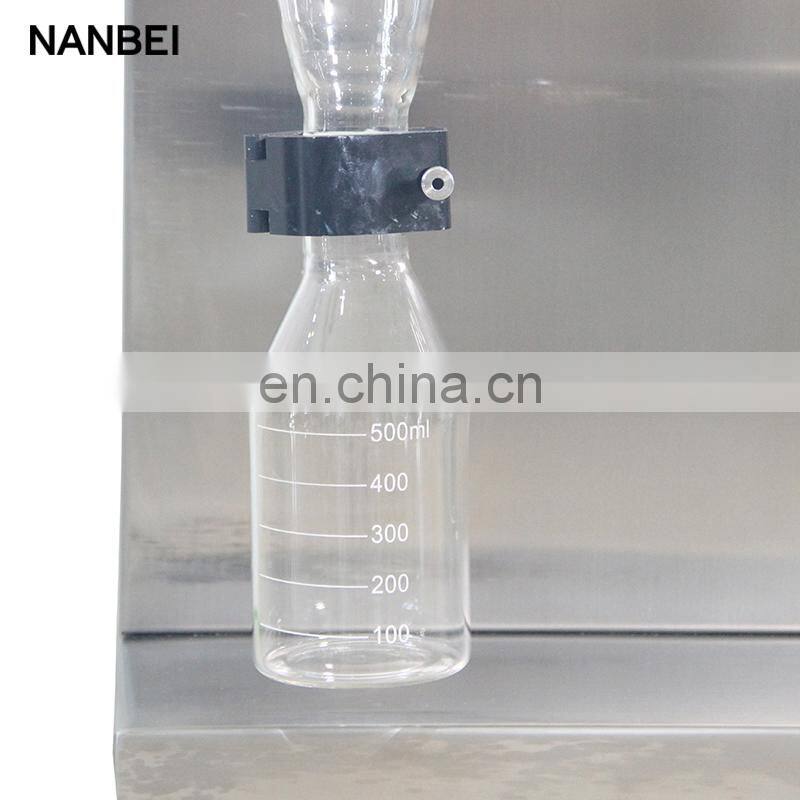

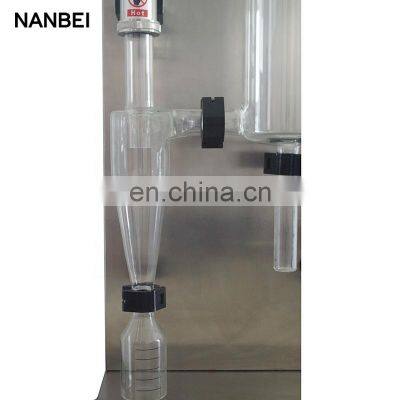

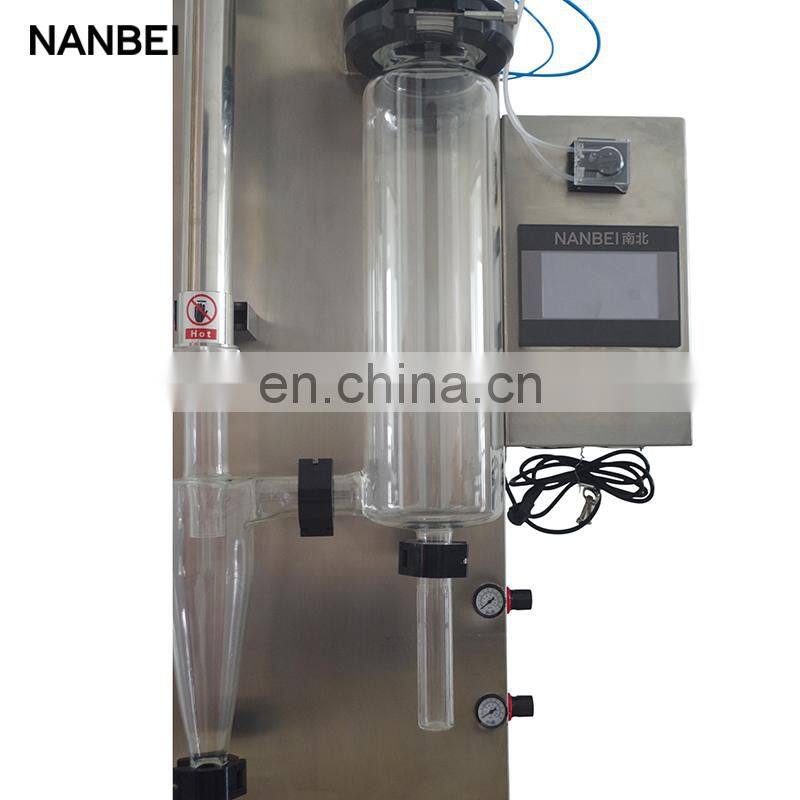

High quality borosilicate glass drying chamber，High temperature resistance, easy to clean. The entire spray drying experiment process is visible, which is convenient for controlling the experiment process.glass parts are connected by clamps, which are very easy to disassemble and clean

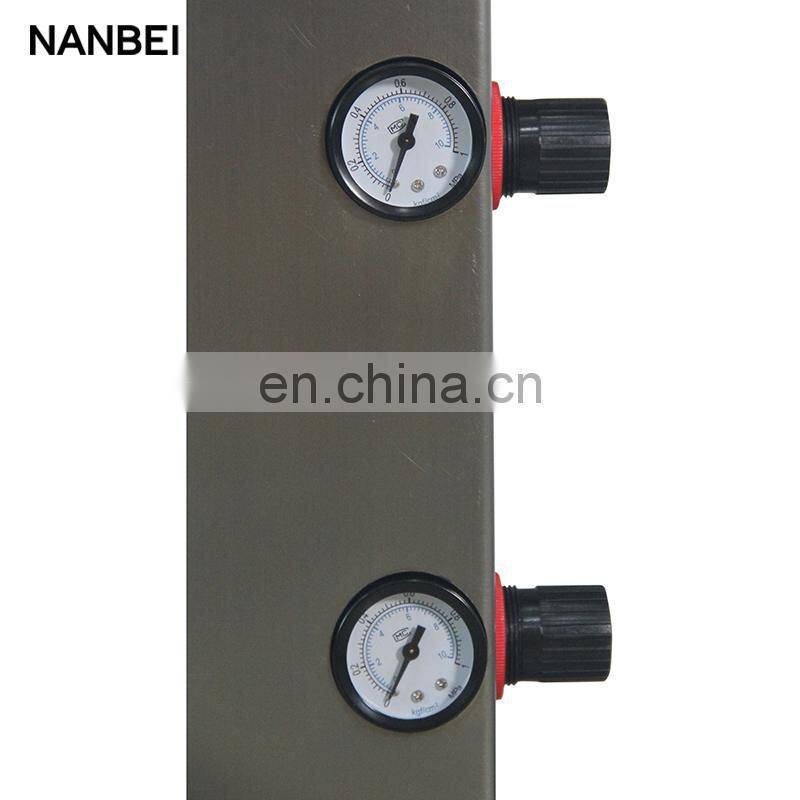

High precision vacuum
Gauge,Control atomization pressure, Ensure safe operation,.factory has been adjusted to safety, no need to adjust by the user
Specification
Model | NSP-1500 |
Max capacity | 1500-2000ml/h |
Temperature range of Inlet air | 30℃ -280℃ |
Temperature range of outlet air | 40℃ -120℃ |
Precision of temperature | ± 1 ℃ |
Dryer time | 1.0-1.5 S |
Speed of squirmy pump | 30-2000ml/h, |
Consume of dryer air | 0-330m3 /h, max pressure: 686Pa |
Consume of spray air | 0-4.2m3 /h, spray pressure: 2-5bar |
Spray system | 2 liquid nozzles with standard 0.7mm jet options of 0.5/1.0/1.5/2.0/2.5mm |
Spray direction | downwards co-current |
Power | 3.5KW 220V |
Voltage | 220/240V-50/60HZ-13amps |
Dimensions | 650×500×1550 ( mm ) L x W x H |
Weight | 120kg |
