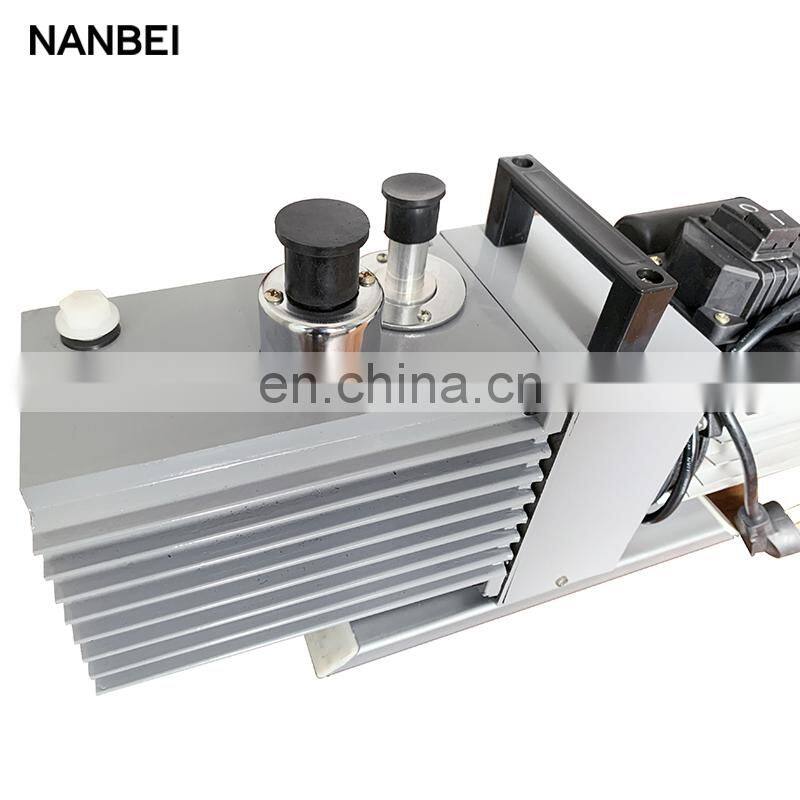

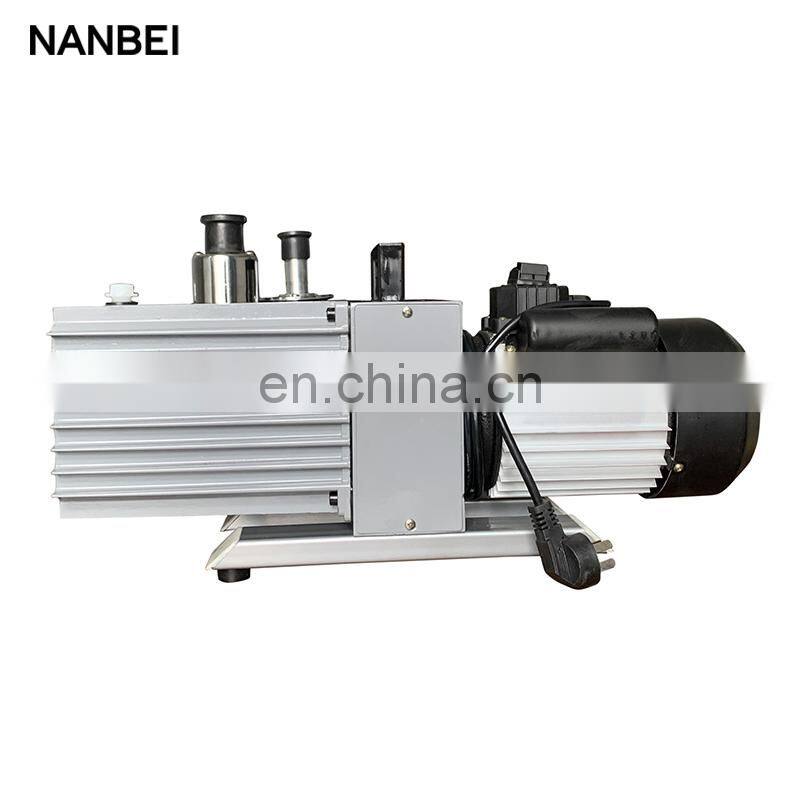

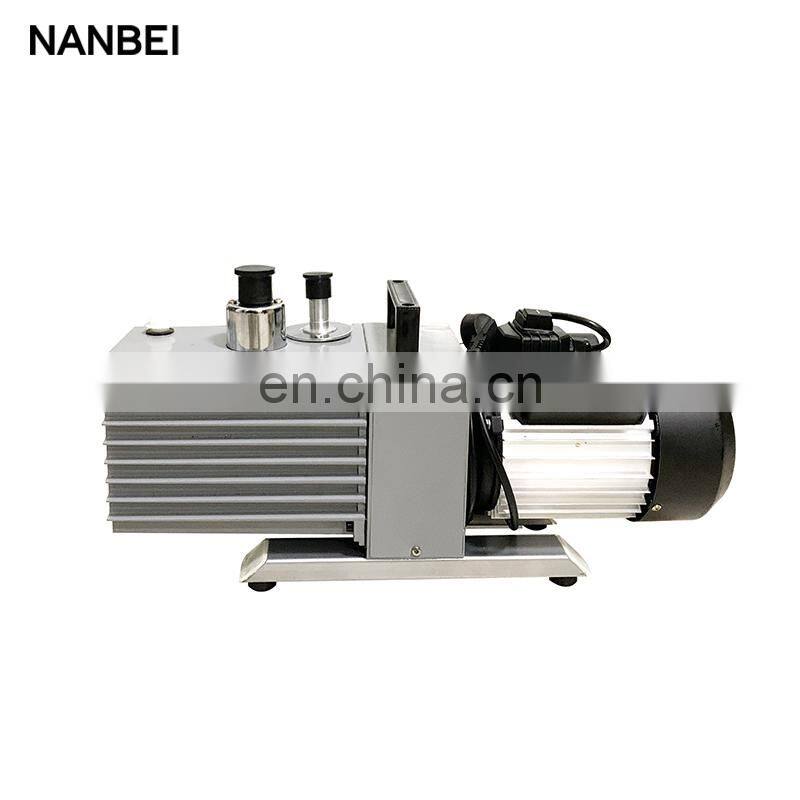

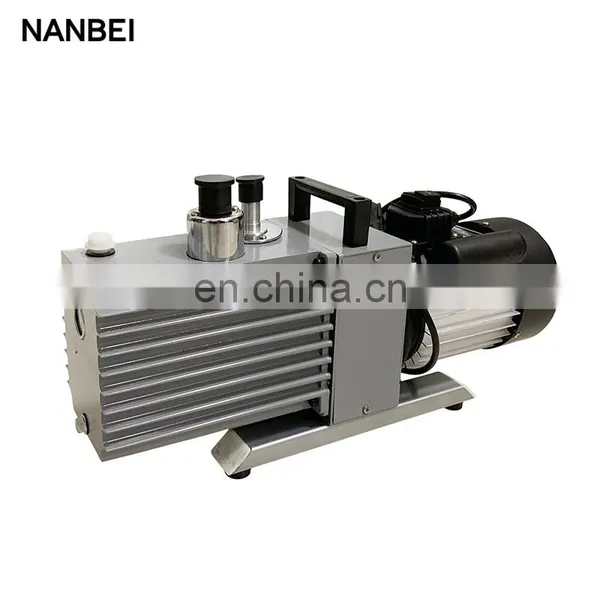

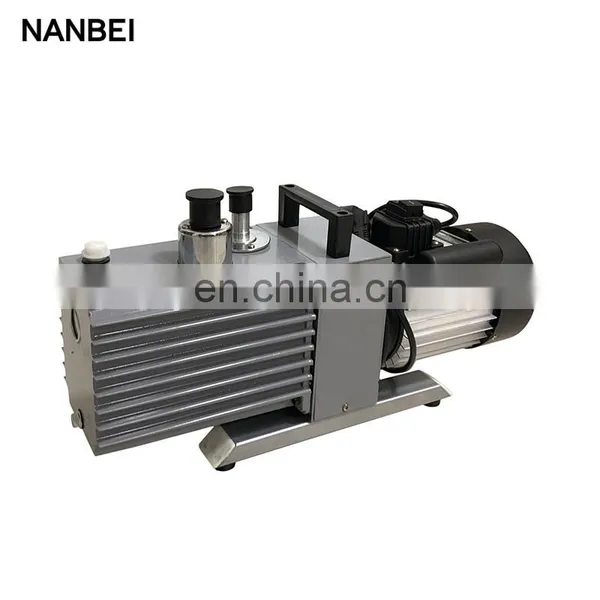

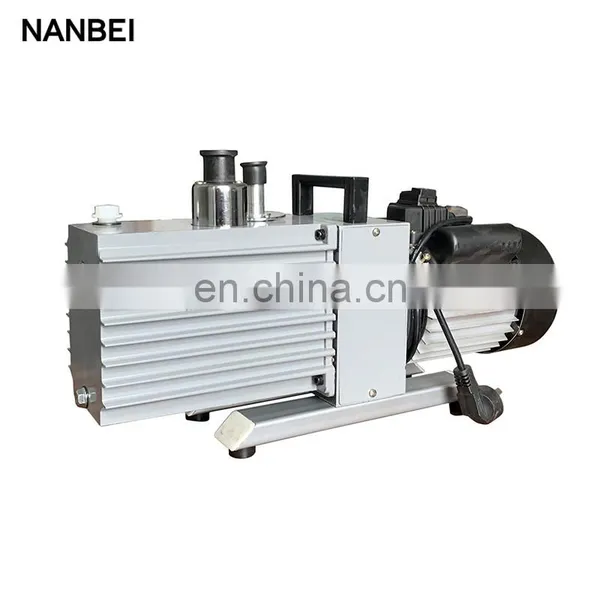

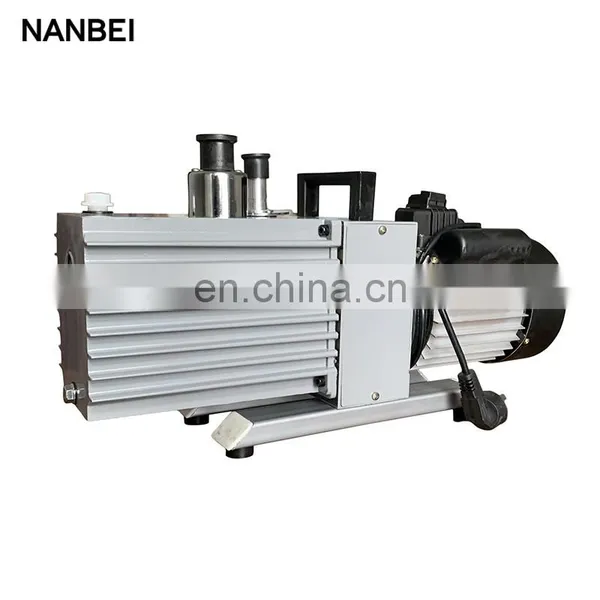

Anti-corrosive Double Stage Rotary Vane Vacuum Pump
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2015
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Portable Fast Testing Plant Photosynthesis MeterNegotiableMOQ: 1 -
Agriculture Grain Food Feed Halogen Moisture AnalyzerNegotiableMOQ: 1
-
Lab Vertical Horizontal Clean BenchNegotiableMOQ: 1
-
Laboratory Ultrapure UP Water Deionized RO Water EquipmentNegotiableMOQ: 1
-
China Factory Hospital Laboratory Medical Digital Low Speed 6 Tube Cytology Cell Smear Centrifuge MachineNegotiableMOQ: 1
Products Description
This series of pumps are elementary equipment for pumping air from sealed vessels. It can be used alone, also can be used as the forepump, process pump or titanium pump of booster pump, diffusion pump, and molecular pump.
The pumps are also used in making electrical vacuum cases, vacuum jointing, printing, photoengraving, food packaging, vacuum forming, refrigeration equipment repair and instruments or a set of equipments in laboratory, It is widely used in aerospace, semiconductor , coating , food packaging ,drying machines, refrigeration equipment, scientific research, medical treatment, electronics, chemicals, medicine and laboratory or laboratory of universities and colleges.
More Details
Specification
Product name |
Rotary vane vacuum pump |
||||||
Model |
2XZ-2 |
2XZ-4 |
|||||
Flow rate m3/h(L/S) |
50（HZ） |
7.2（2） |
14.4（4） |
||||
60(HZ) |
8.6（2.4） |
17.2（4.8） |
|||||
Ultimate pressure（Pa） |
Partial pressure |
≤6×10-2 |
≤6×10-2 |
||||
Full pressure |
≤1.33 |
≤1.33 |
|||||
50HZ |
Speed（r/min） |
1400 |
1400 |
||||
60HZ |
Speed（r/min） |
1720 |
1720 |
||||
Motor Power（kw) |
0.37 |
0.55 |
|||||
Voltage（V) |
220/380 |
220/380 |
|||||
Inlet port size（mm）（Outer diameter） |
φ30 |
φ30 |
|||||
Noise（dBA） |
68 |
68 |
|||||
Oil Capacity（L） |
1 |
1.2 |
|||||
Dimension（mm) |
514×168×282 |
565×168×282 |
|||||
Weight（Kg）Gross/Net |
22/20 |
24/22 |
|||||
