Product Description

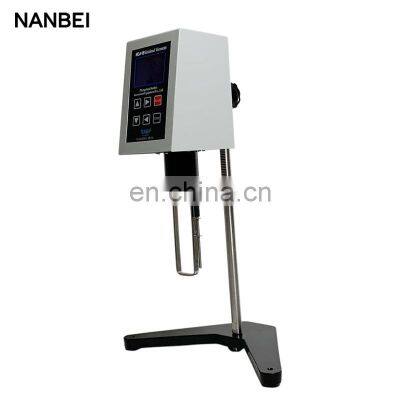

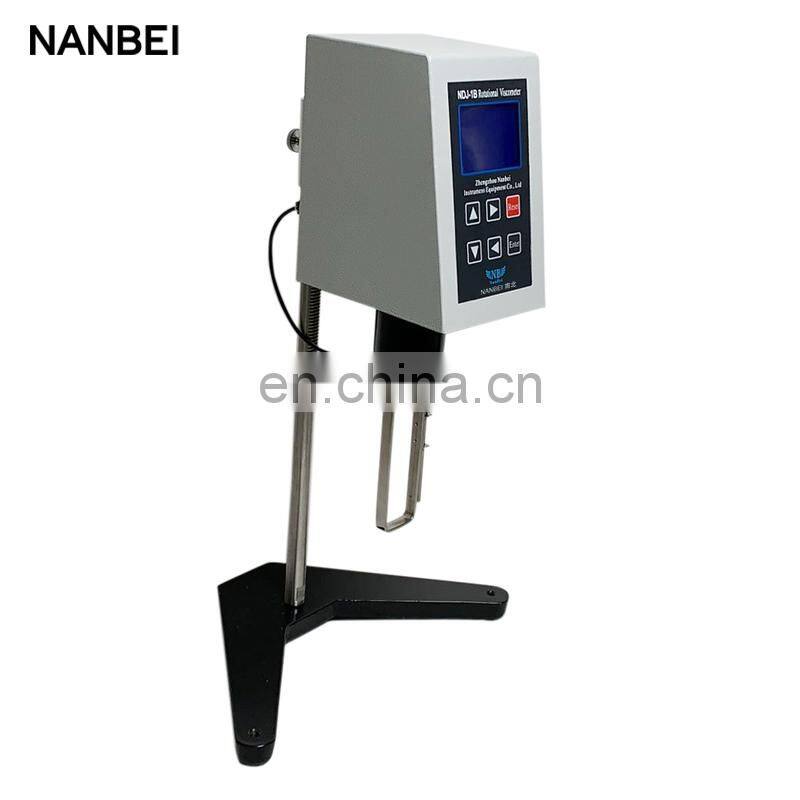

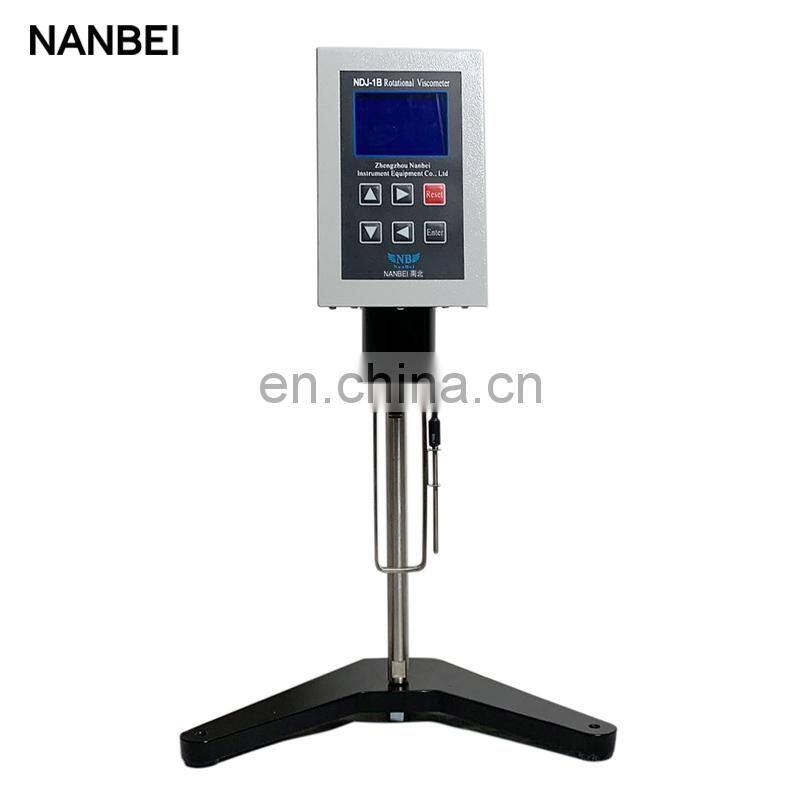

NDJ-1B Rotating Viscometer
Summary
NDJ-1B rotating viscometer adopts advanced mechanical design technology, manufacture technique and microcomputer controlling technology.It can collect data accurately. Using white background light and ultra-bright LCD, it can show test data clearly. Equipped with a special printer interface, it can print out measurement data through a printer.
The instrument has the characteristics of high sensitivity, reliability, convenience and good looking. It is used to determine absolute viscosity of Newtonian liquids and apparent viscosity of Non-Newton liquids. It is widely used to determine the viscosity of liquids such as greases, oil paints, plastics, pharmaceutics, coatings, adhesives, washing solvents, and other fluids.
More Details Photos
Specification
Measurement range (mPa.s) | 10 mPa•s～2000000 mPa•s |

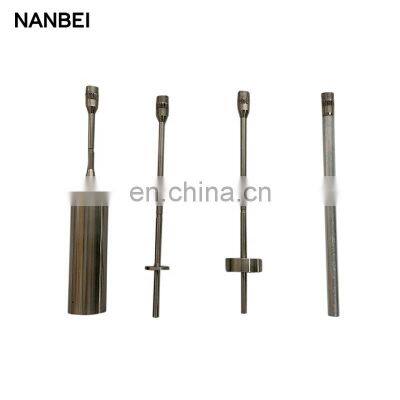

Spindle | No.1～No.4, total four spindles |
Rotation speed: | 0.3 RPM, 0.6 RPM, 1.5 RPM, 3 RPM, 6 RPM, 12 RPM, 30 RPM, and 60 RPM; 8 grades in total |
Measurement error | ± 1% (F•S) |
Power supply: | AC 220 V±10%, 50 Hz |
Ambient temperature | 5 ℃～35 ℃ |
Relative humidity: | ≤80% |
Printing output | needle printer |
Comunication port | RS232 port |
2. Optional parts
(1) HWY-10 Circulation Constant Temperature Water Bath 1 set
(2) Special double-layer sample cup as customer’s need
(3) No.0 spindle(low viscosity adapter)NDJ-5S Rotational Viscometer Accessories and Documents List
No. | Item | Unit | Qty | Remarks |
1 | Main unit of NDJ-1B rotational viscometer | Set | 1 | |
2 | No.1～No. 4 spindle | Piece | 1 for each | |
3 | Protection cover | Piece | 1 | |
4 | Stand column | Piece | 1 | |
5 | Pedestal(including two pieces of level adjustment bolts) | Pair | 1 | |
6 | Spindle protection holder | Piece | 1 | |
7 | Power supply adapter | Piece | 1 | |
8 | Printer（including connecting cable and power wire） | Set | 1 | Optional |
9 | Aluminum alloy case (including instrument head, spindle, spindle protection holder,etc) | Piece | 1 |
Recommendations
Company Profile
Customer Concerns
FAQ
Q1: Why Choose NANBEI ?
(1).Professional manufacturer with more than 13 years experience
(2).Exported to more than 97% Countries
(3).Turnkey Solution is no problem
Q2:OEM,ODM acceptable or not?
Absolutely Yes
Q3:What's kind of Payment terms for customer choosing?
T/T ,Western Union, Money Gram , Credit Card, Paypal , L/C ...
Q4:Can we visit your factory online?
Absolutely no problem
Q5:Can online video inspection before shipment?
Absolutely no problem
Q6: what's the MOQ ? Sample order is OK?
MOQ:1 set, sample order is no problem
Q7:What's kind of shipment for customer choosing?
Usually ship by sea, by air, by international express .
We can also provide reasonable solutions according to your transportation requirements
Q8:How to ensure product quality and after-sales service?
We have CE, ISO quality certificate, and SGS authentication.
After-sale service:
1.Warranty : 1 year
2.We supply free part for quality problem in warranty
3.Long life technical support and service
