High precision novel 107bn digital camera scanning electron microscope with reasonable price

Item

                    Specification

Outfits

Eyepiece

WF10×/22mm(23mm is optional)

√√

LWD Infinity Plan Objectives

LPL 4×/0.11

W.D.=12.1mm

*

LPLAN 10×/0.25

W.D.=8.3mm

√

LPLAN 20×/0.40

W.D.=7.2mm

√

LPLAN 40×/0.60

W.D.=3.4mm

√

LWD Infinity Plan Phase Contrast Objectives

LPL Ph P 10×/0.25

W.D.=8.3mm

*

LPL Ph P 20×/0.40

W.D.=7.2mm

√

LPL Ph P 40×/0.60

W.D.=3.4mm

*

Annular Spot

10×

*

20×/ 40× ( for both 20× and 40× )

√

Seidentopf
Trinocular Head

Inclined 45°, interpupilary distance: 48-76mm
Light distribution (both):
100: 0(100% for eyepiece)
80:20 (80% for trinocular head, and 20% for eyepiece)

√

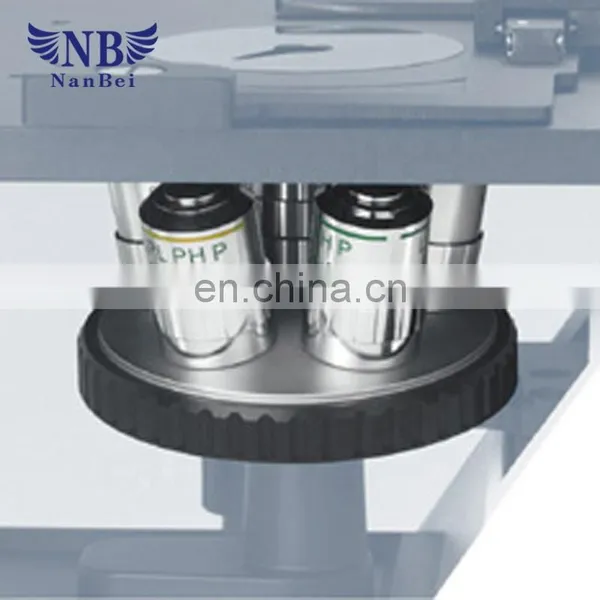

Nosepiece

Quintuple

√

Mechanical Stage

Stage size X×Y: 210×241mm, Round slide size : Φ110mm,  Attached mechanical stage. (available for 96 holes plate, moving range X×Y:×80mm.)

√

 Culture Dish Holder

65mm

*

54mm

√

35mm

*

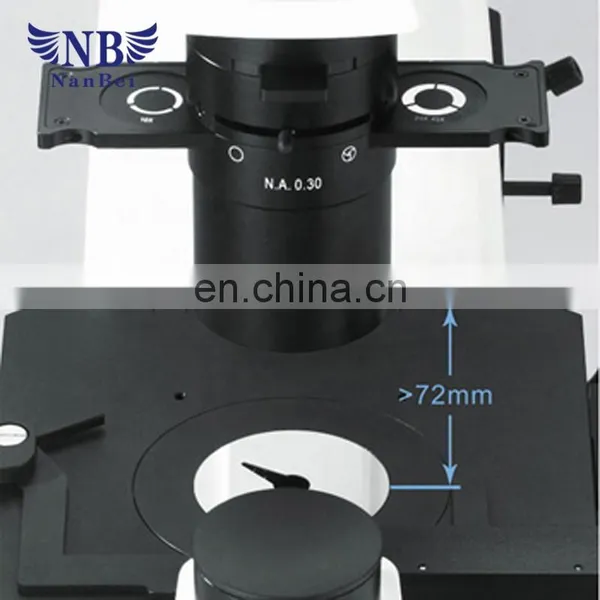

Condenser

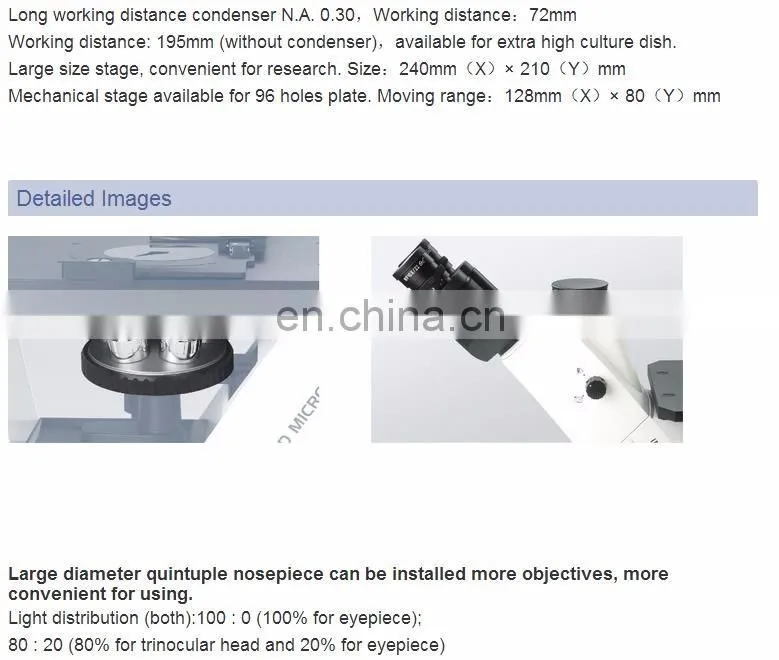

Long working distance, Quickly detachable , N.A.0.3,
Working distance: 72mm (with condenser),195mm(without condenser).

√

Koehler Illumination

6V/30W (input voltage:100V~240V)

√

            Filter

Blue

√

Green

√

Amber

*

Grey

*

   C-mount

1× C-Mount (better for digital photograph)

*

0.5× C-Mount ( focus adjustable, better for digital camera)

*

 Adaptor for Digital Photograph

Use for CANON/NIKON etc.

*

Epi Fluorescence Illumination

Epi fluorescence unit , field diaphragm,center adjustable.

*

100W mercury lamp (OSRAM)

*

B, G, V, UV fluorescence filters can be chosen.

*

Digital mercury lamp power box (input voltage:100V~240V)

*

Note: "√"In Table Is Standard outfits, "*" Is Optional Accessories.
Packing Size: 660mm×590mm×325mm Gross Weight: 18 kgs Net Weight: 13.5 kgs
