Product Description
Characteristic:
1. It adopts Infineon's single-chip microcomputer and Infineon's drive module, cooperates with independent research and development control board and high-torque AC variable frequency motor, which has stable operation and low noise, and provides a comfortable laboratory environment.
2. Fluorine-free refrigeration compressor unit and environmentally friendly refrigerant R404a, with a wide temperature control range: -20 °C - +40 °C, and can be set during the operation of the centrifuge; with pre-cooling function, can quickly cool down to the set temperature With standby cooling function, it can maintain the set temperature in standby mode; it has heating and defrosting function.
3. It has various early warning functions such as overspeed, over temperature, unbalance, under pressure and overpressure, three-stage damping and shock absorption, special combination damping device, which makes the motor run safely and reliably, prevent the sample from resuscending and achieve excellent centrifugal effect. .

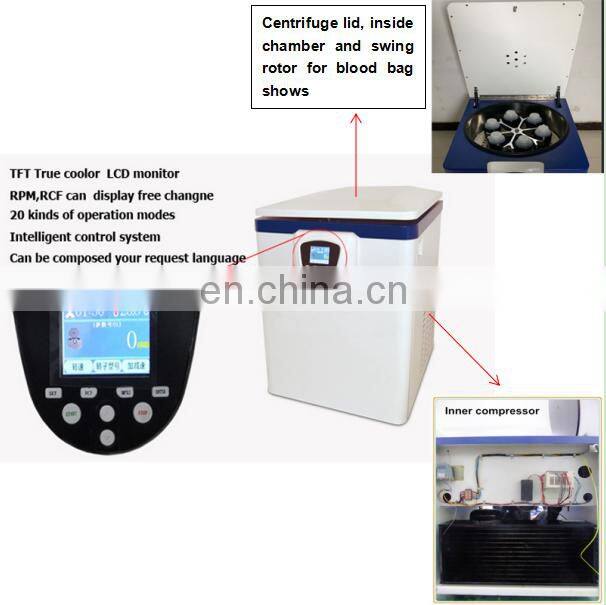

4. TFT-LCD true color display, touch screen button and physical button dual operation mode, with special button for centrifugal force display, display setting parameters and running parameters at the same time, can change parameters at any time during operation, no need to stop, intuitive operation interface, Simple and easy to use; the operation menu is available in multiple languages (Chinese, English, Russian, Portuguese).
5. Bio-safety airtight angle rotor adopts silicone rubber integral sealing ring (EU RoHS 2015/863), which can avoid aerosol spillage and fully guarantee the safety of workers and laboratory environment.
6. Rear austenitic 304 stainless steel centrifugal chamber with all-steel sprayed plastic shell, one-piece stamped steel front face and three-layer steel protective cover, etc., which are both durable and durable, ensuring the safety of workers and laboratories. .
7. The mute electromechanical motor door lock is easy to use. Simply close the door cover, the door lock system will be triggered and the door cover will be locked safely.
8.10 speed acceleration and 10 speed reduction rate control, can store 20 sets of user-defined programs, and can modify the control parameters of the running rotor at any time.
9. The chassis has casters and carbon steel caster adjustment blocks to facilitate the movement and level adjustment of the centrifuge.
10. With CFDA filing and CFDA production qualification, it has passed ISO 9001 certification and ISO 13485 certification
Specification
Product Model | DD5M |
Max Capacity | 6×500 ml |
Max Speed（（r/min） | 5000 |
Max Rcf（g） | 4800 |
Speed Accuracy | ±50r/min |
Control and drive system | AC variable frequency motor, microcomputer control |
compressor | Standard no cooling (Optional Refrigerated) |
Running program | 20set |
Temperature setting Range | Standard no including |
Temperature Accuracy | Standard no including |
Time Range | 1-99h59min |
Power | 0.8 KW/2.0KW(Refrigerated) |
Power supply | AC220V 50Hz |
Noise Level | ≤65 dB |
SIZE（L×W×H） | 740×620×900 mm |
Weight | 85 Kg/180Kg（Refrigerated） |
Rotor Spec: | Capacity | Speed | RCF |
Swing rotor | 6×500 ml | 3600 | 2850 |
4×500 ml | 4000 | 3580 | |
4×250 ml flat bottom | 4000 | 2780 | |
4×100 ml | 5000 | 4800 | |
16×15ml/10ml | 4000 | 2960 | |
32×15ml/10ml | 4000 | 2960 | |
8×50 ml | 4000 | 2960 | |
48×5 ml Vacuum blood collection tube | 4000 | 2960 | |
48×5 ml/2ml Vacuum blood collection tube | 4000 | 2960 | |
76×5 ml/2ml Vacuum blood collection tube | 4000 | 3080 | |
Swing rotor | 148×5 ml/2ml Vacuum blood collection tube | 4000 | 3420 |
Swing micro-plate rotor | 2X2X96hole | 4000 | 2360 |
