Digital camera inverted xsz 107bn biological microscope
1.Feature and Description
1.seamless connection of the integrated digital fuselage, with dust, moisture, disassembly characteristics
2.High-resolution imported CMOS progressive scan color image sensor
3.Powerful OPTPro micro image analysis software
asurement, counting, image stitching, integration and other professional features
5.Ideal for digital interactive classrooms

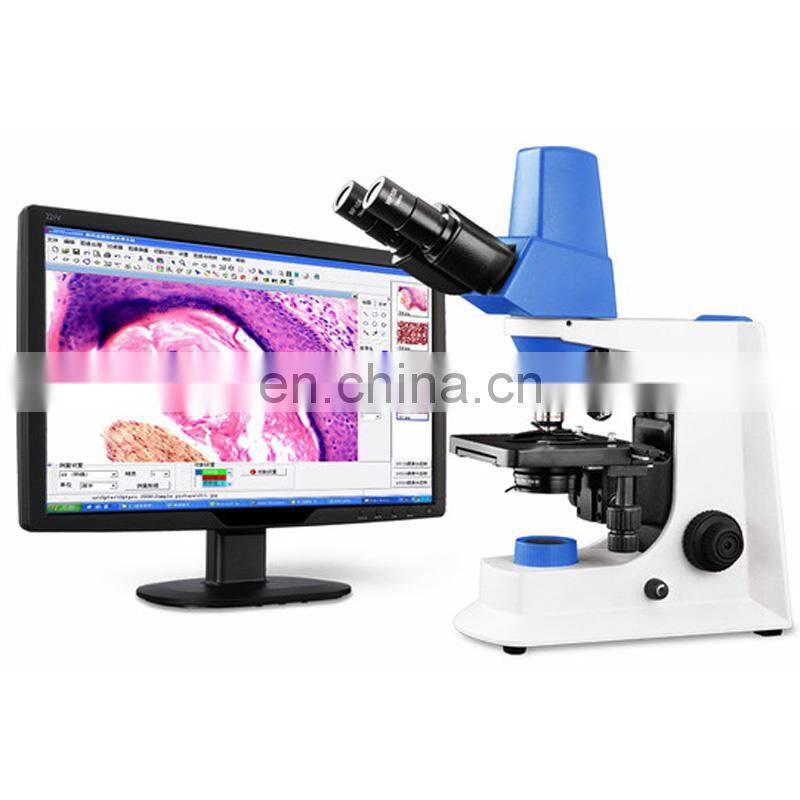

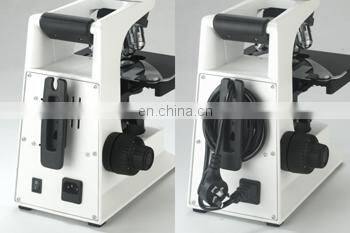

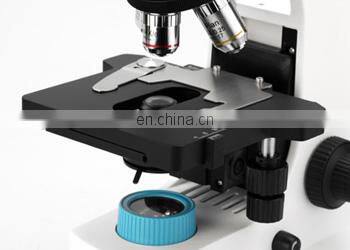

2.Picture for Our product
3.Usage and Application

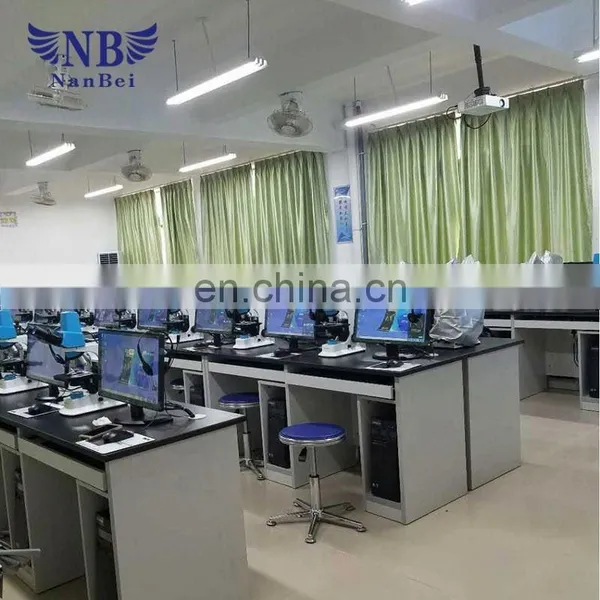

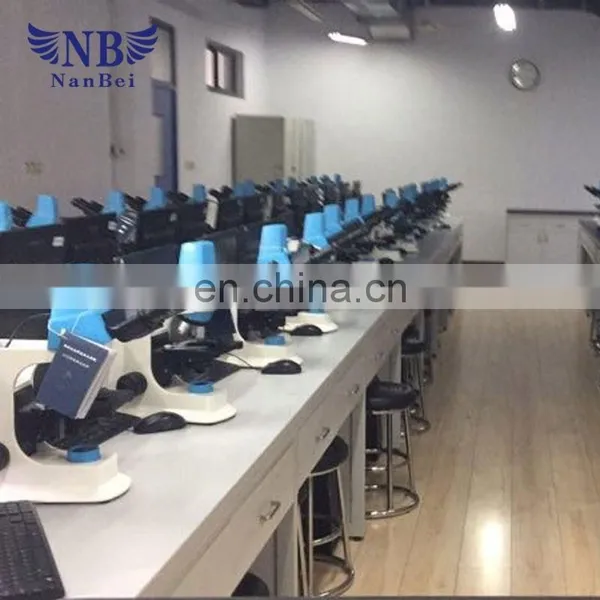

Applicable to medical laboratory, laboratory research, university and college teaching
4.Technical data
Parameter
|
Image acquisition equipment |
3.2 million pixels 1/2 "CMOS Progressive scanning of color image sensors |
5 million pixels 1/2 "CMOS Progressive scanning of color image sensors |
|
|
Resolution |
2048 × 1536 pixels (max) |
2952 × 1944 pixels (max) |
|
|
Frame rate |
15~30 fps |
15~30 fps |
|
|
Optical camera lens |
0.5× |
||
|
data transmission |
Plug and play USB2.0 image data interface, transfer rate 480mps, no external power supply |
||
|
operating system |
Support Windows operating system |
||
|
Image analysis software |
OPTPro digital microscopic image analysis software |
|
|
Supporting
|
Name |
specification |
Configuration |
|
Host |
Infinite Distortion Correction Optical System |
Y |
|
eyepiece |
WF10X/20mm |
Y |
|
Infinity field Achromatic objective lens |
EPLAN 4X/0.10 |
Y |
|
EPLAN 10X/0.25 |
Y |
|
|
EPLAN 40X/0.66(S) |
Y |
|
|
EPLAN 100X/1.25(S,Oil) |
Y |
|
|
Observation tube |
320/500 megapixel built-in integrated digital observation head |
Y |
|
converter |
Inclined internal positioning four-hole converter (optional for five-hole converter) |
Y |
|
Object table |
Mechanical moving stage, an area of 145 mm × 140 mm, imported triangular guide, Moving range 76 mm × 52 mm, the cursor scale 0.1mm, double clip structure |
Y |
|
Condenser |
Abbe chisel, N.A.1.25, with variable light bar |
Y |
|
Focusing device |
Coaxial focus, coarse stroke 26mm, fine-tune the grid value of 2μm, coarse tune with elastic adjustment |
Y |
|
Lighting |
3W-LED cold light source (wide voltage input: 100V ~ 240V), brightness adjustable |
Y |
|
6V / 20W halogen (wide voltage input: 100V ~ 240V), brightness adjustable |
O |
|
|
Phase contrast device |
10X/20X/40X/100X Unlimited field field phase contrast lens and phase contrast board |
O |
|
Dark field device |
Dark field condenser (dry, wet) |
O |
|
Polarizing device |
Polarizer, analyzer |
O |
note:“Y”Essential parts,“O”Optional parts
5.Packing and Shipping
Carton Case
1. How can I choose the suitable one?
Dear customer, please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.
2. Does your price is competitive?
Dear customer, we make sure to offer you the best quality with competitive price.
3. How can I pay?
Dear customer, we accept many payment term, such as T/T, Western Union…
4. When I receive it after pay?
Dear customer, normal models can be delivered with 5-7days, please contact us to check transport time to your address.
5. How to deliver?
Dear customer, we can send by Express, by Sea and by Air.
6. Is will be broken during transport?
Dear customer, please do not worry, we do standard export package.
7. What should I do if I do not know how to use?
Dear customer, please do not worry, manual user will be sent together, you can also contact us with more technological support.
8. What should I do if some parts broken?
Dear customer, please do not worry, we have 12months warranty except wear parts. You can also buy parts from us after 12months.
1.Company Show

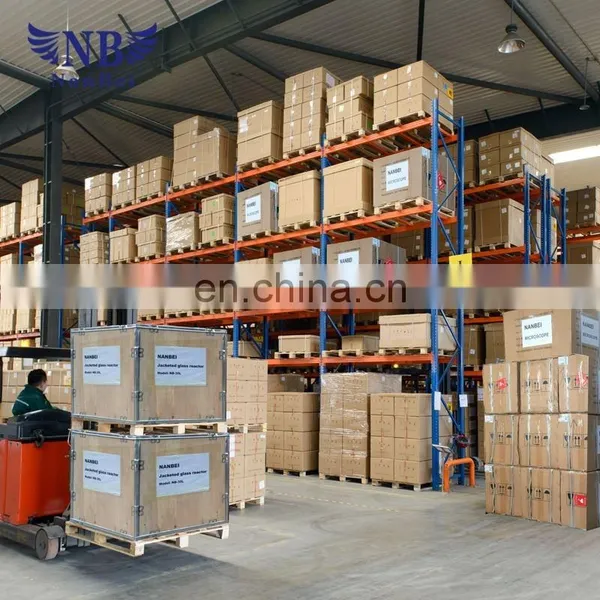

2.Factory Show
1.Certification
2.Warranty And After-sale Service
♥♥We Supply 1 Year Warranty , And Lifelong Free Technical Guiding And Training♥♥
