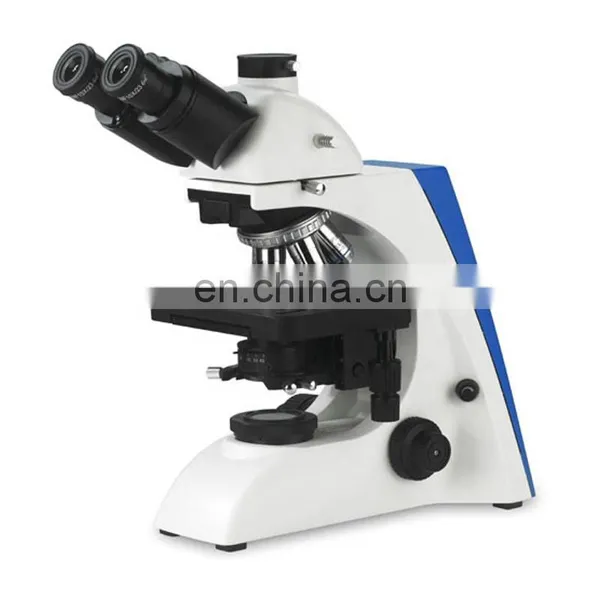

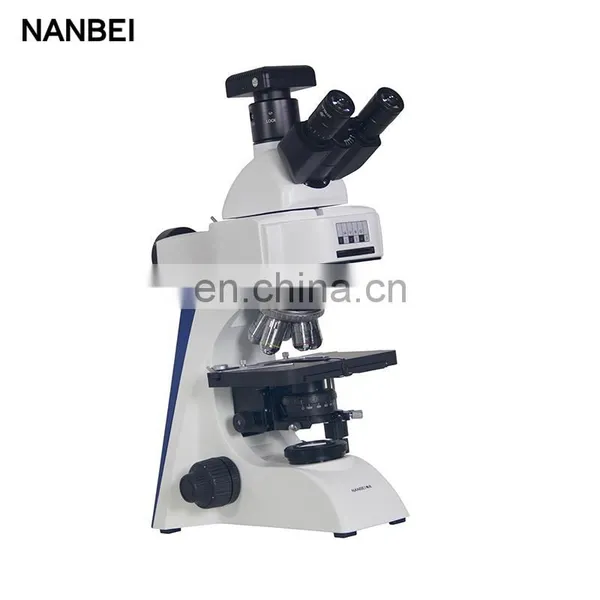

BK Series Biological Microscope BK5000 binocular microscope price

Technical Data

Items	Specification	BK300	BK5000

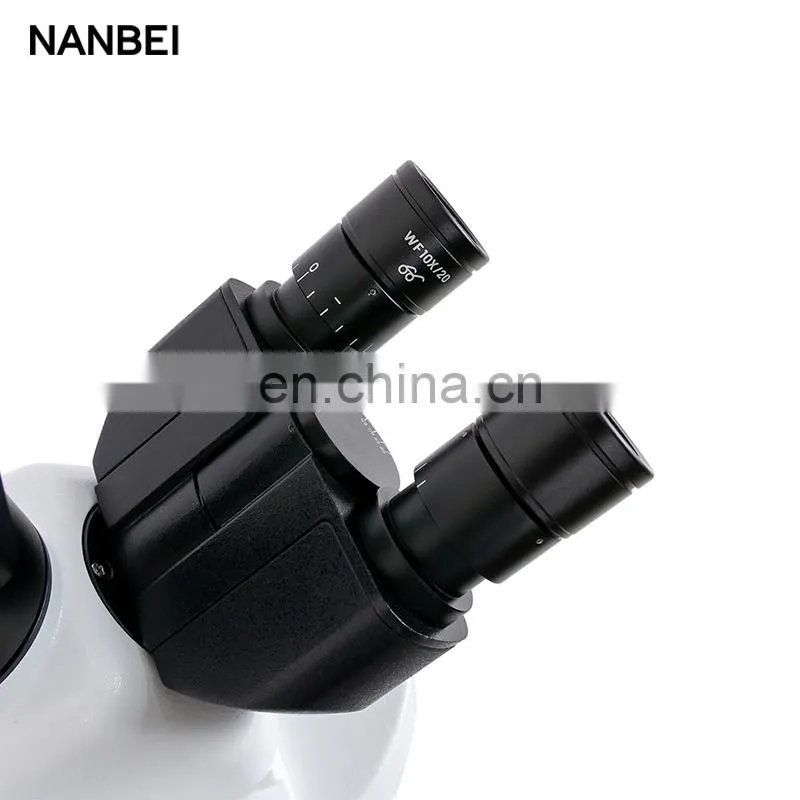

Eyepiece	WF 10X-18 mm	♦♦	◊◊
	WF 10X-20 mm	◊◊	♦♦
	WF 16X-13 mm	◊◊	◊◊
	WF 10X-18 mm ( 0.1mm)	◊	◊
	WF 10X-20 mm ( 0.1mm)	◊	◊
Plan Objective	4X /0.10	♦
	10X /0.25	♦
	40X /0.65 (S)	♦
	100X /1.25 (Oil) (S)	♦
	20X /0.40	◊
	60X /0.80(S)	◊

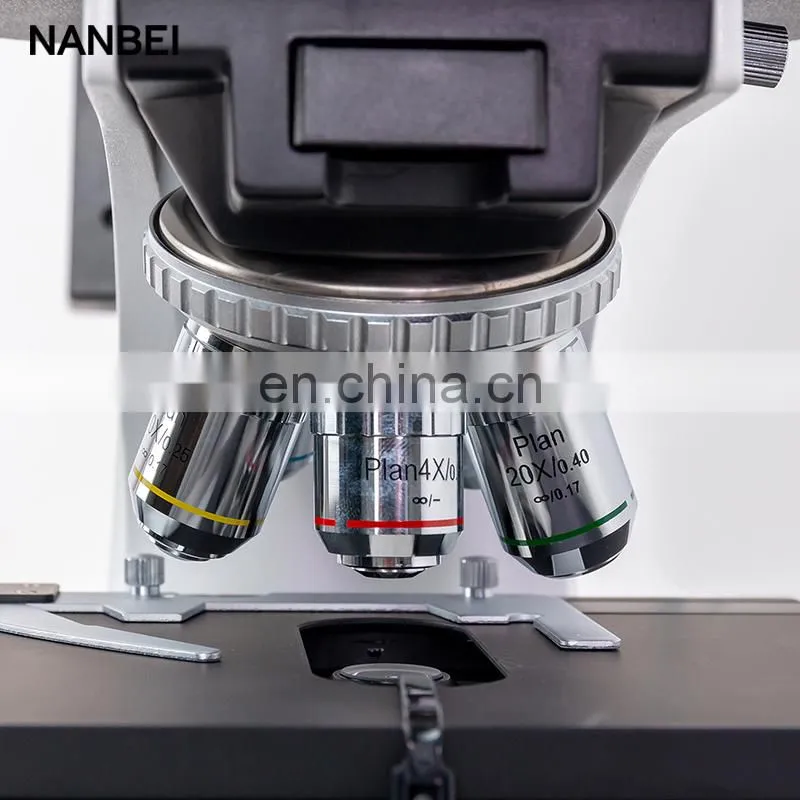

Infinity Plan Objectives	4X /0.10		♦
	10X /0.25		♦
	20X /0.40		♦
	40X (S) /0.66(S)		♦
	100X /1.25(Oil) (S)		♦
	2.5X /0.07		◊
	60X /0.80(S)		◊
Seidentopf Binocular Head	Inclined 30°,Rotatable 360°, Interpupilary Distance 50 -75mm	♦	♦
Trinocular Head	Inclined 30°,Rotatable 360°, Interpupilary Distance 50 -75mm, Light Distribution: 100: 0 / 80:20	◊	◊

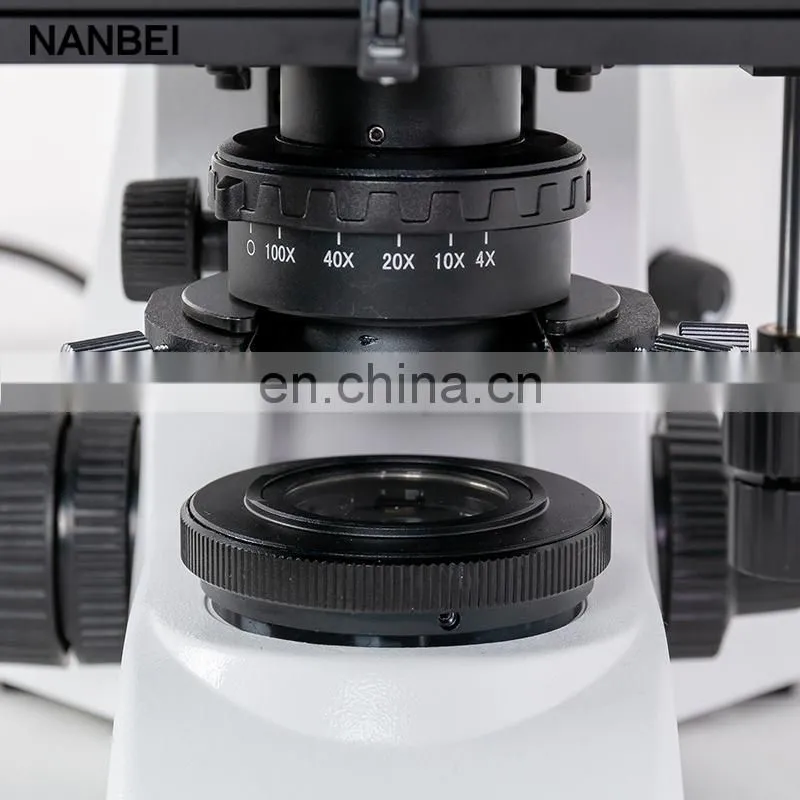

Nosepiece	Quadplex	♦	◊

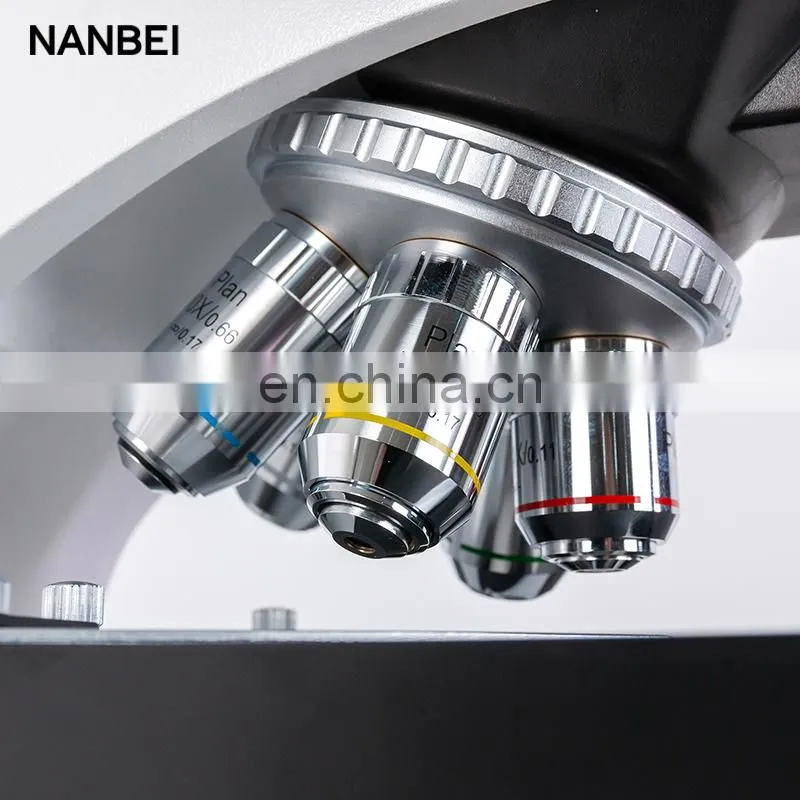

Nosepiece	Quintuple	◊	♦
Mechanical Stage	Stage Size: 190X140mm,Travel: 78mm×55mm Coaxial Coarse and Fine Focusing Knobs Two Slide Holder	♦	♦
Condenser	Abbe N.A. 1.25 (Iris Diaphragm)	♦	♦
Condenser	Swing out condenser N.A.0.9/0.13	◊	◊
Koehler Illumination	6V/20W Halogen Lamp	♦	♦
	6V/30W Halogen Lamp	◊	◊
	3W-LED Illumination	◊	◊
Polarizing Attachment	Analyzer / Polarizer	◊	◊
Phase Contrast Unit	Quintuple hole turret 10X /20X /40X /100X phase contrast objective		◊
Phase Contrast Unit	Independent slot 10X /20X /40X /100X phase contrast objective		◊
Dark Field Unit	N.A.0.9 (Dry)	◊	◊
C-mount	1X	◊	◊
C-mount	0.57X (Focus adjustable)	◊	◊

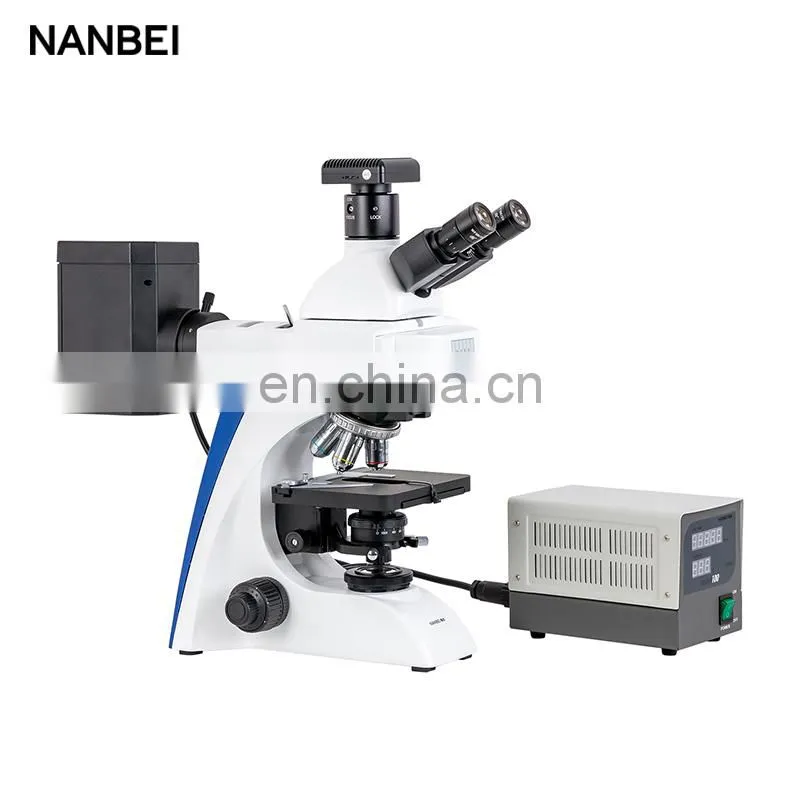

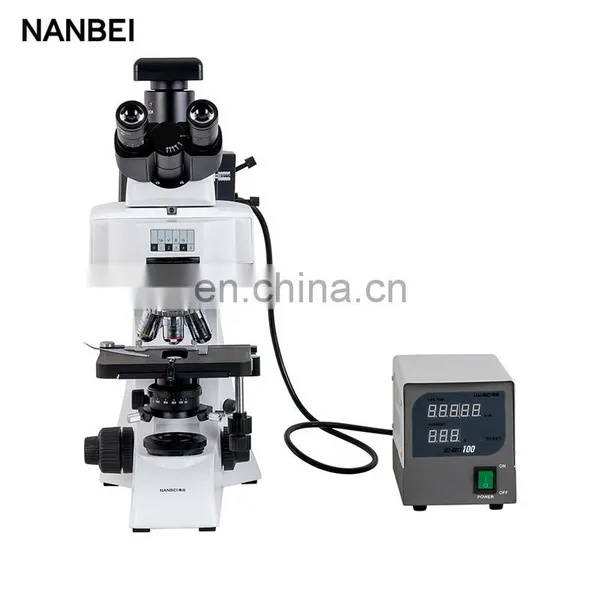

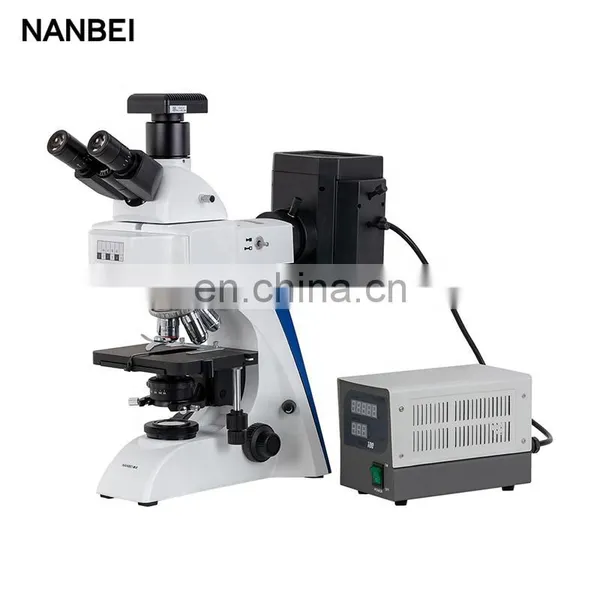

Fluorescence Attachment	Epi Fluorescence unit ( six-hole disc,U/V/B/G)	◊	◊
Fluorescence Attachment	Epi Fluorescence unit (three-hole slide,B/G)	◊	◊
Field Diaphragm		♦	♦
Filter	Blue	♦	♦
	Green	◊	◊
	Amber	◊	◊

Note: “ ♦ ”In Table Is Standard Attachment. “ ◊ ” Is Optional Accessories
