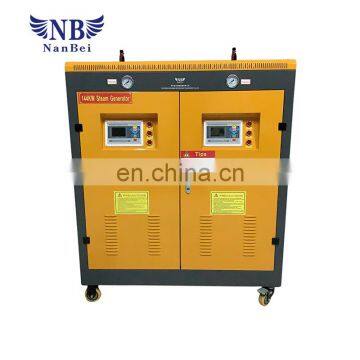

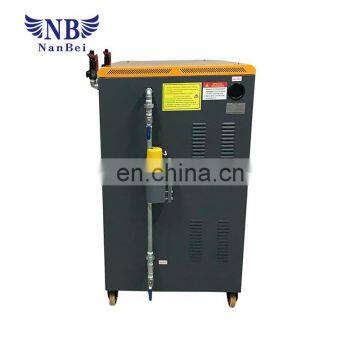

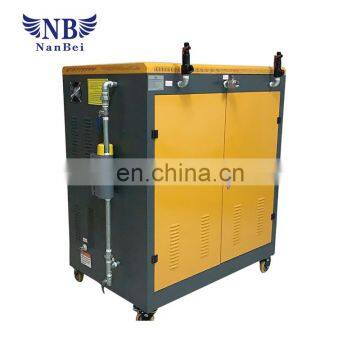

Great quality competitive price 144KW electric steam generator
Product features:
1. Unique internal structural design
The product volume is less than 30L, and it is not required to apply for boiler use certificate within the scope of national boiler exemption. The built-in steam-water separator solves the problem of steam-bearing water and ensures the high quality of steam.

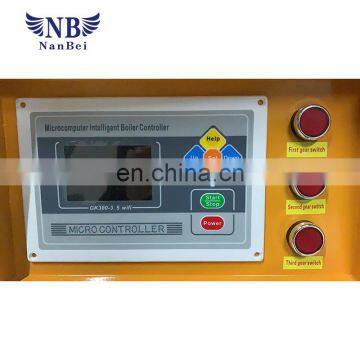

2. One-step electronic control system
The boiler operating system is fully automatic control, so the control parts are all concentrated on one computer control board.
3. Multiple chain security protection
The product is equipped with overpressure protection such as safety valve and pressure controller verified by boiler inspection; at the same time, it has low water level protection, and the boiler will automatically stop working when the water supply is stopped. Leakage protectors make the safety of operators and equipment more secure.4. Use electricity to be more environmentally friendly and more economical
The Technical data:
|
1, |
Name |
Steam generator |
|
2, |
Model |
NBLDR0.2—0.4 |
|
3, |
Powder |
380V/50HZ |
|
4, |
Rated power |
144 KW |
|
5, |
Evaporation |
200kg/h |
|
6, |
Using fuel |
Electric |
|
7, |
Saturating temperature |
150 Celsius |
|
8, |
Work pressure |
0.4Mpa |
|
9, |
Steam outlet |
DN25 |
|
10, |
Sewage caliber |
DN25 |
|
12, |
Packing Dimension |
1530 x 940 x 1540mm |
|
13, |
G W |
370KG |
|
Model |
NB-3KW |
NB-6KW |
NB-9KW |
|
Rated electric power |
3KW |
6KW |
9KW |
|
Rated voltage |
220V |
380V |
380V |
|
Pump power |
0.35KW |
0.35KW |
0.35KW |
|
Power wiring section standard |
4mm2 |
4mm2 |
6mm2 |
|
Main steam valve caliber |
DN15 |
DN15 |
DN15 |
|
Safety valve caliber |
DN15 |
DN15 |
DN15 |
|
Inlet diameter |
DN15 |
DN15 |
DN15 |
|
Sewage caliber |
DN15 |
DN15 |
DN15 |
|
Model |
NB-18KW |
NB-24KW |
NB-36KW |
|
Rated electric power |
18KW |
24KW |
36W |
|
Rated voltage |
380V |
380V |
380V |
|
Pump power |
0.35KW |
0.35KW |
0.35KW |
|
Power wiring section standard |
6mm2 |
10mm2 |
10mm2 |
|
Main steam valve caliber |
DN15 |
DN15 |
DN15 |
|
Safety valve caliber |
DN15 |
DN15 |
DN15 |
|
Inlet diameter |
DN15 |
DN15 |
DN15 |
|
Sewage caliber |
DN15 |
DN15 |
DN15 |
