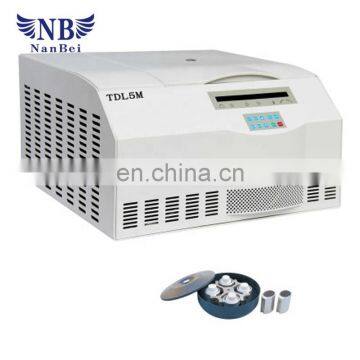

TDL5M large capacity refrigerated centrifuge for laboratory use
TDL5M large-capacity refrigerated centrifuge
Features:
1. Brushless frequency motor for model TDL5M and brushless DC motor for TDL5 which in great torque, free maintenance, no carbon dust pollution, quick in speed up and down.
2.Import compressors fluorine free, double cycle cooling, cold and hot alternating easily, free environment pollution and precise in temperature control..
3. Microprocessor control, digital display which indicates the speed, time, RCF in operation, speed raising and reducing quickly, operate simply. Running parameter can be edited.
4. 10 kinds of program stored in the memory, 10 kinds of accelerating and decelerating speed for your choice.
5. Automatically electric lid lock, super speed, over temperature protection and imbalance protection. The centrifuge body is made of high quality steel, safe and reliable.
6. Rotor is connected to spindle by specialized taper sleeve, loading simple and quick, no direction.
7. There are several kinds of rotors for your choice, adapters can be designed by experimental requirements.
8. 3 tiers protection steel cover and get the ideal centrifugation result.
Technical parameters:
|
Max speed
|
5000r/min | Max RCF | 4730*g |
| Time range | 0~99H59min | Sspeed accuracy | ±50r/min |
| Capacity | 4*500ml | Noise | 65dBA |
| Weight | 125KG | Dimension | 690*715*430mm |
| Packaged weight | 138KG | Packaged dimension | 875*785*560mm |
| Temperature range | -20~40°C | Temperature accuracy | ±1°C |
| Power | AC110/220V, 50-60HZ,15A | Rotor identification | Automatic identification |
| Package | wooden box |
Partial Rotors for TDL5M:
|
Order No.
|
Rotor | Max speed (rpm) | Max capacity( ml) | Max RCF(*g) |
| 30695 | Swing rotor | 4000 | 2*500ml | 3380 |
| 30696 | Swing rotor round cup | 4000 | 4*500ml | 3380 |
| Swing rotor elliptic cup | 4*500ml | 3940 | ||
| 30592 | Swing rotor | 4000 | 4*250 | 2920 |
| 30589 | Swing rotor | 4000 | 88*5ml vacuum tube | 2840 |
| 124*5ml vacuum tube | ||||
| 30590 | Swing rotor |
4000 | 88*7ml vacuum tube | 3140 |
| 124*7ml vacuum tube | ||||
| 30691 | Plate bucket | 4000 | 2*4*96holes | 2490 |
| 30694 | Plate bucket | 4000 | 4*4*96holes | 2840 |
| 30676 | Plate bucket | 4000 | 2*3*48holes | 2300 |
| 30679 | Swing rotor cubic cup | 4000 | 4*500ml | 3310 |
| 31377 | Swing rotor multi pipe | 5000 | 4*50ml | 4730 |
| 4*100ml | ||||
| 31378 | Swing rotor multi pipe | 4000 | 8*100ml | 3020 |
| 8*50ml | 3200 | |||
| 16*15ml | 3200 | |||
| 24*15ml | 3200 | |||
| 32*15ml | 3200 | |||
| 48*7ml | 2880 | |||
| 32*10ml | 2790 | |||
| 24*10ml | 2790 | |||
| 16*10ml | 2790 | |||
| 30638 | Angle rotor | 5000 | 6*15ml | 2540 |
| 30607 | Angle rotor | 4000 | 12*15ml | 3080 |
| 30639 | Angle rotor | 5000 | 24*15ml | 3500 |
| 30640 | Angle rotor | 5000 | 4*50ml | 2520 |
| 30611 | Angle rotor | 5000 | 6*50ml | 2850 |
| 30641 | Angle rotor | 5000 | 12*50ml | 3860 |
| 30642 | Angle rotor | 5000 | 24*50ml | 2970 |
| 30613 | Angle rotor | 5000 | 4*100ml | 2630 |
| 30614 | Angle rotor | 5000 | 6*100ml | 3130 |
| 30643 | Angle rotor | 4000 | 12*100ml | 2970 |
| 30627 | Angle rotor | 5000 | 30*15ml | 3830 |
Packaging:Wooden case.
Shipping:by sea, by air, by express door to door service.
1.How to pick up the best among these models?
A:Tell us your request on product and almost target price,we recommend you the most suitable model. Selling you the most expensive product is not our goal,selling you the most suitable is!
2.How to place order or pay?
A:First, you can place order to us directly,we offer you PI (contract) with bank information, you pay here,we ship the product,Every process is based on PI.
Second,you can place order on directly, you pay online,after we confirm with them,we will ship the products on time.
3.How to transport the product?
A: Depending on the quantity and what kind of machine you order or whether you are urgent or not to check how big it is to check the freight.
By sea: More than 60kg or big quantity;Safe,cheap but slow;
Usually 11-30 days to North America;
30-45 days to Middle of South America;
40-60 days to South America;
15-28 days to South Africa;
25-33 days to Europe;
30-45 days to East Europe;
35-45 days to North Europe;
28-35 days to Mediterranean countries;
28-40 days to Middle East countries;
7-20 days to Southeast Asia countries;
By air to airport: Suit for big product or quantity but urgent a lot. Usually 7-10 days arrive. Some direct flight can arrive at 3-5 days.
By Express delivery such as DHL,FedEx,TNT: Suit for small or not too heavy and very urgent product. Generally 5-7 days arrive.
4.What kind of packing way for product?
A:Depends on which kind product you order;
For glass type product,it packed by wooden case,
For sea shipping product,usually packed wooden case;
For small and not easy break machines, usually packed by carton case;
All of the packing way is based on the safety of the machine,and the cost on freight,we will offer you the most suitable and safety packing way!
5.What kind of warranty will be offer?
A: Most of our product we offer 1 years warranty,except glass part. During the warranty time,any problem,we offer after-sale service; Any spare parts (Un-manual factors) broken, we offer free. Detail warranty information based on the product; Welcome our customer talk this with our sales directly,they will offer you more details;
