Special Designed for the 96-hole PCR Micro-Plate Centrifuge
Product description:

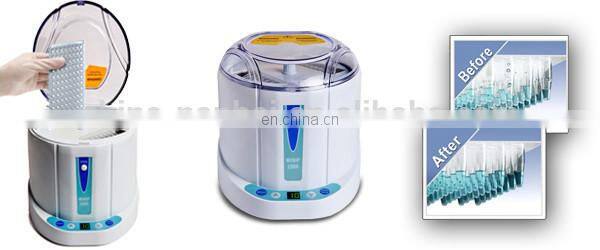

MINIP-2500 micro-plate centrifuge is a unique mini instantaneous centrifuge which is special designed for the 96-hole micro plates. It can quickly spin down droplets and condensation. It is used before and after thermal cycling to improve PCR yield. Put the micro plate from the slots of the top vertically (leakage for liquid will be kept in the micro plate under the action of surface tension), the spin-down work is easily finished. Two operation modes humanized configured – short mix and time setting operation, makes the experiment more convenient and efficient.
Product features
1. Wide applicable range. It suit for skirted, semi-skirted, non-skirted and all standard PCR plates.
2. Strong centrifugal power. Accelerate to 2500rpm quickly. From top speed to stop cost around 10 seconds.
3. Using DC brushless motor. Free of maintenance. Working stable and quietly.
4.Humanized design. Two modes - pressing for operating and setting time for operating - make
the experiments more convenient and efficient.
5.Smart size, simple operation. The cover can be fully opened to 95°, convenient to put and fetch the plates.
6. Quickly spin down droplets and condensation. Used before and after thermal cycling to improve PCR yield.
Technial data
Model |
MiniP-2500 Micro-Plate Centrifuge |
Capacity |
2 PCR Plates |
Rotor Speed |
2500 rpm |
G Force |
500 g |
Rotor |
Fixed Vertical |
Dimensions |
219 x 190 x 186 mm |
Weight |
3 KG |
Voltage |
AC100V-230V 50-60 Hz |

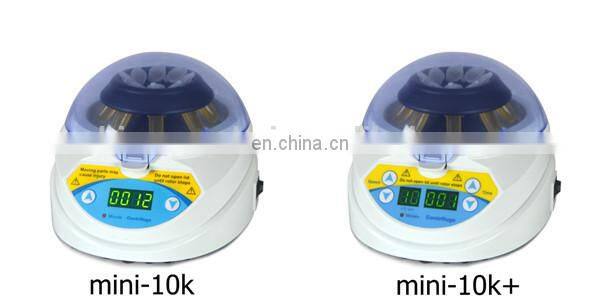

Other model we can supply as follows:

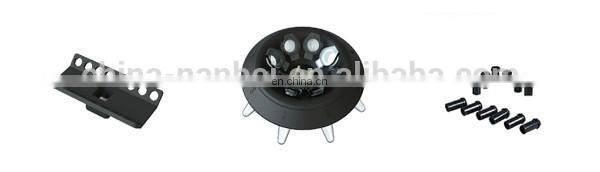

Parts:
Parameters
Model |
Mini-4K |
Mini-6K |
Mini-7K |
Mini-10K |
Mini-10K+ |
Speed |
4000rpm |
6000rpm |
7000rpm |
10000rpm |
3000rpm-10000rpm (step 1000rpm) |
Centrifugal Force |
1200g |
3000g |
3400g |
7500g |
1000g - 7500 g |
Sample Capacity |
8×2.0ml/1.5ml/0.5ml/0.2 ml tube (additional 0.5ml and 0.2ml tube carriers) 2 ×8×0.2ml PCR tube strip |
8×2.0ml/1.5ml/0.5ml/0.2 ml tube (additional 0.5ml and 0.2 ml tube carriers ) |
8×2.0ml/1.5ml/0.5ml/0.2 ml tube (additional 0.5ml and 0.2ml tube carriers) 2 ×8 ×0.2ml PCR tube strip(tube strip only used When speed≤6000rpm) |
||
Time Range |
1s - 99min59s |
1s - 999min |
|||
Noise |
≤45 dB |
≤55dB |
|||
Dimension |
176x156x121 (mm) |
||||
Net Weight |
≤1.5kg |
||||
Power |
220V/110V 50-60HZ |
||||
Applications
1. Extract serum from blood 2. Extract the supernatant from a variety of samples
3. Rapid subsidence of samples 4. Separation of trace blood cells
5. Microbial sample processing 6. PCR experimental division centrifuga
Certificate
After-Sale Service
We do not just sell equipment,we pay more attention to provide users with
high quality service!
