Class b Vertical High Pressure 100L Autoclave Sterilizer With Digital Display

Class b Vertical High Pressure 100L Autoclave Sterilizer With Digital Display thumbnail-1
Class b Vertical High Pressure 100L Autoclave Sterilizer With Digital Display thumbnail-2
Class b Vertical High Pressure 100L Autoclave Sterilizer With Digital Display thumbnail-3
Class b Vertical High Pressure 100L Autoclave Sterilizer With Digital Display thumbnail-4
Class b Vertical High Pressure 100L Autoclave Sterilizer With Digital Display thumbnail-5
Class b Vertical High Pressure 100L Autoclave Sterilizer With Digital Display photo-1

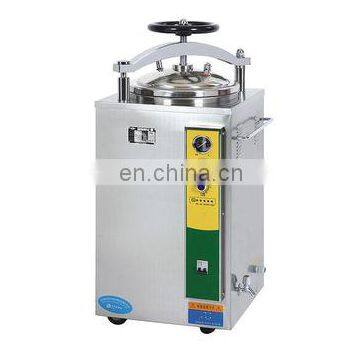

Class b Vertical High Pressure 100L Autoclave Sterilizer With Digital Display photo-2

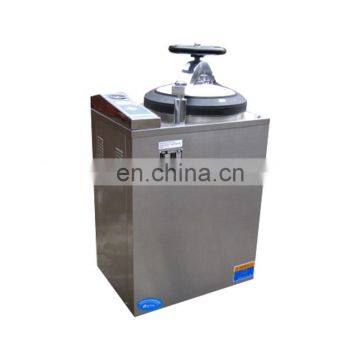

Class b Vertical High Pressure 100L Autoclave Sterilizer With Digital Display photo-3
Class b Vertical High Pressure 100L Autoclave Sterilizer With Digital Display photo-4

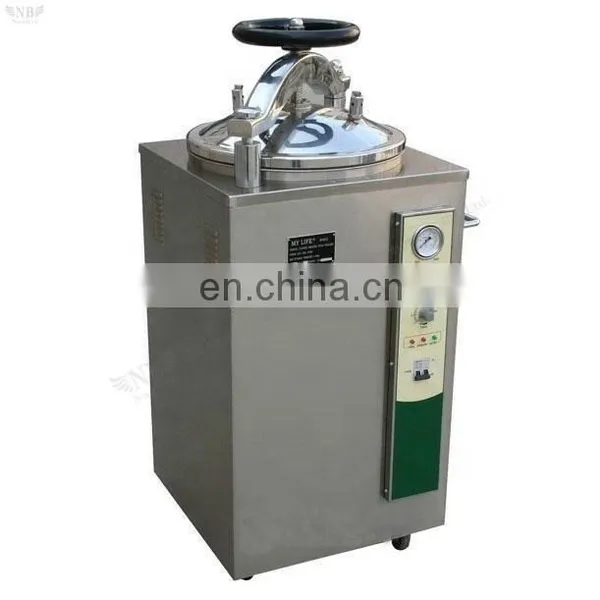

Class b Vertical High Pressure 100L Autoclave Sterilizer With Digital Display photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2015
Annual Export Value:
Below US$1 Million
Contact Supplier Request Quote Chat Now
Nanbei Instrument Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

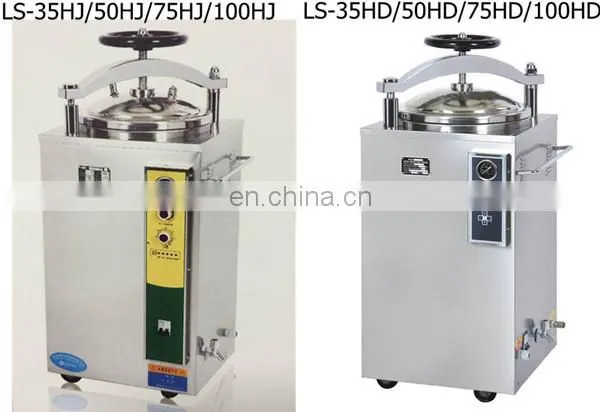

Vertical high pressure 100L autoclave sterilizer with digital display

Product Description

 Description:

1.Fully stainless steel structure



2.Hand wheel type of quick-open door structure



3.Door safety lock system



4.Digital display of working status,touch of key



5.Auto discharge the cool air,and steam discharging auto matically after sterilization



6.Over temperature&over pressure auto-protection



7.Safe protection of water lacking



8.Self-inflating type seal



9.Automatically shut off with beep reminding after sterilization



10.Used for sterilization of medical instruments, medical cotton products.



11.Fully stainless steel  SUS304/AISI 304 -3mm



12.24 months warranty



13.Possible to install drying system according request



Technical Data

 class b vertical high pressure 100L autoclave sterilizer with digital display

LS-35HD LS-50HD LS-75HD LS-100HD

Model

LS-35HD

LS-50HD

LS-75HD

LS-100HD

Chamber volume

35L(φ318×450)mm

50L(φ340×550) mm

75L(φ400×600) mm

100L(φ440×650) mm

working pressure

0.22MPa

0.14 MPa

Working temp.

134℃

126℃

Max working pressure

0.23 Mpa

0.165 Mpa

Heat average

≤±1℃

Timer

0~99min  or 0~99hour59min

Adjustment of temperature

105~134℃

 105~126℃

Power

2.5Kw/AC220V.50Hz

3Kw/AC220V.50Hz

4.5Kw/AC220V.50Hz

Overall dimension

450×450×1010(mm)

510×470×1130(mm)

560×560×1120 (mm)

540×560×1250 (mm)

Transport dimension

570×550×1150(mm)

590×590×1280(mm)

650×630×1280(mm)

680×630×1370(mm)

G.W/N.W

72Kg/56Kg

88Kg/ 68Kg

100Kg/ 80Kg

110Kg/ 85Kg

  class b vertical high pressure 100L autoclave sterilizer with digital display

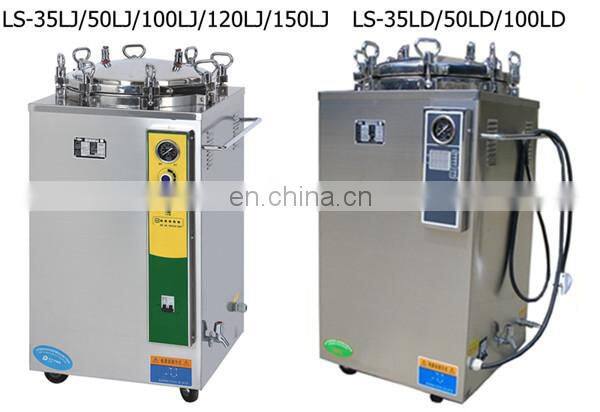

LS-35LD LS-50LD LS-75LD LS-100LD

Model

LS-35LD

LS-50LD

LS-75LD

LS-100LD

Chamber volume

35L(φ318×450)mm

50L(φ340×550)mm

75L(φ400×600)mm

100L(φ440×650)mm

working pressure

0.1-0.22MPa

Working temp.

120-134℃

Max working pressure

0.23 Mpa

Heat average

≤±1℃

Timer

0~99min or 0~99hour59min

Adjustment of temp.

105~134℃

Power

2.5Kw/AC220V.50Hz

3Kw /AC220V.50Hz

4.5KW AC220V.50Hz

Overall dimension

480×460×850(mm)

520×520×980(mm)

560×560×980(mm)

590×590×1080(mm)

Transport dimension

570×550×970(mm)

590×590×1110(mm)

650×630×1150(mm)

680×650×1220(mm)

G.W/N.W

56Kg/ 42Kg

68Kg/50Kg

90Kg/70Kg

105Kg/85Kg

class b vertical high pressure 100L autoclave sterilizer with digital display

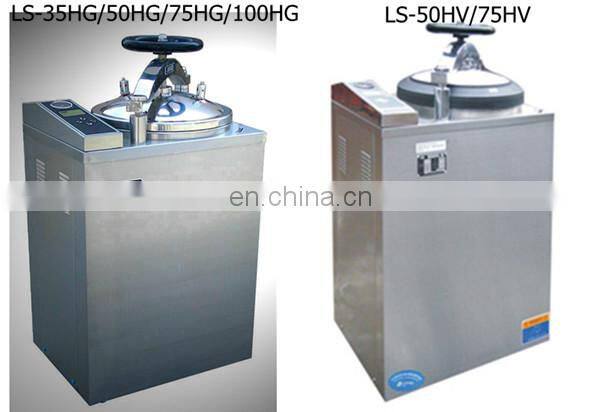

LS-35HG  LS-50HG  LS-75HG  LS-100HG

Model

LS-35HG

LS-50HG

LS-75HG

LS-100HG

Chamber volume

35L

(φ318×450)mm

50L

(φ340×550)mm

75L

(φ400×600)mm

100L

(φ440×650)mm

working pressure

0.22MPa

Working temp.

134℃

Max working

 pressure

0.23Mpa

Heat average

≤±1℃

Timer

0~99min or 0~99hour59 min

Adjustment

of temp.

0~134℃

Power

2.5KW/AC220V.50Hz

3KW /AC220V.50Hz

4.5KW /AC220V.50Hz

Overall dimension

600×410×1030mm

650×410×1140 mm

690×470×1140 mm

730×510×1270 mm

Transport dimension

730×500×1170 mm

730×500×1290 mm

760×550×1290 mm

820×600×1380 mm

G.W/N.W

96Kg/ 77Kg

102Kg/ 83Kg

120Kg/98Kg

135/110Kg

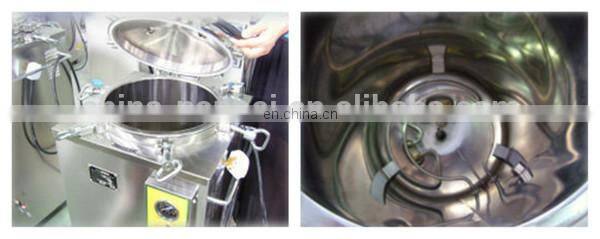

More Pictures

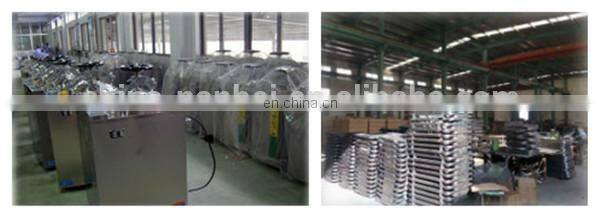

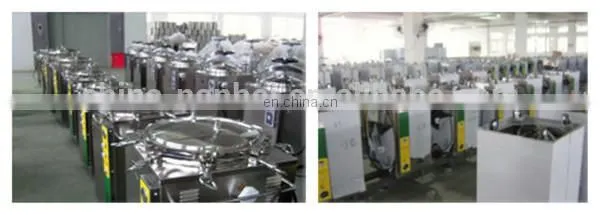

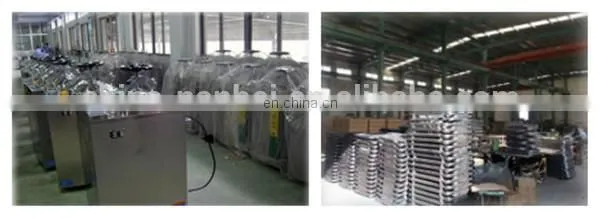

 Factory Pictures

class b vertical high pressure 100L autoclave sterilizer with digital displayclass b vertical high pressure 100L autoclave sterilizer with digital displayclass b vertical high pressure 100L autoclave sterilizer with digital displayclass b vertical high pressure 100L autoclave sterilizer with digital display

Packaging & Shipping

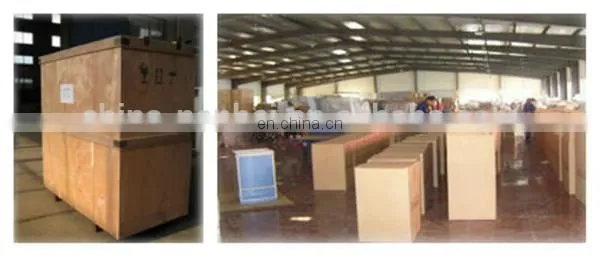

 Packing picture

class b vertical high pressure 100L autoclave sterilizer with digital display

Our Services

class b vertical high pressure 100L autoclave sterilizer with digital display

FAQ

class b vertical high pressure 100L autoclave sterilizer with digital display

Our Company

class b vertical high pressure 100L autoclave sterilizer with digital displayclass b vertical high pressure 100L autoclave sterilizer with digital display
