HENGTUO Fabric core conveyor belts can be divided into: cotton canvas (CC) conveyor belts, nylon (NN) conveyor belts, and polyester (EP) conveyor belts according to different skeleton layer materials.
Layered fabric core conveyor belts have different types according to the properties of rubber, including ordinary type, heat-resistant type, high-temperature-resistant type, burning-resistant type

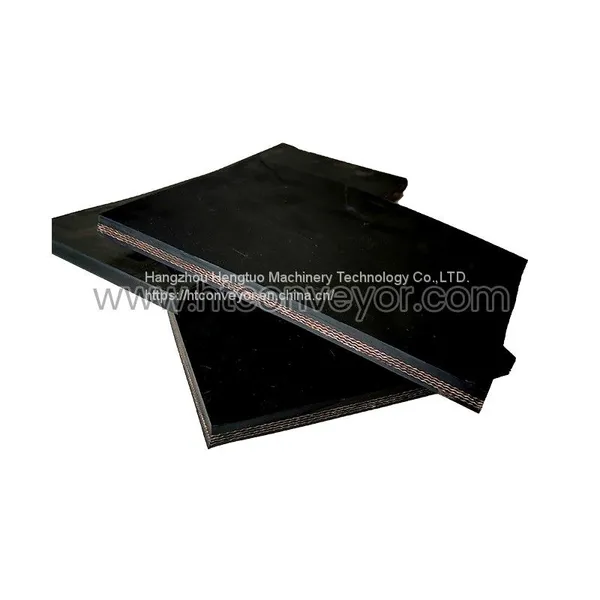

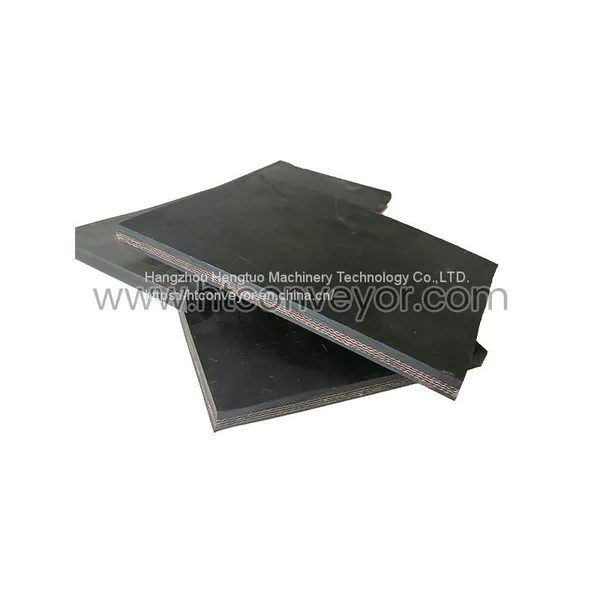

Construction of Fabric core conveyor belts
The design of multi- ply fabric conveyor belt enables application in all areas of material handing.t consists of rubber cover and core rubber.
Rubber cover is developed from blends of natural and synthetic rubber ,which is designed to protect the carcass from abrasion, impact, water and other injurious influences. It can be compounded to meet particular service conditions such as abrasion resistant, oil resistant ,heat resistant, flame resistant ,cold resistant , antic- -static and Chemical resistant etc.
Carcass consists of one or multiple plies of dipped synthetic reinforced fabric based on EP(warp- -Polyester +weft- Polyamide), NN(Nylon- -Nylon) or CC (Cotton-Cotton). It maintains the belt tension and supports the structure strength,which undertakes almost all the load during the work.
Core rubber has good fabric adhesion properties,which makes the fabrics bond tight.That can increase flex life and create a more elastic link, so that fabrics flex without separation when belt under working.
Rip stop conveyor belt with steel layer embedded between the cover and the carcass is designed to withstand the impact with sharp and extreme load materials. The special characteristic ensures the belt' s resistance to tearing.
Types of Fabric core conveyor belts:
1.According to the material of core: cotton canvas (CC) conveyor belts, nylon (NN) conveyor belts, and polyester (EP) conveyor belts according to different skeleton layer materials.
2.According to the properties: ordinary type, heat-resistant type, high-temperature-resistant type, burning-resistant type
Specification of Fabric core conveyor belts
Fabric Type |
Ply Strength(N/mm) |
Ply Thickness(mm) |
Cover Thickness(mm) |
No.s of Ply |
Width Range(mm) |
|
Top Rubber |
Bottom Rubber |
|||||
EP/NN 100 |
100 |
0.95 |
3.0
4.5
6.0 |
1.5
3.0
6.0 |
1~8 |
400~2200 |
EP/NN 125 |
125 |
1.05 |
||||
EP/NN150 |
150 |
1.10 |
||||
EP/NN 200 |
200 |
1.20 |
||||
EP/NN 250 |
250 |
1.40 |
||||
EP/NN 300 |
300 |
1.60 |
||||
EP/NN 350 |
350 |
2.00 |
||||
EP/NN 400 |
400 |
2.20 |
||||
HENGTUO is Rubber Conveyor Belt Distributor. We are specialized in Conveyor System Design and other related of conveyor components in China.
