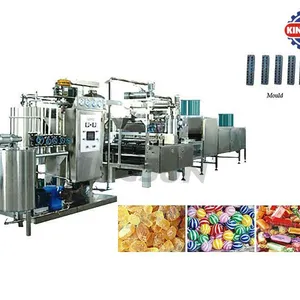

KSC Series Automatic Hard Candy Depositing Line (PLC controlled)
KSC-150/300/450/600 hard candy depositing line is a compact unit which can continuously produce various kinds of hard candies under a strict sanitary condition. It is also an ideal equipment which can produce out good quality products with the saving of both the manpower and the space occupied.
The strongpoint of the line is as following:
1.PLC /computer process control available;
2.An LED touch panel for easy operating;
3.The production capacity from 150 kgs/h to 450kgs/h;
4.Optional (mass) flowing controlled by Frequency inverters ;
5.In-line injection, dosing and pre-mixing techniques for the proportional addition of liquid(milk); Dosing pumps for the automatic injection of colors, flavors and acids;
6.One set of extra chocolate paste injection system for making chocolate-central candies; "two/three-color striped depositing","two /three–color double layers depositing", "central filling", "clear" hard candies and etc. can be made.
7.Moulds can be made according to the candies samples provided by the customer.
Technical Parameters:
Model |
KSC-150 |
KSC-300 |
KSC-450 |
KSC-600 |
Capacity(kg/hr) |
150 |
300 |
450 |
600 |
Max candy weight |
6g |
6g |
6g |
6g |
Depositing speed |
55-65n/min |
55 |
65n/min |
55 |
Compressed air requirement |
0.2m³/min, |
0.2m³/min, |
0.2m³/min, |
0.2m³/min, |
Working condition |
Temp:20-25℃ |
Temp:20-25℃ |
Temp:20-25℃ |
Temp:20-25℃ |
Total Power |
18kw/380V |
27kw/380V |
34kw/380V |
38kw/380V |
Total Length |
15m |
17m |
17m |
20m |
Total Weight |
3500kg |
4000kg |
4500kg |
5000kg |
