0-50mm 0.01mm High Quality Metric Dial Indicator Mini Dial Indicator
- T/T Credit Card
You May Like
-
SHAHE 0-0.8mm 0.01mm Dial Test Indicator Dial Indicator
-
SHAHE 0-0.2mm 0.002 mm Dial Test Indicator Dial Indicator
-
SHAHE 35-50mm 0.01mm Dial Indicator Dial Bore Gauge Hole Diameter Dial Indicator Bore Gauge
-
SHAHE 50-160mm 0.01mm Dial Indicator Dial Bore Gauge Hole Diameter Dial Indicator Bore Gauge
-
SHAHE 160-250mm 0.01mm Dial Indicator Dial Bore Gauge Hole Diameter Dial Indicator Bore Gauge
-
SHAHE WCZ-6F Flexible Magnetic Base Holder For Digital Dial Indicator Magnetic Base Stand
Product Description
Characteristic & Function
| 1.The moving parts are made of special wear mainly stainless steel, with good wear resistance and anti-corrosion properties 2.Simple structure, high sensitivity, precision is reliable, easy to use and maintenance 3.The dial is clear, convenient for reading 4.Shockproof structure of rack 5.Hard alloy probe |
Specification
| Measuring rang:0-50 mm Resolution:0.01 mm Accuracy:±0.04 mm |

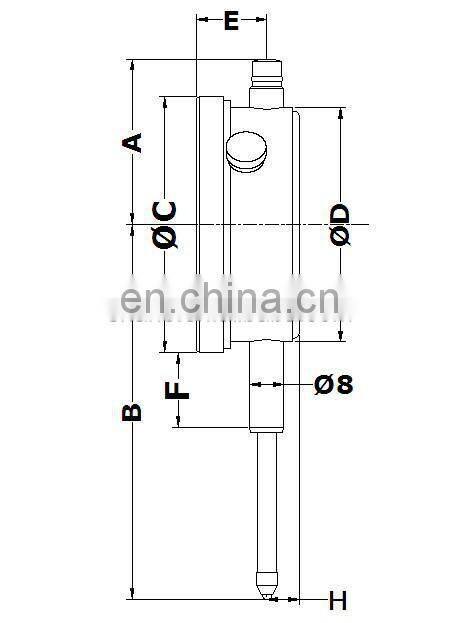

Technical Date :
|
Part No. |
Measuring range (mm) |
Resolution (mm) |
Accuracy (mm) |
A (mm) |
B (mm) |
ØC (mm) |
ØD (mm) |
E (mm) |
F (mm) |
H (mm) |
|
5301-5 |
0-5 |
0.01 |
±0.016 |
46 |
69 |
60 |
55 |
16 |
17.5 |
8 |
|
5301-10 |
0-10 |
0.01 |
±0.020 |
46 |
69 |
60 |
55 |
16 |
17.5 |
8 |
|
5301-20 |
0-20 |
0.01 |
±0.030 |
40.8 |
83.7 |
60 |
55 |
16 |
17.5 |
8.4 |
|
5301-30 |
0-30 |
0.01 |
±0.030 |
40.8 |
85.5 |
60 |
55 |
16 |
17.5 |
8.4 |
|
5301-50 |
0-50 |
0.01 |
±0.040 |
46.8 |
130.6 |
76 |
71 |
16.5 |
31.2 |
9.5 |
FAQ:
Q:How can we place the order ?
A:Please place order online directly , or you can send us an inquiry , or check with our sales online, we will reply you within 12 hours.
Q:How can we send money ?
A:After you confirm the order , you can send money online directly , we can accept payment by BOLETO, Mastercard, Visa, e-Checking, PAYLATER, T/T etc.
Q:When will you send out our package ? And how long can i receive it ?
A:Usually we can send goods in 1-2 days except China holiday , and it will take 5-6 days to reach your country by DHL , TNT , UPS , FEDEX or e-packet etc.
Q:What is the warranty policy ?
A:Usually we provide 1 year warranty from the date we sent out the package.
Q:How about the product quality ?
A:Our products apply to CE , ROHS , ISO.
Q:If we receive the products without SHAHE logo from your store, are they produced by Wenzhou Sanhe Measuring Instrument Co.,LTD ?
A:Yes, we are SHAHE Factory Direct. We produce tools with SHAHE brand and neutral for meeting different customs’ demand, we will send products with SHAHE logo at first, if no stocks , we may send neutral one , but all are 100% quality products from SHAHE.
Q: Are OEM&ODM available?
A: Yes, we accept OEM and ODM.
