T100 Coating Thickness Measurement Instruments Paint Gauge Thickness Meter
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
High Quality Reflective Road Line Marking Paint for Road Construction
-
Retroreflectometer for Road Line Marking Retro-reflective Datatest Equipment Magnet Electric Speed Sensor Electronic 25- 30s
-
RM1 Road Marking Retroreflectometer
-
Mobile Marking Retroreflectometer for Road Marking With GPS Function
-
MAR-9 Professional Retrororeflectrometer for Vertical Signaling
-
Visibility Measurement Road Signs Retroreflectometer
Product Description
Product Description

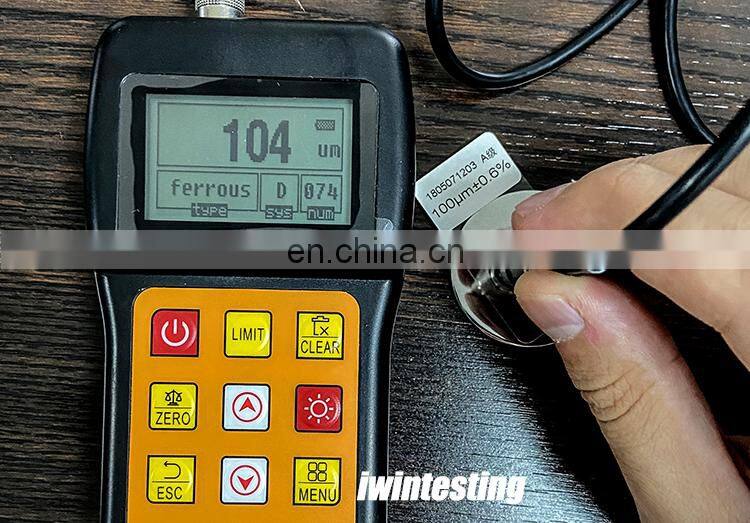

The instrument is a type of portable measuring gauge, capable of measuring rapidly, nondestructively, and precisely the thickness of coating and cladding material. It is suitable for on site as well as for laboratory uses. Via the using of different probes, many sorts of measuring can be satisfied by the gauge. It can be applied comprehensively to manufacturing, metal processing and chemical profession as well as to commercial inspection. It is indispensable for the major of materials protection.
Specification

Specification | T100 |
Probe selection | Optional 10 probes |
F1(Paint/Plating/Fire-resistant layer and 10mm inner cover) | |
Other probes: F400,F1/90°,F5,N400,N1,N1/90°,CN02,N10 | |
Working principle | Magnetic induction and eddy current |
Measurement accuracy | F1(±((1~2)%H+1)), F10(±((1~3)%H+1)), N1(±((1~2)%H+1)) |
Measuring range | F1(0~1250um), F10(0~10000um), N1(0~1250um) |
Minimum curvature | F1(3mm),F10(10mm),N1(4mm),F400(1mm) |
Minimum area | F1(Φ7),F10(Φ40),N1(Φ5),F400(Φ3) |
Measurement method | Continuous measurement method, single measurement method |
Statistics function | Mean, Large, Small, Tests,Standard Deviation |
Calibration method | Single-point calibration,two-point calibration,and five-point basic calibration method to correct the system error of the probe |
Storage function | Can store 495 measured values,with delete function:delete single suspicious data appearing in the measurement, or delete all data in the storage area for new measurement |
Alam system | Linits can be set: automatic alarming for measured values outside the limits; with power undervoltage indication function; beepprompts during operation; with error prompt function, error prompts can be displayed on screen or by beeps |
Shutdown method | Manual shutdown mode and automatic shutdown mode |
Use environment | 0~40℃/ humidity: 20%RH~90%RH Magnetic field-free environment |
Power supply | Tow AA batteries |
The standard configuration | Main unit 1 set/probe 1 set/ stan dard piece(5 pirces)/iron or aluminum base 1 piece/ 5 AA battery 2 sections/manual certificate warranty card 1 set |
Packing & Delivery


To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided. One set is in one strong box.
Company Profile

Iwin testing equipment company is a high-tech enterprise focusing on the research and development, production and sales of engineering quality test and testing instruments.The company serves in the construction, the railroad, the highway, the water conservancy, the electric power, the university and the scientific research institute,To provide quality products, services and solutions for the industry,And establish a good long-term cooperative relationship with it.
The company's entire line of products passed: ISO9001 quality management system certification,The entire line of products has independent intellectual property rights,A number of products have applied for national patents.Meanwhile, iwin has passed the high-tech enterprise certification.
The company's entire line of products passed: ISO9001 quality management system certification,The entire line of products has independent intellectual property rights,A number of products have applied for national patents.Meanwhile, iwin has passed the high-tech enterprise certification.
FAQ
Q: Are your company a trading one or a factory?
A: Factory+ trade (integration), More than 10 years focusing on test instruments field.
Q: After an order is placed, How long it be delivered?
A: Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days Please be aware that our production lead times depend on specific items and item quantities.
Q: What about the warranty with after-sales services?
A: The testing machine is guaranteed for 12 months by gaotiejian, we can help you to repair your problem controller freely, even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
Q: What about the product' services and quality?
A: Each instruments must be carried out 100% quality examination and test when shipping and delivery goods Product use training, each of our product provide video training to show you how to install operate We can arrange engineer to train the operation of equipment to customers company when you need. Products are widely recognized and trusted by users.
A: Factory+ trade (integration), More than 10 years focusing on test instruments field.
Q: After an order is placed, How long it be delivered?
A: Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days Please be aware that our production lead times depend on specific items and item quantities.
Q: What about the warranty with after-sales services?
A: The testing machine is guaranteed for 12 months by gaotiejian, we can help you to repair your problem controller freely, even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
Q: What about the product' services and quality?
A: Each instruments must be carried out 100% quality examination and test when shipping and delivery goods Product use training, each of our product provide video training to show you how to install operate We can arrange engineer to train the operation of equipment to customers company when you need. Products are widely recognized and trusted by users.
