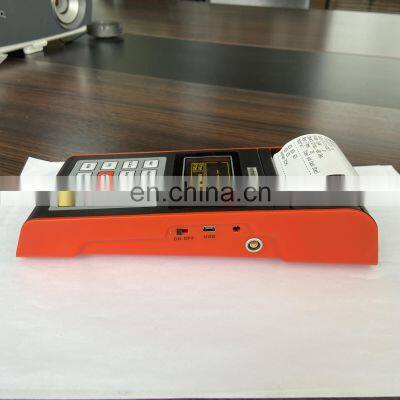

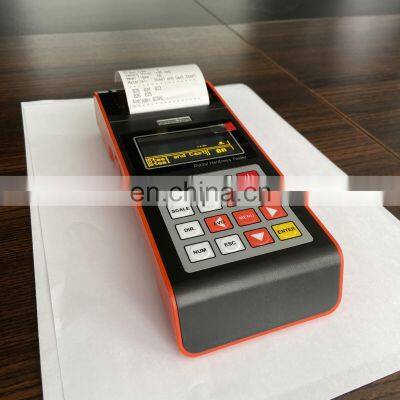

Digital Hardness Tester for Lab Use

Digital Hardness Tester for Lab Use thumbnail-1
Digital Hardness Tester for Lab Use thumbnail-2
Digital Hardness Tester for Lab Use thumbnail-3
Digital Hardness Tester for Lab Use thumbnail-4
Digital Hardness Tester for Lab Use thumbnail-5
Digital Hardness Tester for Lab Use photo-1
Digital Hardness Tester for Lab Use photo-2
Digital Hardness Tester for Lab Use photo-3
Digital Hardness Tester for Lab Use photo-4
Digital Hardness Tester for Lab Use photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
1994
Annual Export Value:
US$5 Million - US$10 Million
Contact Supplier Request Quote Chat Now
Hebei Gaotiejian Testing Instrument Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Our Advantages
Product Description
Specification
item
value
Warranty
1 year
Customized support
OEM, ODM
Place of Origin
China
Hebei
Brand Name
Iwin
Model Number
Iwin-DHT
Power
Electronic
Standards:
GB/T17394-1998
Type:
hardness tester
Impact Direction:
Up, down, horizontal, slanting up, slanting down
Hardness Scales:
HL,HB,HRB,HRC,HRA,HV,HS.
Weight:
0.6kg (host)
Dimensions:
210 x 85 x 45mm (host)
Memory:
600 groups max
Work Voltage:
9V/500mA
Continuous working period:
200 hours
Keywords:
digital hardness tester
Product Description
Application:
1. Die cavity of molds
2. Bearings and other parts
3. Failure analysis of pressure vessel, steam generator and other equipment
4.Heavy work piece
5. The installed machinery and permanently assembled parts
6. Testing surface of a small hollow space
7. Material identification in the warehouse of metallic materials
8. Rapid testing in large range and multi-measuring areas for large-scale work piece.
Main Features
1. Large screen(128×64 dot matrix LCD), showing all functions and parameters.
2. Test at any angle, even upside down.
3. Support "forged steel (Steel)" material, when using the D/DC impact device test "forged" sample, can read HB value directly, without the need for manual checking table. 4. Wide measuring range. It can measure the hardness of all metallic materials. Direct display of hardness scales HRB, HRC, HRA, HV, HB, HS, HL and three types of strength values immediately.
5. Seven impact devices are available for special application. Automatically identify the type of impact devices.
6. Large capacity memory could store 600 groups (Relative to average times32~1 ) information including single measured value, mean value, testing data, impact direction, impact times, material and hardness scale etc.
7. Upper and lower limit can be preset. It will alarm automatically when the result value exceeding the limit.
8. Battery information indicates the rest capacity of the battery and the charge status.
9. User calibration function.
10. USB port with the PC humanity multi-functions data proceeding software.
11. Original imported high speed thermal printer support the immediate printing function. It can save data permanently.
12. NI-MH rechargeable battery as the power
source. Charge circuit integrated inside
