Portable Road Marking Retroreflectometer GPS
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Portable GPS Retroreflectometer for Road Markings
-
Retroreflectometer Costs Gps
-
2022 High Quality 0 - 4000 Measurement Range Retroreflectometer for Sale
-
World Hot Simple Operation Portable Gps Retroreflectometer for Road Markings
-
Road Signs Retroreflectometer Retroreflective Luminous Tester for Road Marking
-
Road Marking Reflection Measuring Instrument Retro-reflective Electronic Sensor
Product Description
Our Advantages
Product Description
MAR9 multi-angle retroreflective coefficient tester is a portable testing equipment that is professionally used to measure the retroreflective optical characteristics of various reflective safety materials. It is widely used in various road traffic reflective products, vehicle safety reflective products, and safety production signs, On-site inspection and inspection of reflective cloth, etc.
Main features
* Advanced optical measurement system
* Anti-scratch full metal shell
* Magnetic calibration method, more convenient
* Support the measurement of retroreflective coefficient at up to 12 angles
* 4.3-inch high-brightness LCD capacitive touch screen displays measurement data
* Parameters can be preset to display system information such as date, time, testing location, testing organization, license
plate/road name, testing personnel, etc.,
* Support real-time display of on-site temperature and humidity
* Automatically verify zero setting and adjust measurement standards
* Using the soft keyboard method to input Chinese characters, English and characters can store inspection records, and can
inquire in detail at any time
* Smart standby management, turn off the screen display when there is no operation, and the system sleeps
* Support multiple measurements to calculate the average value;
* Support 16G SD card data storage, and support data storage in Excel form, export to computer through U disk function;
* Low illumination, high sensitivity photoelectric measuring device assembly
* High-precision, high-stability analog data acquisition and A/D conversion circuit
* Low power consumption, high reliability main control unit and computing system
* Support WIFI or Bluetooth data transmission function; (optional)
* Support Bluetooth printing function, can print test data on site (optional);
* Support GPS positioning function (optional)
RM1 The Retroreflectance measuring instrument is a portable field measuring instrument, which can simulate the road marking brightness visible to the driver under the headlamp illumination of motor vehicle at night. The measured parameter is the luminous Retroreflectance coefficient at night, i.e. RL value, in mcd·m-2·lx-1. It is used to measure the retroreflection characteristics of road markings. It is suitable for laboratory environment and field measurement. Road marking manufacturers, road marking process construction units and road quality supervision units are used to measure the retroreflective performance of road markings.
Main technical parameters
* Measurement items: retroreflective coefficient mcd.m-2.lx-1
* Measurement range: 0---4000
* Observation angle: 1.05°
* Angle of incidence: 88.76°, Complementary angle is 1.24°
* Light source color temperature: 2856±50K
* Measuring aperture area: 340mm x 95mm
* Error of repeatability measurement: ≤3%
* Continuous working time of battery: >72h
* Data storage space: 8GB
* Built-in battery capacity: 13Ah
* Charger: DC 8.4V
* Ambient temperature: -15℃~+60℃
* Ambient humidity: <98%, no frost
* Instrument size: 700mm x 135mm x 115mm
Main features
* Advanced optical measurement system
* Anti-scratch full metal shell
* Magnetic calibration method, more convenient
* Support the measurement of retroreflective coefficient at up to 12 angles
* 4.3-inch high-brightness LCD capacitive touch screen displays measurement data
* Parameters can be preset to display system information such as date, time, testing location, testing organization, license
plate/road name, testing personnel, etc.,
* Support real-time display of on-site temperature and humidity
* Automatically verify zero setting and adjust measurement standards
* Using the soft keyboard method to input Chinese characters, English and characters can store inspection records, and can
inquire in detail at any time
* Smart standby management, turn off the screen display when there is no operation, and the system sleeps
* Support multiple measurements to calculate the average value;
* Support 16G SD card data storage, and support data storage in Excel form, export to computer through U disk function;
* Low illumination, high sensitivity photoelectric measuring device assembly
* High-precision, high-stability analog data acquisition and A/D conversion circuit
* Low power consumption, high reliability main control unit and computing system
* Support WIFI or Bluetooth data transmission function; (optional)
* Support Bluetooth printing function, can print test data on site (optional);
* Support GPS positioning function (optional)
RM1 The Retroreflectance measuring instrument is a portable field measuring instrument, which can simulate the road marking brightness visible to the driver under the headlamp illumination of motor vehicle at night. The measured parameter is the luminous Retroreflectance coefficient at night, i.e. RL value, in mcd·m-2·lx-1. It is used to measure the retroreflection characteristics of road markings. It is suitable for laboratory environment and field measurement. Road marking manufacturers, road marking process construction units and road quality supervision units are used to measure the retroreflective performance of road markings.
Main technical parameters
* Measurement items: retroreflective coefficient mcd.m-2.lx-1
* Measurement range: 0---4000
* Observation angle: 1.05°
* Angle of incidence: 88.76°, Complementary angle is 1.24°
* Light source color temperature: 2856±50K
* Measuring aperture area: 340mm x 95mm
* Error of repeatability measurement: ≤3%
* Continuous working time of battery: >72h
* Data storage space: 8GB
* Built-in battery capacity: 13Ah
* Charger: DC 8.4V
* Ambient temperature: -15℃~+60℃
* Ambient humidity: <98%, no frost
* Instrument size: 700mm x 135mm x 115mm
SR6 Sign reflective measuring instrument is a new type of portable traffic safety detection equipment, which is used to measure the reflective optical characteristics of various reflective safety signs, and can be used for on-site detection of traffic reflective products and vehicle safety reflective products.
Main technical parameters
* Measurement items: retroreflective coefficient cd .lx-1 .m-2
* Measurement range: 0---1999.9
* Observation angle: 0.2°
* Angle of incidence: -4°
* Light source color temperature: 2856±50K (Standard illuminant A)
* Testing spot diameter: 32mm
* Error of repeatability measurement: ≤2%
* Error of reproducibility measurement: ≤3%
* Continuous working time of battery: >8h
* Data storage space: 8GB
* Built-in battery capacity: 3500mAh
* Charger: DC 8.4V
* Ambient temperature: -5℃~+50℃
* Ambient humidity: <98%, no frost
* Instrument size: 220mm × 250mm × 80mm (L×H×W)
* Weight: 1.7kg
Main technical parameters
* Measurement items: retroreflective coefficient cd .lx-1 .m-2
* Measurement range: 0---1999.9
* Observation angle: 0.2°
* Angle of incidence: -4°
* Light source color temperature: 2856±50K (Standard illuminant A)
* Testing spot diameter: 32mm
* Error of repeatability measurement: ≤2%
* Error of reproducibility measurement: ≤3%
* Continuous working time of battery: >8h
* Data storage space: 8GB
* Built-in battery capacity: 3500mAh
* Charger: DC 8.4V
* Ambient temperature: -5℃~+50℃
* Ambient humidity: <98%, no frost
* Instrument size: 220mm × 250mm × 80mm (L×H×W)
* Weight: 1.7kg
Specification
item | value |
Warranty | 1 years |
Customized support | OEM |
Place of Origin | Hebei, China |
Brand Name | iwin |
Model Number | iwin-rfm |
Power | Electronic |
Product name | Handhold Retroreflectometer for Pavement Road Marking Road Safety |
Measurement range | 0-1999.9 |
Observation angle | 0.2° |
Testing spot diameter | 32mm |
Data storage space | 8GB |
Built-in battery capacity | 3500mAh |
Ambient temperature | -5℃~+50℃ |
Ambient humidity | <98%, no frost |
Angle of incidence | -4° |
Keyword | Retroreflectometer |
Transaction process
Why Choose Us
Product packaging
Our logistics
FAQ

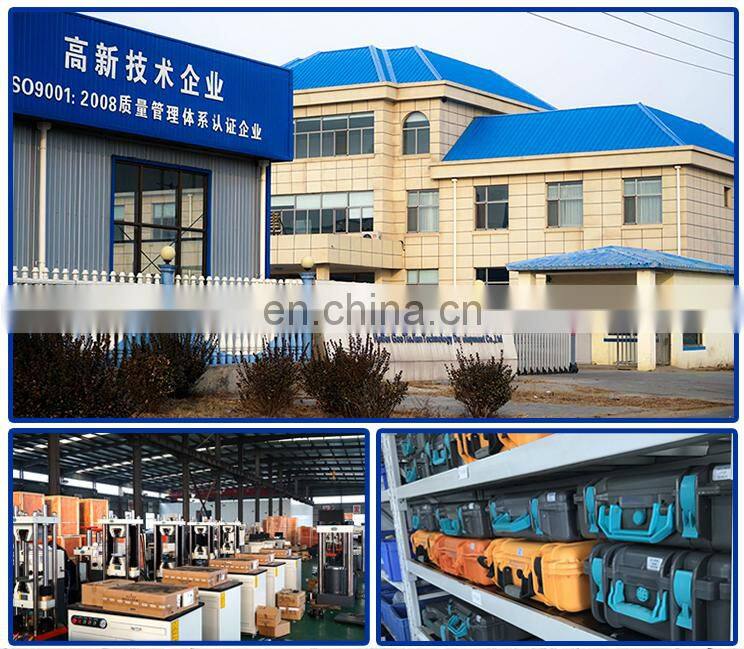

1. who are we?
We are based in Hebei, China, start from 2010,sell to Domestic Market(50.00%),South America(15.00%),Southeast Asia(10.00%),Mid
East(10.00%),North America(5.00%),Africa(5.00%),Western Europe(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Universal Testing Machine,Concrete Testing Equipment,Pile Testing Equipment,Soil Testing Equipment
4. why should you buy from us not from other suppliers?
We mainly develop high-technology, high quality, energy saving and environmental-friendly building material products . We produce
products according to international standard specification, we also can offer OEM service , like many kinds of couplers .
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,Express Delivery,DAF；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese
We are based in Hebei, China, start from 2010,sell to Domestic Market(50.00%),South America(15.00%),Southeast Asia(10.00%),Mid
East(10.00%),North America(5.00%),Africa(5.00%),Western Europe(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Universal Testing Machine,Concrete Testing Equipment,Pile Testing Equipment,Soil Testing Equipment
4. why should you buy from us not from other suppliers?
We mainly develop high-technology, high quality, energy saving and environmental-friendly building material products . We produce
products according to international standard specification, we also can offer OEM service , like many kinds of couplers .
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,Express Delivery,DAF；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese
