- Product overview

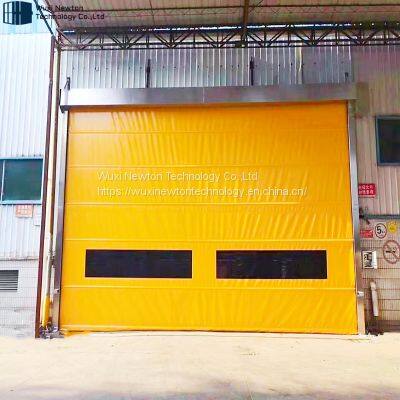

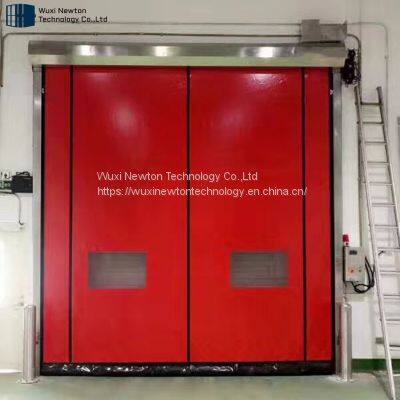

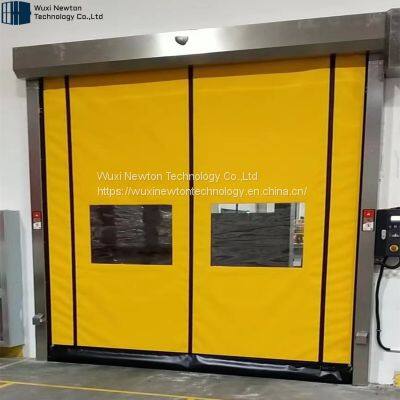

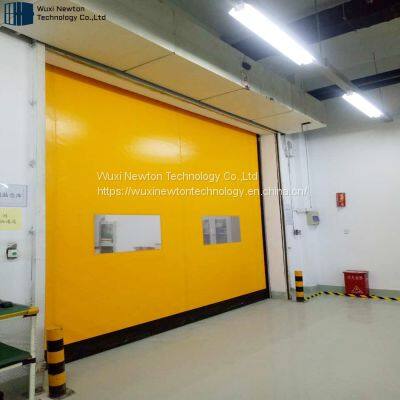

Self-repairing high speed door is specially designed for indoor applications. Relying on an unique design, it can provide the best air-tightness. It only needs very little space to protect your environment from ventilation, humidity, dust and mosquitoes. At the same time, the door has high-speed operation, good heat preservation and air-tightness, which can well improve the traffic flow of the operation, make the working environment of employees more comfortable, and can greatly save energy consumption.
- Product advantages
End buffer technology: Based on the constant torque characteristics of the motor system, the door body runs extremely smooth and solves the noise problem of the door body during operation. At the same time, the end buffer technology protects the reducer and brake pads more effectively. In fact, it is necessary to digitally adjust different speeds, fast-slow-stop dynamic changes throughout the process, reduce the impact of various parts in the motion stop, espeially the protection of the deceleration mechanism is the most prominent.
Reversal noise reduction technology: Whenever it encouters resistance and bounces during the descent process, the program in the driver will quickly stop and rise through the state of the current loop, position loop and speed loop. In the case of control without shake and noise, the inertial impact will not more than 3mm distance.
Anti-collision self-repairing technology structure: In the event of an accidient impact, the door curtain can be derailed and automatically reset during the ascent. The whole process does not require manual repair and control unit reset.
Safety technology: It only takes 10 milliseconds for the motor system to start and stop between 0-2000 revolutions, which is the most sensitive of all door opener systems at present.
Infrared safety protection electrict eye: There are infrared counter sensor on both sides of the door frame, and there is an object under the fast foor to keep the dooe open; when the door body is lowered, there is an object passes through, the door body will back to the opening position, and go down until there is no obstacle unders the door.
Wireless airbag bottom protection edge: When the door body is descending, because the object is in the blind area of infrared safety protection, when the door body pressed against the obstacle, the door body quickly rebounds to the opening position, effectively protecting the object or pedestrian avoid the accidents.
- Product parameters
Control system: Dedicated system, the core is DSP chip
Motor: Professional motor system, strong overload capacity, 2000-line high-resolution encoder
Opening/Closing speed: 0.8-1.5S
Control box: Man-machine dialogue text controller, frequency conversion control system
Limit switch: Multi-turn absolute encoder
Power supply: 220V, 13A, single phase 50Hz/380V
Curtain material: High-strength PVC coated cloth with mesh-like high-strength fiber added under stong pressure, thickness 1.2mm, high wear resistance coefficient
Sealing performance: The curtain does not need wind-resistant ribs, and the slide rail is clamped on both sides of the zipper type toothed belt to realize the tension of the curtain
Wind resistance rating: Level 6
Standard size: Maximum 4000 x 4500mm
- Opening methods
Motion sensor
Inductionloops
Bluetooth
Pull-cord switch
Remote control
Photo eyes
Safety light curtain
Safeyt edge
- Our Professionalism
Our team works in this industry with many years' experience, from the design, manufacture, package, delivery, installation and commissioning, maintenance after-sale service, we provide all-sided supports for our customers at every link, particularly, our technicans can design the suitable door based on the customers' practical demand to save the cost, and provide our customers the effective training to help them operate and maintain the doors properly.
- Package
Qualified plywood for LCL; and Qualified carton or pallet for FLC, however, we are able to provide the package according to your specified requirements.
- Service scope
1. Factory and production online inspection
2. Pre-shipment inspection
3. One year warranty: As long as the goods is received, we will provide one year warranty to supply the accessories free of charge
4. Installation video support: During the installation, we will provide the videos or other documents to help you install the doors successfully, if necessary, we will provide the online guidance.
5. Timle response: Our sales will provide the quick response to help you solve the problem timely.
- About us
WUXI NEWTON TECHNOLOGY CO.,LTD is the manufacturer in the field of all kinds of automatic doors in China, includes automatic folding doors, automatic industrial sectional doors, high speed roll-up doors, garage door, door hardware kit, with a well established reputation for outstanding performance.
Recognized worldwide for its proprieraty design and manufacturing know how. NEWTON has been involved in this industry since 2000. We got here on the basis of providing optimal solutions and strong supports to clients who buy our products.
We understand what our customers need to stay competitive:
Optimal design for different projects
At an affordable rate
In the pastest possible
Meeting these goals requires precision in everything we do, and all stages are controlled strictly by our skilled operators and technicians.
We are proud to offer our high quality automatic doors to the world market. But more importantly, we are pround we've helped our customers meet their demands, to grow their businesses.
