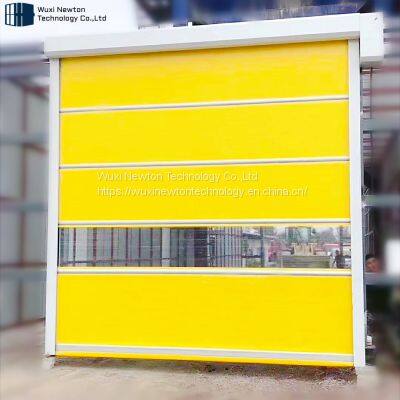

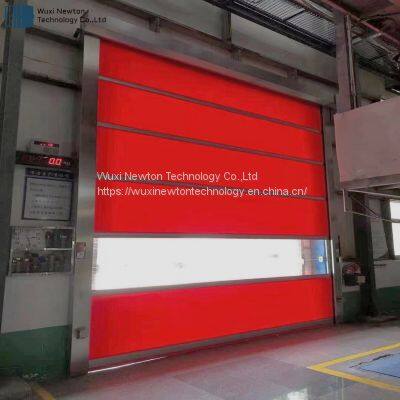

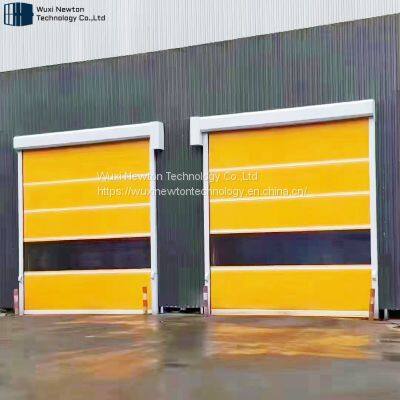

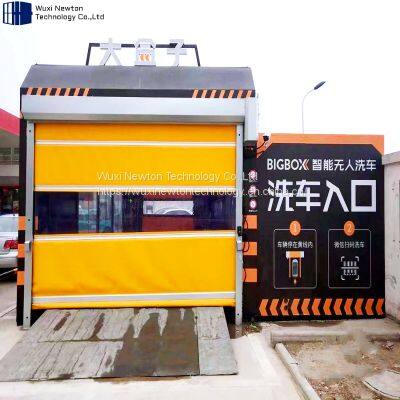

Help CenterExternal High Speed Industrial Shutter Door PVC Curtain for Workshop
Related Products
-
High Performance High Speed Rigid Rolling DoorUS$ 2300 - 3000MOQ: 1 Set -
Large Size PVC Folding Stacking Fast Action DoorUS$ 900 - 1800MOQ: 1 Set
-
Thermal Insulated High Speed Overhead PVC Curtain Freezer Door Roll up High Speed Door for Cold StorageUS$ 1000 - 1800MOQ: 1 Set
-
Industrial Automatic Plastic Zipper Fast Acting Rapid Rise PVC Fabric High Speed Self Repairing Roll up Door for Clean RoomUS$ 900 - 1800MOQ: 1 Set
-
Automatic Horizontal Sliding Folding Insulated Aluminum Door IndustrialUS$ 130 - 150MOQ: 1 Square Meter
- Product overview
The PVC high speed roller shutters has a high speed partition function. The cold splicing process makes the curtain more smooth and beautiful. The segmented splicing reduces the maintenance cost, reliability, practicality, easy opeartion and low maintenanace costs. This door is the most economical selection for the facility entrance, to prevent the entrance, widely used for the electrical, mechanical, food, pharmacy, chemical, textile, printing, supermarket and the logistics & warehiousing.
- Product parameters
Opening/Closing spped: 0.8m-1.5m/sec
Control box: Digital tube, frequency conversion control system
Limit switch: Multi-turn absolute encoder
Power supply: 220V
Safety standard: According to EN ISO 12100
Test life circle: The tested service cycle reaches 800,000 times per year, 500 times per day
Wind resistance rating: Wind-resistant ribs are connected in sections for easy replacement; Maximum level 6
Standard size: Maximum 5500 x 6500mm
Transparent window: PVC full transparent film, thickness 1.5mm
Sealing performance: The U-shaped airbag cloth pocket at the bottom of the curtain can be closely attached to the uneven ground. The double-row brush seal structure of the PVC base is adopted for the double-row brush seal structure on both sides of the door frame to prevent dust and insects.
Insulation protection: Ip54 is waterproof and dustproof even when used in harsh environments
Safety configuration: standard infrared photoelectric protection, pressure airbag, warning light, anti-collision pillar
- Opening methods
Motion sensor
Inductionloops
Bluetooth
Pull-cord switch
Remote control
Photo eyes
Safety light curtain
Safeyt edge
- Quick and easy installation
| Step 1 | Door steel frame installation |
| Step 2 | Door curtain installation |
| Step 3 | Mount the motor |
| Step 4 | Mount the door cover |
| Step 5 | Infrared detection or other safety device installation |
| Step 6 | Speed and stroke debug |
- Our Professionalism
Our team works in this industry with many years' experience, from the design, manufacture, package, delivery, installation and commissioning, maintenance after-sale service, we provide all-sided supports for our customers at every link, particularly, our technicans can design the suitable door based on the customers' practical demand to save the cost, and provide our customers the effective training to help them operate and maintain the doors properly.
- Package
Qualified plywood for LCL; and Qualified carton or pallet for FLC, however, we are able to provide the package according to your specified requirements.
- Service scope
1. Factory and production online inspection
2. Pre-shipment inspection
3. One year warranty: As long as the goods is received, we will provide one year warranty to supply the accessories free of charge
4. Installation video support: During the installation, we will provide the videos or other documents to help you install the doors successfully, if necessary, we will provide the online guidance.
5. Timely response: Our sales will provide the quick response to help you solve the problem timely.
- About us
WUXI NEWTON TECHNOLOGY CO.,LTD is the manufacturer in the field of all kinds of automatic doors in China, includes automatic folding doors, automatic industrial sectional doors, high speed roll-up doors, garage door, door hardware kit, with a well established reputation for outstanding performance.
Recognized worldwide for its proprieraty design and manufacturing know how. NEWTON has been involved in this industry since 2000. We got here on the basis of providing optimal solutions and strong supports to clients who buy our products.
We understand what our customers need to stay competitive:
Optimal design for different projects
At an affordable rate
In the pastest possible
Meeting these goals requires precision in everything we do, and all stages are controlled strictly by our skilled operators and technicians.
We are proud to offer our high quality automatic doors to the world market. But more importantly, we are pround we've helped our customers meet their demands, to grow their businesses.
