Home > Instruments & Meters > Test Instrument > Test Machine > IWIN-U610 Digital Ultrasonic Flaw Detector Used for Quality Control For Metal
IWIN-U610 Digital Ultrasonic Flaw Detector Used for Quality Control For Metal
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
1994
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Digital Ultrasonic Automatic Flaw Detector Testing Equipment for SaleNegotiableMOQ: 1 -
Integrated Rebar Detectors Concrete Bar Locator Rebar ScannerNegotiableMOQ: 1
-
Concrete Steel Bar Reinforcement Detector Wall Rebar ScannerNegotiableMOQ: 1
-
Integrated Type Metal Locator Rebar DetectorNegotiableMOQ: 1
-
R800 Concrete Rebar Steel Bar Locator Grid Scanner CovermeterNegotiableMOQ: 1
Our Advantages
Product Description

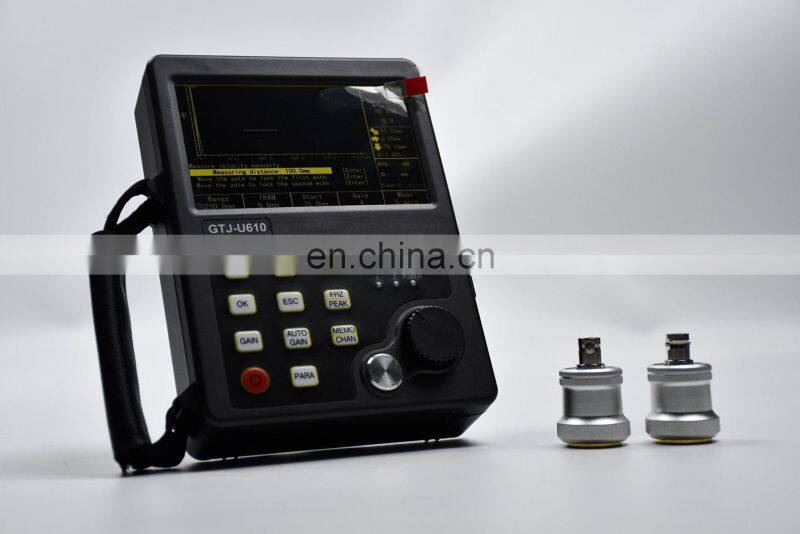

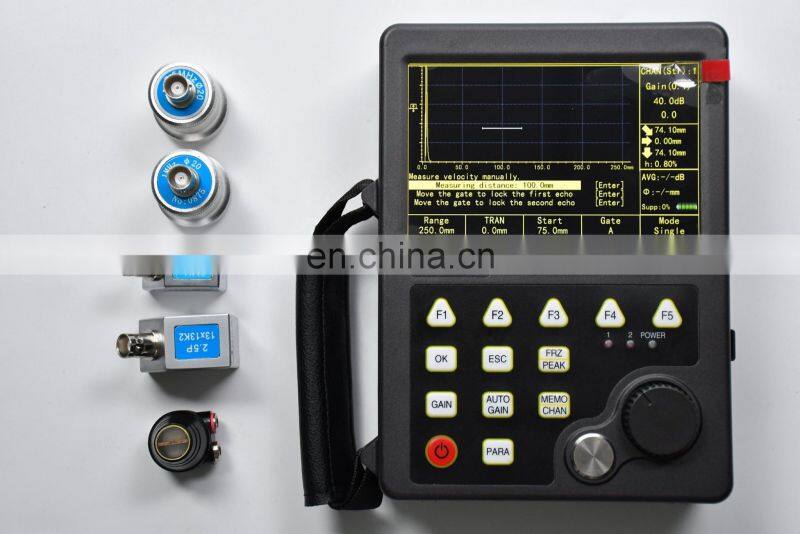

IWIN-U610 Ultrasonic flaw detector can quickly, non-destructively and accurately detect various defects (cracks, inclusions, blowhole, etc.) inside the workpiece. The product is unique in design, easy to operate and durable. It adopts all-Chinese true color liquid crystal display. Different color schemes can be selected according to the environment. The brightness of liquid crystal can be adjusted under strong outdoor light. Master-slave menu design, with digital shuttle wheel, easy to operate, leading technology. It is widely used in aerospace, railway transportation, building steel structure, boiler pressure vessel and other fields. It is a necessary professional precision instrument for defect detection, quality control, in-service safety monitoring and life evaluation in railway, shipbuilding, metallurgy, chemical industry, petroleum and other industries.
Specification
examination range working frequency Sound speed range Dynamic Range Vertical linearity error Horizontal linearity error Discrimination Sensitivity margin Digital suppression Electrical noise level Probe type Gate Pulse amplitude Pulse Width Probe damping Real-time sampling of hardware Detection method Filter band data storage Communication Interface power supply Dimensions Ambient temperature and humidity | (0~9999)mm (0.2~20)MHz (1000~15000) m/s ≥36dB ≤2.5% ≤0.1% >40dB(5P14) >65dB (deep 200mm 2 flat bottom hole) (0~80)%, does not affect linearity and gain ≤8% Straight probe, oblique probe, dual crystal probe, penetration probe Incoming gate, loss gate; single gate reading, double gate reading Low (300V), medium (500V), high (700V) grading options Continuous adjustment in the range of (0.1~0.5)μs to match probes of different frequencies 100Ω, 200Ω, 400Ω optional High resolution 10-bit AD converter with sampling speed of 160MHz and high waveform fidelity Positive half wave, negative half wave, full wave, radio frequency detection (0.2~20)MHz, fully automatic matching according to probe frequency, no need to set manually 100 sets of flaw detection parameter channels, 1000 flaw detection echo signals and parameters USB2.0 high speed communication transmission interface DC (DC) 9V; lithium battery works continuously for more than 8 hours 263*170*61 (mm) Temperature: (-10~50) °C Humidity: (20~95)%RH |
Transaction process
Why Choose Us

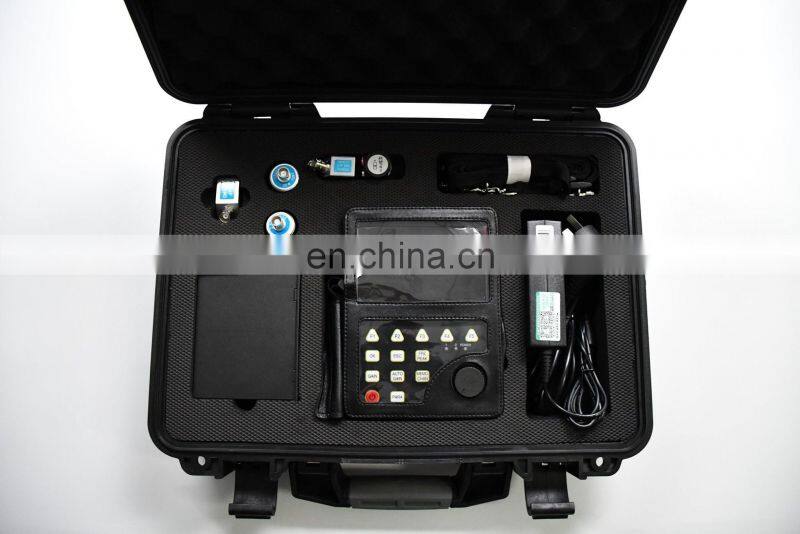

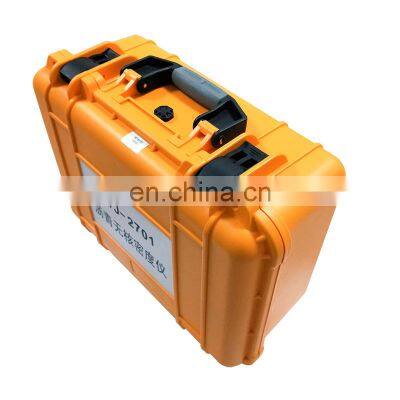

Product packaging
Our logistics
FAQ
1. who are we?
We are based in Hebei, China, start from 2010,sell to Domestic Market(50.00%),South America(15.00%),Southeast Asia(10.00%),Mid
East(10.00%),North America(5.00%),Africa(5.00%),Western Europe(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Universal Testing Machine,Concrete Testing Equipment,Pile Testing Equipment,Soil Testing Equipment
4. why should you buy from us not from other suppliers?
We mainly develop high-technology, high quality, energy saving and environmental-friendly building material products . We produce
products according to international standard specification, we also can offer OEM service , like many kinds of couplers .
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,Express Delivery,DAF；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese
We are based in Hebei, China, start from 2010,sell to Domestic Market(50.00%),South America(15.00%),Southeast Asia(10.00%),Mid
East(10.00%),North America(5.00%),Africa(5.00%),Western Europe(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Universal Testing Machine,Concrete Testing Equipment,Pile Testing Equipment,Soil Testing Equipment
4. why should you buy from us not from other suppliers?
We mainly develop high-technology, high quality, energy saving and environmental-friendly building material products . We produce
products according to international standard specification, we also can offer OEM service , like many kinds of couplers .
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,Express Delivery,DAF；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese
