Automatic Soil Triaxial Testing Machine 39.1 61.8

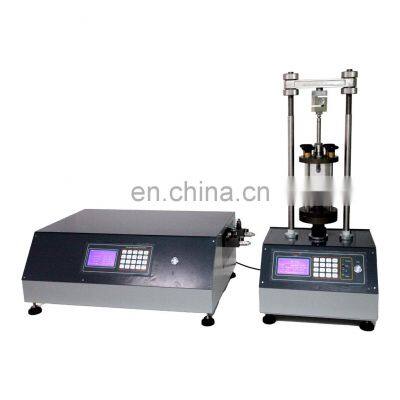

Fully Automatic Triaxial Testing System Apparatus model is adopting the most advanced technology. It is integrated the technology of mechanic, electronic, fully-automated control and sensor automated checking. The range of Triaxial Loading Frame has been designed to be used as part of computer-controlled triaxial system with stress path Triaxial Testing System (V3.11) or as a stand alone unit. Consist of Triaxial Loading Frame and Advanced Pressure Volume Controller (APVC). Both are built up with the LCD graphical display and panel keypad.
IWIN Triaxial Load Frame
Triaxial Load Frame with rigid, durable, low noise and smooth running characteristics,adopts the stepper motor coupled with worn gear drive system to supply the power source. It is equipped with upper and lower limit device; the axial deformation is measured and collected by high-precision displacement sensor. Axial load is measure by force sensors. With overforce protection device, when the axial force loaded is larger than the measuring range of the sensor, the machine will stops working automatically.
Test Module
1.Data Accuisition Module
2.Back Pressure Saturation Test;
3.Consolidation in same direction and consolidation in different direction (pre contact) test;
4.Unconsolidation – undrained test (U-U test);
5.Consolidation – undrained test (C-U test);
6.Consolidation – drainage test (C-U test).
| Model Number | PVC-1 | PVC-2 | PVC-3 |
| Number of channels | 2 | 2 | 1 |
| Maximum Pressure | 2 Mpa | 2 Mpa | 2 Mpa |
| Pressure Resolution | 1 kPa | 1 kPa | 1 kPa |
| Maximum Volume | 60 ml | 150 ml | 200 ml |
| Volume Resolution | 0.001 ml | 0.001 ml | 0.001 ml |
| Precision | +/- 0.1 % F.S. | +/- 0.1 % F.S. | +/- 0.1 % F.S. |
| Confining Pressure | Measuring Range : 0 ~ 2 MPa Resolution : 1 kPa Accuracy : +/- 1 kPa |
Measuring Range : 0 ~ 2 MPa Resolution : 1 kPa Accuracy : +/- 1 kPa |
Measuring Range : 0 ~ 2 MPa Resolution : 1 kPa Accuracy : +/- 1 kPa |
| Back Pressure | Measuring Range : 0 ~ 2 MPa Resolution : 1 kPa Accuracy : +/- 1 kPa |
Measuring Range : 0 ~ 2 MPa Resolution : 1 kPa Accuracy : +/- 1 kPa |
Measuring Range : 0 ~ 2 MPa Resolution : 1 kPa Accuracy : +/- 1 kPa |
| Pore Pressure | Measuring Range : 0 ~ 2 MPa Resolution : 1 kPa Accuracy : +/- 0.1% F.S. |
Measuring Range : 0 ~ 2 MPa Resolution : 1 kPa Accuracy : +/- 0.1% F.S. |
Measuring Range : 0 ~ 2 MPa Resolution : 1 kPa Accuracy : +/- 0.1% F.S. |
| Power | 110-240V, 50Hz | 110-240V, 50Hz | 110-240V, 50Hz |
| Dimension | 870mm (L) x530mm (W) x 320mm (H) | 1010×530×320 | 650X94X123 |
| Weight | 38 kg | 62kg | 80kg |
Technical Specifications:
| Model Number | SG-1 | SG-3 | SG-5 | SG-10 | SG-20 |
| Maximum Axial Force (Load Sensor) | 10KN | 30KN | 50KN | 100KN | 200KN |
| Maximum Diameter | Ø70mm x 140mm (H) | Ø100mm x 200mm (H) | Ø150mm x 300mm (H) | Ø200mm x400mm (H) | Ø200mm x400mm (H) |
| Testing Speed Rate | 0.00001 - 9.99999 mm/min | 0.00001 - 9.99999 mm/min | 0.00001 - 20mm/min | 0.00001 - 20mm/min | 0.00001 - 9.99999mm/min |
| Precision | +/- 0.1% F.S. | ||||
| Displacement Measuring Range | 50mm | 80mm | 100mm | 150mm | 150mm |
| Maximum Vertical Clearance | 500mm | 540mm | 720mm | 720mm | 670mm |
| (700mm) | (700mm) | ||||
| Horizontal Clearance | 240mm | 300mm | 360mm | 450mm | 610mm |
| Power | 110 or 240V | ||||
| Dimension(mm) | 400×350×830 (mm) | 600×350×1180 (mm) | 600×450×1180 (mm) | 800×520×1660(mm) | 1000×700×2200(mm) |
| Weight(kg) | 45kg | 98kg | 120kg | 240kg | 860kg |
Iwintesting equipment company is a high-tech enterprise focusing on the research and development, production and sales of engineering quality test and testing instruments. The company serves in the construction, the railroad, the highway, the water conservancy, the electric power, the university and the scienitic research institute.
To provide quality products, services and solutions for the industry,And establish a good long-term cooperative relationship with it. Our company always abides by the business philosophy of“customer first, quality firrst”.Do a good customer service,All products of the company implement the "three guarantees policy"
Q:What equipments do you supply?
A: We supply metal testing, pile testing, concrete testing, soil testing, cement testing, asphalt testing, rock testing and other building lab equipments.
Q: Are your company a trading one or a factory?
A: Factory+ trade (integration), More than 10 years focusing on test instruments field.
Q: After an order is placed, when to deliver?
A: Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days Please be aware that our production lead times depend on specific items and item quantities.
Q: What about the warranty with after-sales services?
A: The testing machine is guaranteed for 12 months by gaotiejian, we can help you to repair your problem con troller freely, even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
Q: What about the product' services and qualit?
A: Each instruments must be carried out 100% quality examination and test when shipping and delivery goods Product use training, each of our product provide video training to show you how to install operate We can arrange engineer to train the operation of equipment to customer s company when you need. products are widely recognized and trusted by users.
