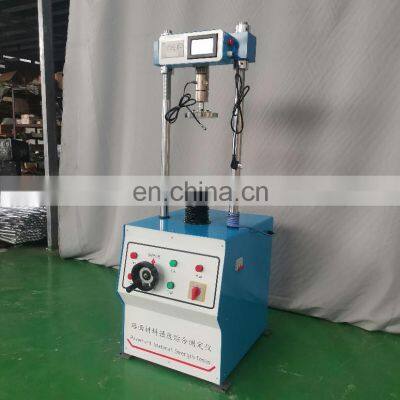

Digital CBR Marshall Pavement Material Strength Tester
20B Type
Pavement material strength comprehensive tester has the advantages of stable loading, low noise, large screw stroke, simple operation, etc. It is an instrument required by highway construction units, colleges and universities and quality inspection departments. The instrument is equipped with overload protection, automatic speed change, no need to manually shift the gear lever to change the test speed, 1/50mm in the controller can be switched, the machine is equipped with other related fixtures to perform multiple tests, such as the compression resistance of cement and lime stabilized soil Strength, splitting strength, resilience modulus and other tests, Marshall test of asphalt concrete, bearing ratio (CBR) test of subgrade soil and various pavement materials, etc. Data can be uploaded to the computer (the equipment factory defaults to 4 types of tests: CBR test, Marshall stability test, unrestricted compressive strength test, other tests, standard dual pressure sensors, dual displacement sensors)
1. Maximum load: 200KN;
2. Working stroke: 200mm;
3. Working power supply: this machine adopts 380V, 220V independent power supply working mode
AC380V 50Hz (the host uses a three-phase power supply, no neutral line is required; the host is equipped with a phase sequence protector, if the host does not work after the power is connected, and an alarm sounds, only any two live wires can be exchanged), the controller is 220V.
4. Power of the whole machine: 1Kw:
5. Ascent rate: 1mm/min and 50mm/min two gears (automatic selection); there is a delay of about 6 seconds when switching from high speed to low speed, which is a normal phenomenon.
6. Dimensions: 550X650X1550mm
20A Type
Pavement material strength comprehensive tester has the advantages of stable loading, large screw stroke, simple operation, etc. It is an instrument required by highway construction units, universities and quality inspection departments. This machine is equipped with other related fixtures and can perform multiple tests, such as the compressive strength, splitting strength, resilience modulus of cement and lime stabilized soil, the Marshall test of asphalt concrete, the bearing ratio of subgrade soil and various pavement materials (CBR) test etc. Note: This product can only be used for pressure test, other tests need to be equipped with corresponding accessories.
1. Maximum load: 200KN;
2. Working stroke: 200mm;
3. Working power supply: AC380V 50Hz (the host uses a three-phase power supply, no neutral line is required; the host is equipped with a phase sequence protector, if the host does not work after the power is connected, an alarm sounds, only any two live wires are required to adjust)
4. Power of the whole machine: 0.55Kw
5. Ascent rate: 1mm/min and 50mm/min two gears;
6. Dimensions: 550X650X1500
20C Type
This machine uses advanced computer technology combined with high-precision sensor technology, simple operation, accurate test data, and stable performance. The instrument is equipped with overload protection. The instrument automatically tests and records automatically. This machine mainly adopts two-column support, and its mechanical structure is reasonable, so as to ensure the accuracy of the instrument. The design is simple and generous. After installing the pressure sensor, it can be used to determine the unconfined compressive strength of various binder stabilized soil specimens. , CBR test, Marshall stability test, and other tests that require vertical load to be applied, with standard dual pressure sensors and dual displacement sensors.
1. Touch color screen control, servo motor drive.
2. Maximum rated load: 200KN
3. Test speed: 0.5mm-50mm (stepless speed adjustment is possible)
4. Pressure measurement range: 0-200.0KN
5. Displacement measurement range; 0-25mm
5. Working voltage: 220V
Iwintesting equipment company is a high-tech enterprise focusing on the research and development, production and sales of engineering quality test and testing instruments. The company serves in the construction, the railroad, the highway, the water conservancy, the electric power, the university and the scienitic research institute.
To provide quality products, services and solutions for the industry,And establish a good long-term cooperative relationship with it. Our company always abides by the business philosophy of“customer first, quality firrst”.Do a good customer service,All products of the company implement the "three guarantees policy"
Q:What equipments do you supply?
A: We supply metal testing, pile testing, concrete testing, soil testing, cement testing, asphalt testing, rock testing and other building lab equipments.
Q: Are your company a trading one or a factory?
A: Factory+ trade (integration), More than 10 years focusing on test instruments field.
Q: After an order is placed, when to deliver?
A: Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days Please be aware that our production lead times depend on specific items and item quantities.
Q: What about the warranty with after-sales services?
A: The testing machine is guaranteed for 12 months by gaotiejian, we can help you to repair your problem con troller freely, even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
Q: What about the product' services and qualit?
A: Each instruments must be carried out 100% quality examination and test when shipping and delivery goods Product use training, each of our product provide video training to show you how to install operate We can arrange engineer to train the operation of equipment to customer s company when you need. products are widely recognized and trusted by users.
