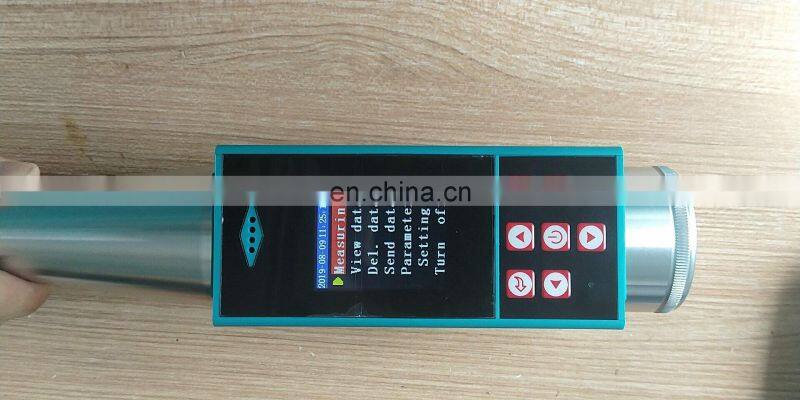

Rebound Concrete testing hammer equipment digital
HT225 fully automatic integrated resilience tester is used for non-damage detection and assessment of compressive strength of hardened concrete in building structures.It can detect and record the parameters such as rebound value, carbonization depth value, Angle and test surface.The strength estimation results of the component can be given immediately after testing.
| mos image sensor | ||
|
Automatically record the rebound value |
||
|
Automatic data correction, calculation and statistical analysis according to the specification |
||
| LCD | ||
|
Two hundred thousand observation points |
||
| Rechargeable large capacity lithium battery | ||
|
123mm×55mm×25mm |
||
|
200g |
||
|
-10℃~45℃ |
||
|
Mechanical resilience |
Scope of strength |
10-60Mpa |
|
The kinetic energy of the nominal |
2.207J |
|
|
Spring stiffness |
7.84N/cm |
|
|
Impact hammer stroke |
||
|
Consistency error |
≤±0.5(The difference between the reading of the pointer of the mechanical resilience meter and the reading of the instrument screen) |
|
|
Steel anvil rate set rebound value |
80±2 |
|
|
55×55×270 |
||
|
|
1.0kg |
|
|
-10℃~40℃ |
||
|
Material: engineering plastic svolume:420*140*335mm weight:6kg |
||
| |
Integrated design. Small size.
|
1 |
| 2 |
The new MOS image sensor subverts the traditional signal acquisition method, and the data is accurate and reliable.
|
|
|
We have more accessories than our competitors
|
3 |
| 4 |
The upper computer software saves the data in excel format and can directly generate word report format, which is simple and convenient for your later software processing. |
|
|
|
||
| Features | |||
| 1 | Integrated design. Small size. | ||
| 2 | Ultra-low power consumption design, the continuous use of power supply time 8~10 hours. | ||
| 3 | The new MOS image sensor subverts the traditional signal acquisition method, and the data is accurate and reliable. | ||
| 4 | Special color screen display, automatic record detection time and date. | ||
| 5 | The machine is matched with national unified and local curves, and can be set and selected by itself. | ||
| 6 | The parameters such as Angle, test surface, pumping and carbonization can be set on site | ||
| 7 | Voice report function, noisy environment can also be equipped with headphones listening. | ||
| 8 | Optional micro printer to print test results on site. | ||
| 9 | Equipped with high-speed USB data port to transfer data to the computer. | ||
| 10 | The upper computer software saves the data in excel format and can directly generate word report format, which is simple and convenient for your later software processing. | ||
Q: Are your company a trading one or a factory?
A: Factory+ trade (integration), More than 10 years focusing on test instruments field.
Q: After an order is placed, when to deliver?
A: Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days Please be aware that our production lead times depend on specific items and item quantities.
Q: What about the warranty with after-sales services?
A: The testing machine is guaranteed for 12 months by gaotiejian, we can help you to repair your problem con troller freely, even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
Q: What about the product' services and qualit?
A: Each instruments must be carried out 100% quality examination and test when shipping and delivery goods Product use training, each of our product provide video training to show you how to install operate We can arrange engineer to train the operation of equipment to customer s company when you need. products are widely recognized and trusted by users.
