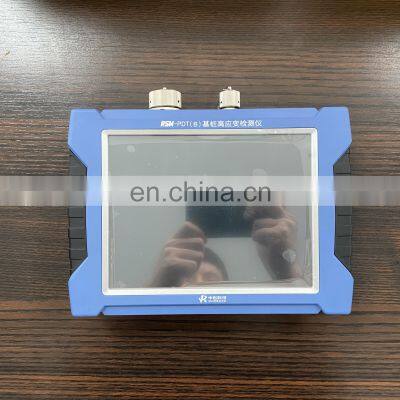

Help CenterPile Deep Foundations Testing PDA
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
1994
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Electronics Crosshole Sonic Integrity Testing of Piles EquipmentNegotiableMOQ: 1 -
Foundation Pile Dynamic Detector Defects Testing Integrity Tester Low Strain Foundation Pile Echo Integrity TesterNegotiableMOQ: 1
-
Sonic Echo Foundation Testing PIT Pile Integrity TesterNegotiableMOQ: 1
-
ASTM Pile Bearing Tester Low Strain and High Strain Integrity Tester Pile Driving AnalyzerNegotiableMOQ: 1
-
ASTM High Strain Pile Driving Analyzer PDA TesterNegotiableMOQ: 1
Attention!!!
Our products are all in English Version. Please feel free to inquiry or contact with me. I would like to demonstrate you some current videos and current pictures. My whatspp +86 15613723707
This product is produced by our company. If you buy this type of product elsewhere, the product quality and after-sales will not be guaranteed.
Product Description
PDA Testing will provide prediction on the pile bearing capacity, pile integrity, driving stresses and hammer performance for a given pile penetration. It is a relative low cost type of pile testing compared to static load test (MLT or CRP). The testing technique is quick and accurate.
PDA also can be used to perform high strain pile bearing monitoring to evaluate pile driving information for pile bearing
capacity, pile integrity, driving stresses and transferred energy against pile penetration. The results are essential for the
actual pile driving process and to obtain valuable data on the hammer, pile & soil system for re-design on the piled foundation (if necessary).
PDA also can be used to perform high strain pile bearing monitoring to evaluate pile driving information for pile bearing
capacity, pile integrity, driving stresses and transferred energy against pile penetration. The results are essential for the
actual pile driving process and to obtain valuable data on the hammer, pile & soil system for re-design on the piled foundation (if necessary).
If you need to buy, please contact the sales, do not pay directly to place an order.
Specification
Specifications |
|
Size/Weight |
L255×W180×H56mm / 1.8kg with battery |
Touch screen |
8.4-inch TFT true color LCD with 800 × 600 resolution |
Temperature Range in Operating |
-5 ºC ~ +40 ºC |
Temperature Range in Storage |
-20 ºC ~ +70 ºC |
Power |
6 working hours (internal battery) |
Controlling System |
Industrial computer |
Operating System |
Unix OS |
Converter |
3×16 bit A/D converter |
Sampling Interval |
5 to 65536 μs |
Sampling Accuracy |
Within 0.01% |
Trigger level |
Multiple level |
System Noise Level |
<2μv |
Frequency Bandwidth |
10 to 12000 Hz |
Dynamic Range |
≥ 100dB |
Data Storage |
3000 piles |
Data Transfer Mode |
USB 2.0 |
Data Length |
1k |
Data Channel |
4 channels |
Data Sensor |
Accelerometer, strain transducer |
Test Mode |
2V+2F; 2V+2V |

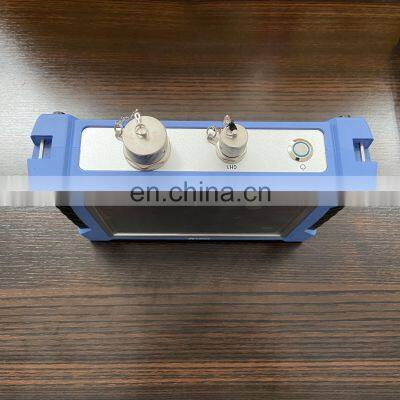

Detection interface
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Iwin testing equipment company is a high-tech enterprise focusing on the research and development, production and sales of engineering quality test and testing instruments.The company serves in the construction, the railroad, the highway, the water conservancy, the electric power, the university and the scientific research institute,To provide quality products, services and solutions for the industry,And establish a good long-term cooperative relationship with it.
The company's entire line of products passed: ISO9001 quality management system certification,The entire line of products has independent intellectual property rights,A number of products have applied for national patents.Meanwhile, iwin has passed the high-tech enterprise certification.
The company's entire line of products passed: ISO9001 quality management system certification,The entire line of products has independent intellectual property rights,A number of products have applied for national patents.Meanwhile, iwin has passed the high-tech enterprise certification.
FAQ
Q: Are your company a trading one or a factory?
A: Factory+ trade (integration), More than 10 years focusing on test instruments field.
Q: After an order is placed, How long it be delivered?
A: Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days Please be aware that our production lead
times depend on specific items and item quantities.
Q: What about the warranty with after-sales services?
A: The testing machine is guaranteed for 12 months by gaotiejian, we can help you to repair your problem controller freely, even
it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and
help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and
timely.
Q: What about the product' services and quality?
A: Each instruments must be carried out 100% quality examination and test when shipping and delivery goods Product use
training,each of our product provide video training to show you how to install operate We can arrange engineer to train the
operation of equipment to customers company when you need. Products are widely recognized and trusted by users.
A: Factory+ trade (integration), More than 10 years focusing on test instruments field.
Q: After an order is placed, How long it be delivered?
A: Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days Please be aware that our production lead
times depend on specific items and item quantities.
Q: What about the warranty with after-sales services?
A: The testing machine is guaranteed for 12 months by gaotiejian, we can help you to repair your problem controller freely, even
it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and
help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and
timely.
Q: What about the product' services and quality?
A: Each instruments must be carried out 100% quality examination and test when shipping and delivery goods Product use
training,each of our product provide video training to show you how to install operate We can arrange engineer to train the
operation of equipment to customers company when you need. Products are widely recognized and trusted by users.
