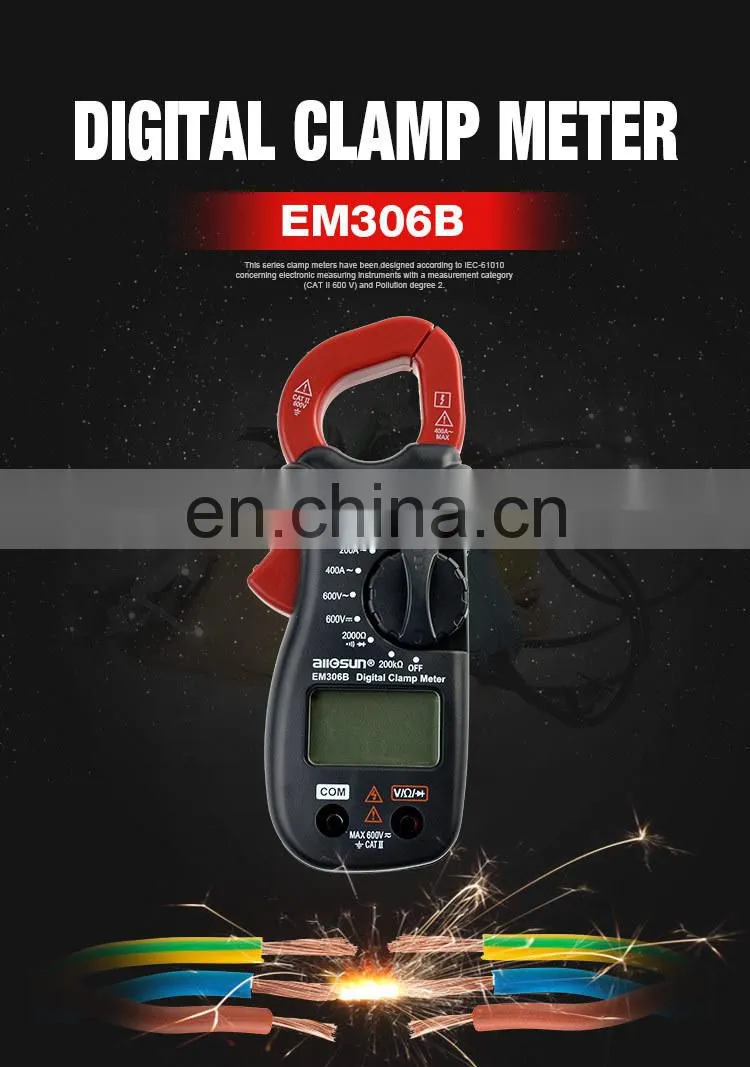

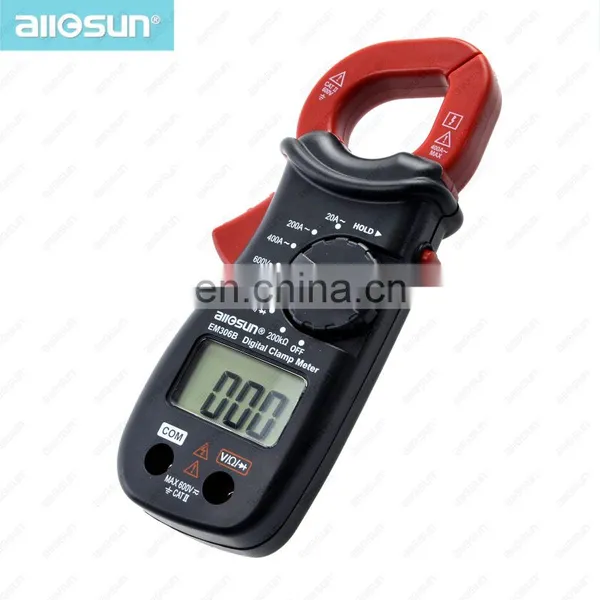

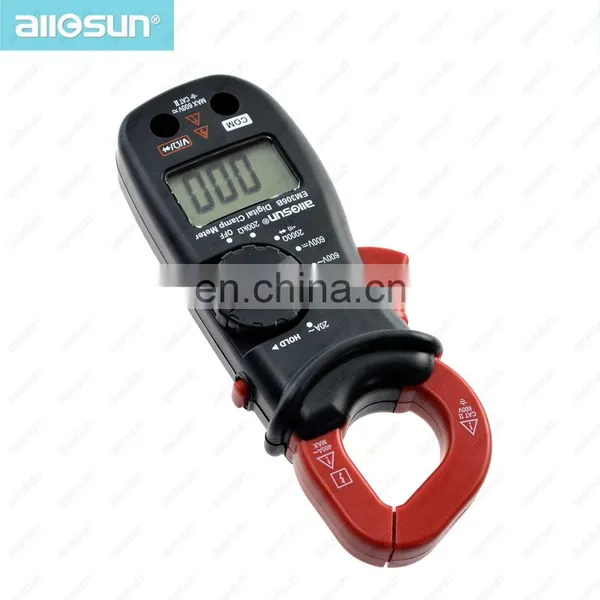

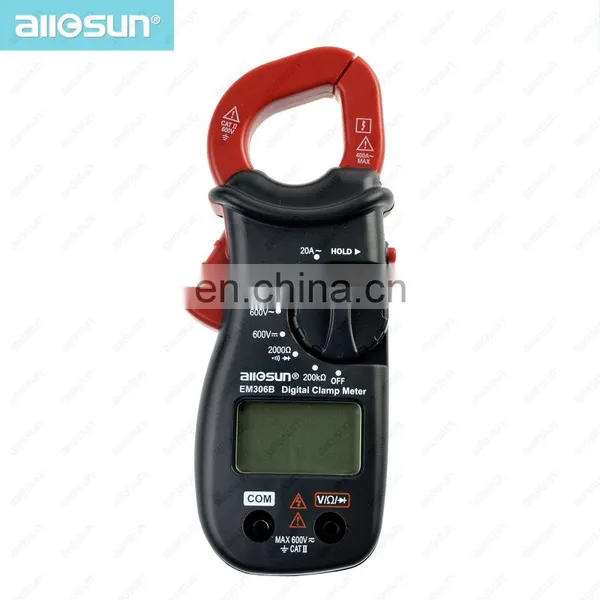

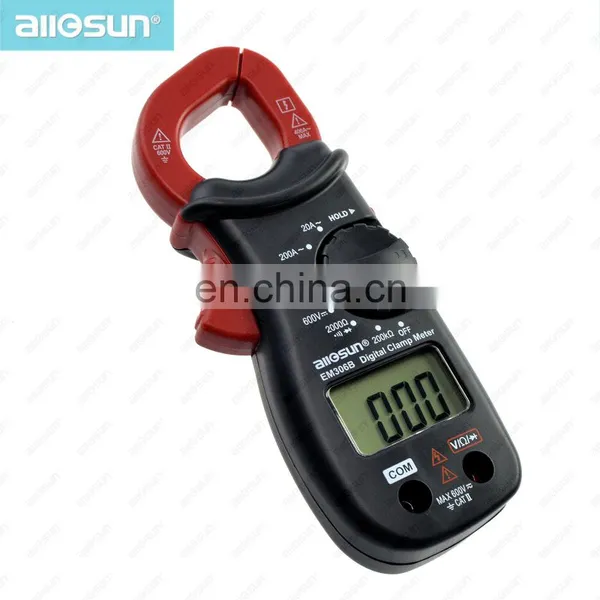

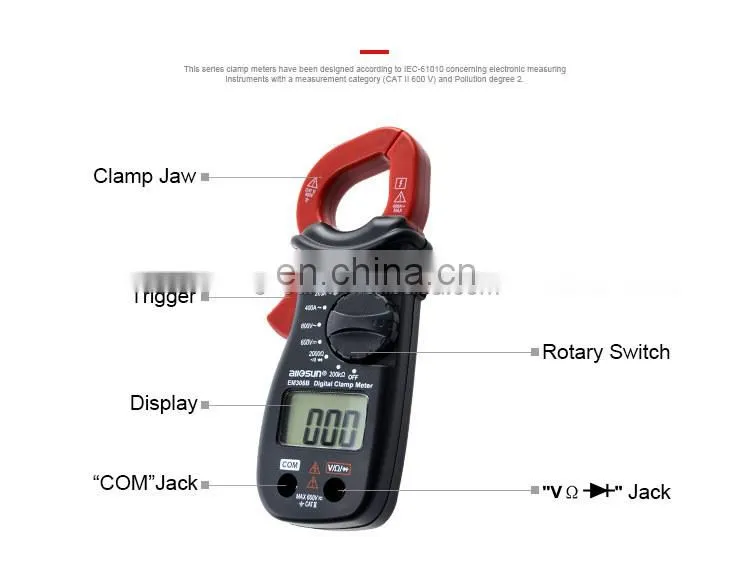

Allosun Handheld clamp meter digital AC DC Volt AC Amp OHM LCD Audible Diode Tester Portable Handheld Clamp Multimeter

This meters is a compact 3 1/2-digit digital clamp meter for measuring DC voltage, AC voltage, AC current, resistance, diode and continuity. It is easy to operate and is an ideal measurement tool.

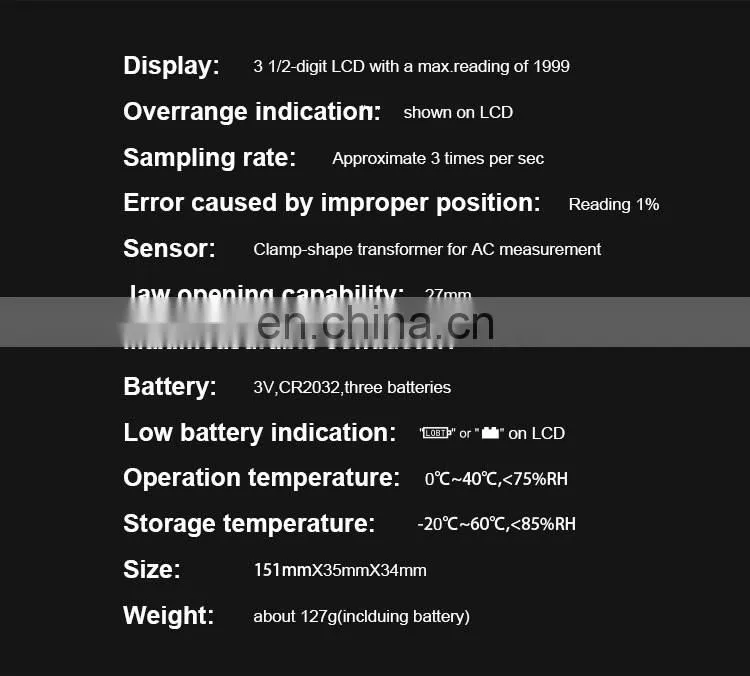

General Specification

Display: 3 1/2-digit LCD with a max. reading of 1999

Overrange indication: "1" shown on LCD

Sampling rate: Approximate 3 times per sec.

Error caused by improper position: 1% of reading

 (Note:The conductor should be placed in the center of the area closed by the jaws to avoid this error)

Sensor: Clamp-shape transformer for AC measurement

Jaw opening capability: 27 mm

Max. measureable conductor: φ25 mm

Battery: 3V, CR2032, three units

Operation temperature / humidity: 0°C to 40°C, <75%RH

Storage temperature / humidity: -20°C to 60°C, <85%RH

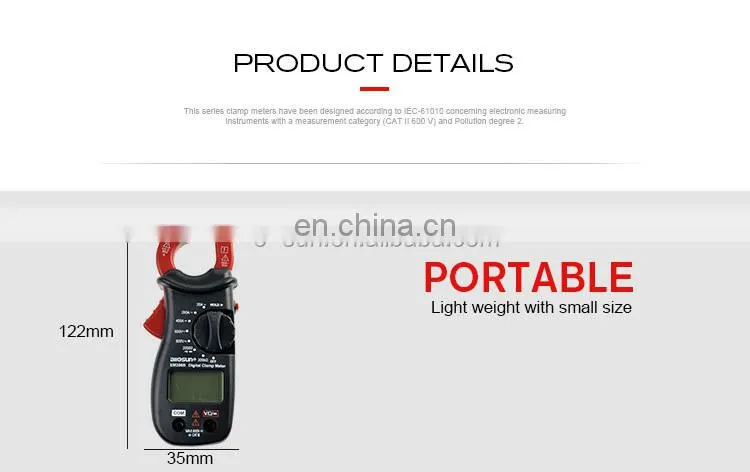

Size: 151 X 65 X 34 mm

Weight: about 127g

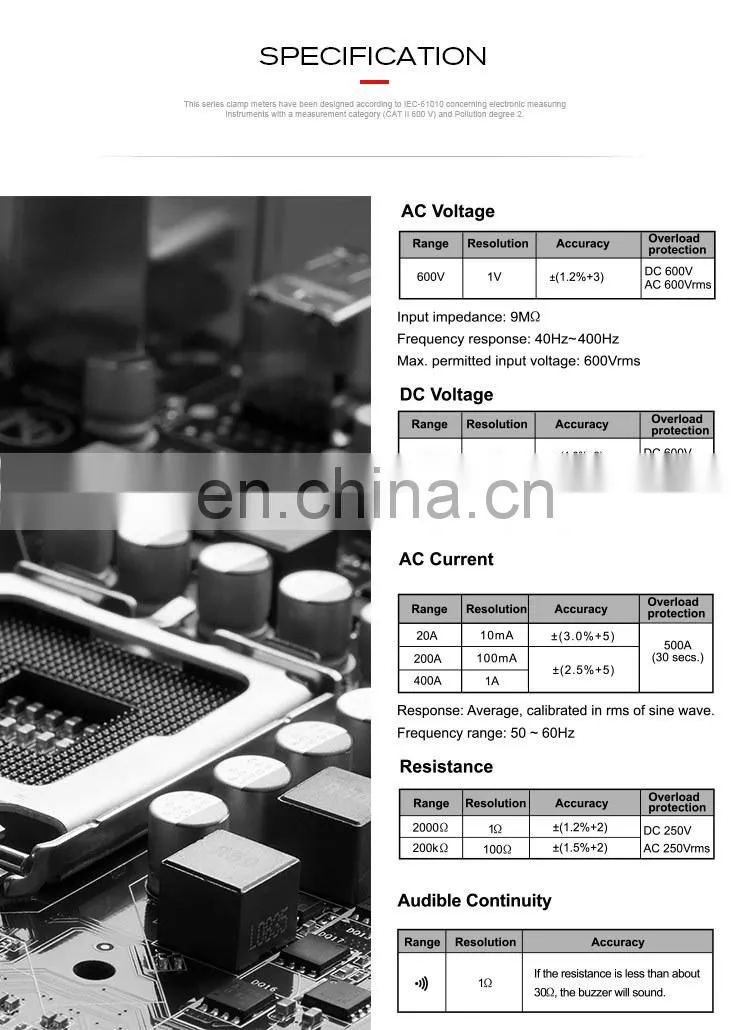

Specification

AC Voltage: 300V

DC Voltage: 300V

AC Current: 20A/200A/400A

Resistance: 2000Ω/200kΩ

Audible Continuity: When the resistance ≤ about 30Ω, buzzer will sound.

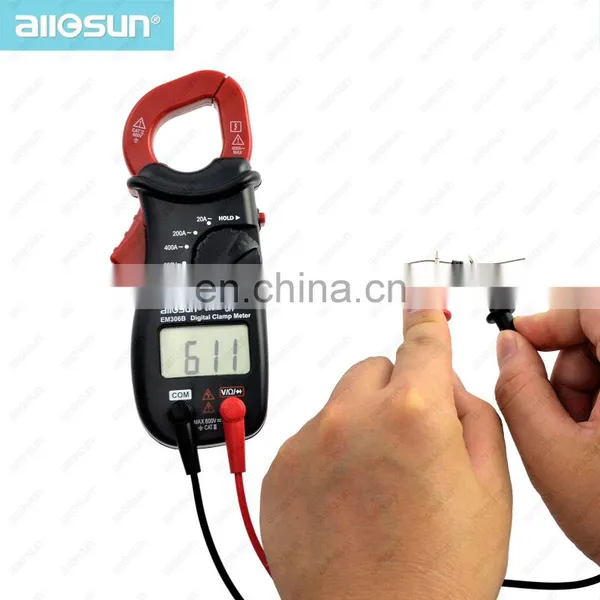

Diode: Approx. forward voltage drop will be displayed.

Safety Information

This clamp meter has been designed according to IEC-61010 concerning electronic measuring instruments with a measurement category (CAT III 300 V) and pollution degree 2.
