Esd Smt Pcb Magazine Racks Customized With H Shape Stopper Plate
US$ 18 - 150
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
CONCO
Place of Origin:
China
Model Number:
COP-803 customzied
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
7 days
Related Products
-
535 x 530 x 563 mm Smt Belt Adjustment Pcb Magazine Racks ManufacturerUS$ 160 - 180MOQ: 1 Set -
535 x 380 x 570 mm Screw Pcb Magazine Racks forUS$ 18 - 150MOQ: 1 Set
-
Custom Smt Pcb Magazine Rack With Stopper Plates and ClipsUS$ 49 - 92MOQ: 1 Piece
-
Colorful Esd Smt PCB Magazine Slot StopperUS$ 0.08 - 0.15MOQ: 200 Pieces
-
535*530*563mm Gear Belt Adjustment Smt Esd Magazine FactoryUS$ 25 - 220MOQ: 1 Set
Brand Name
CONCO
Place of Origin
China
Model Number
COP-803 customzied
After-sales Service Provided
No overseas service provided

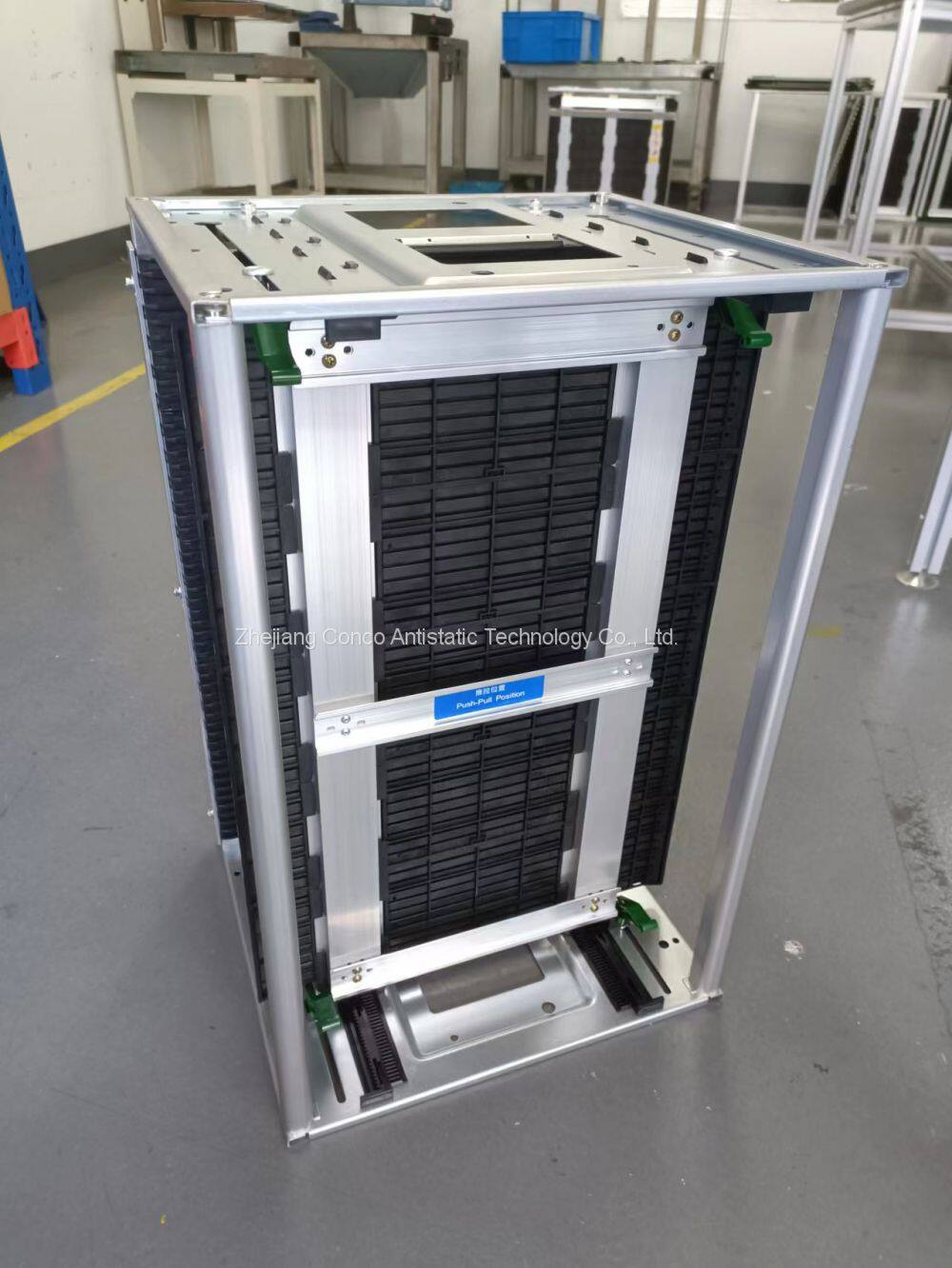

355 x 320 x 563 mm smt pcb magazine rack for pcba assembly
Specification
| Name | ESD pcb magazine rack cop-803 |
| Surface resistance | 104~106 Ω |
| Temperature resistance | 80° C |
| Overall size | 355 x 320 x 563 mm |
| Storage capacity | 50 pieces of PCB |
| Specifications | 350 x (50-250)mm |
| Side guide slot | depth 3.5mm, width 5mm, pitch 10mm |
| The top and bottom boards | made of metal |
| Panels material | conductive plastic panel |
| Packing detail | 1pcs into 1 carton , 50 cartons into a wooden case (size 1.2*1*1.3m) |
Product features:
Smt esd pcb magazine rack is made of aluminum alloy column, side panel, The adjustable coupling drive set, static material four parts
our products can bear high strength , quality original materials & anti-aging .
other models:
| SKU. |
Outer dimension （mm） |
Adjust way | Adjustable width（mm） | Weight（kg） | Ref.position | Base material | Side board material |
Quantity of PCB Capacity |
Max Tolerant Temperature (℃） |
|||||
| L | W | H | Gear track adjustment | Screw adjustment | Belt adjustment |
A | B | |||||||
| COP-801 | 400 | 320 | 563 | √ | √ | 50-250 | 6.9/6.7 | 34 | 34 | Metal | plastic | 50 | 80/120/200 | |
| COP-801L | 400 | 320 | 563 | √ | √ | 50-250 | 8.8/8.6 | 34 | 34 | Metal | Aluminum | 50 | 300 | |
| COP-802 | 355 | 315 | 580 | √ | 80-250 | 5 | 34 | 34 | Plastic | plastic | 50 | 80 | ||
| COP-803 | 355 | 320 | 563 | √ | √ | √ | 50-250 | 5.7/5.5/8.2 | 34 | 34 | Metal | plastic | 50 | 80/120/200 |
| COP-803L | 355 | 320 | 563 | √ | √ | 50-250 | 7.4/7.2 | 34 | 34 | Metal | Aluminum | 50 | 300 | |
| COP-805 | 355 | 320 | 563 | √ | √ | 50-250 | 4.2/4.0 | 34 | 34 | Plastic | plastic | 50 | 80 | |
| COP-806 | 460 | 400 | 563 | √ | √ | √ | 50-330 | 7.7/7.5/11.2 | 34 | 34 | Metal | plastic | 50 | 80/120/200 |
| COP-806L | 460 | 400 | 563 | √ | √ | 50-330 | 9.8/9.6 | 34 | 34 | Metal | Aluminum | 50 | 300 | |
| COP-807 | 460 | 400 | 563 | √ | √ | 50-330 | 8.2/8.0 | 34 | 34 | Metal | plastic | 50 | 80/120/200 | |
| COP-807L | 460 | 400 | 563 | √ | √ | 50-330 | 10.4/10.2 | 34 | 34 | Metal | Aluminum | 50 | 300 | |
| COP-808 | 535 | 460 | 569 | √ | √ | √ | 50-390 | 10.3/9.9 | 34 | 34/40 | Metal | plastic | 50 | 80/120/200 |
| COP-808L | 535 | 460 | 569 | √ | √ | 50-390 | 11.5/11.3 | 34 | 34/40 | Metal | Aluminum | 50 | 300 | |
| COP-809 | 535 | 530 | 569 | √ | √ | √ | 50-460 | 12.3/11.9/13.4 | 34 | 34/40 | Metal | plastic | 50 | 80/120/200 |
| COP-809L | 535 | 530 | 569 | √ | √ | 50-460 | 13.5/13.2 | 34 | 34/40 | Metal | Aluminum | 50 | 300 | |
| COP-810 | 630 | 530 | 563 | √ | √ | √ | 50-460 | 14.0/13.6 | 34 | 34 | Metal | plastic | 50 | 80 |
