Home > Products > esd magazine rack > 535 x 530 x 563 mm smt belt adjustment pcb magazine racks manufacturer
535 x 530 x 563 mm smt belt adjustment pcb magazine racks manufacturer
USD $180 - $220
/ Set
1 Set(Min.Order)
- 1000 Set / Sets per Month
- ningbo
- T/T
- 7 days
You May Like
-
535 x 380 x 570 mm screw pcb magazine racks for
-
esd PCB Magazine Slot Stopper , Smt Esd Magazine Rack Slot Locking Pin clips Pp Material
-
custom smt pcb magazine rack with stopper plates and clips
-
high quality stainless steel pcb storage handling trolley carts pcba
-
colorful esd smt PCB Magazine Slot Stopper
-
1000*700*1390mm long pcb boards storage and moving cars trolleys
Product Details
| Brand Name: | CONCO | Place of Origin: | China | Model Number: | COP-809 belt |
| After-sales Service Provided: | No overseas service provided |
Product Description

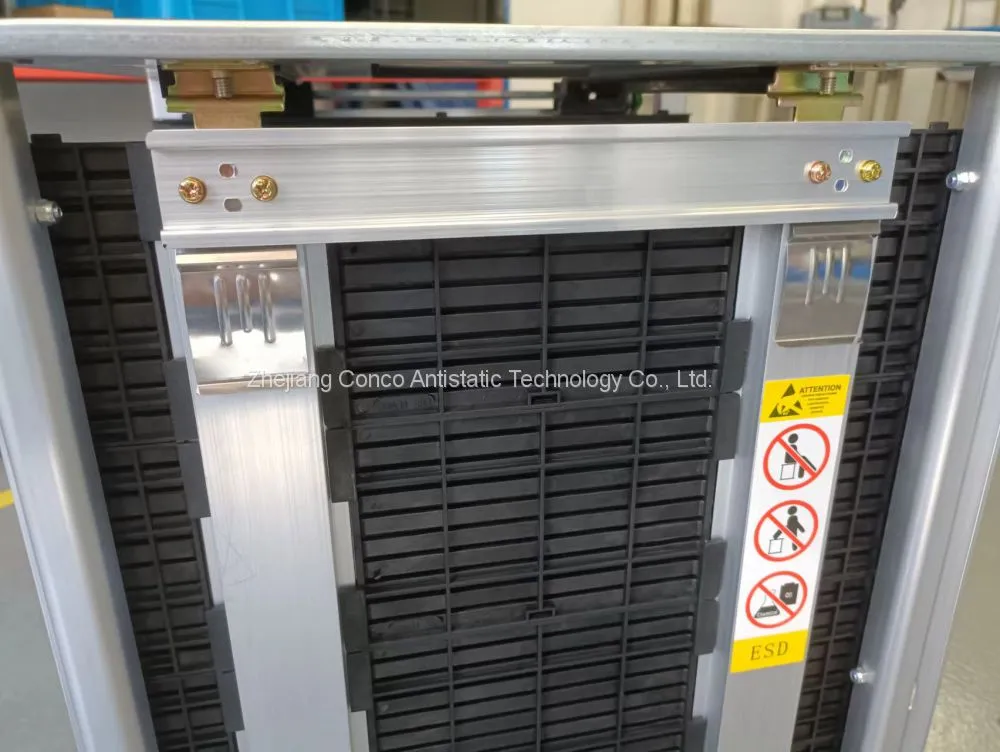

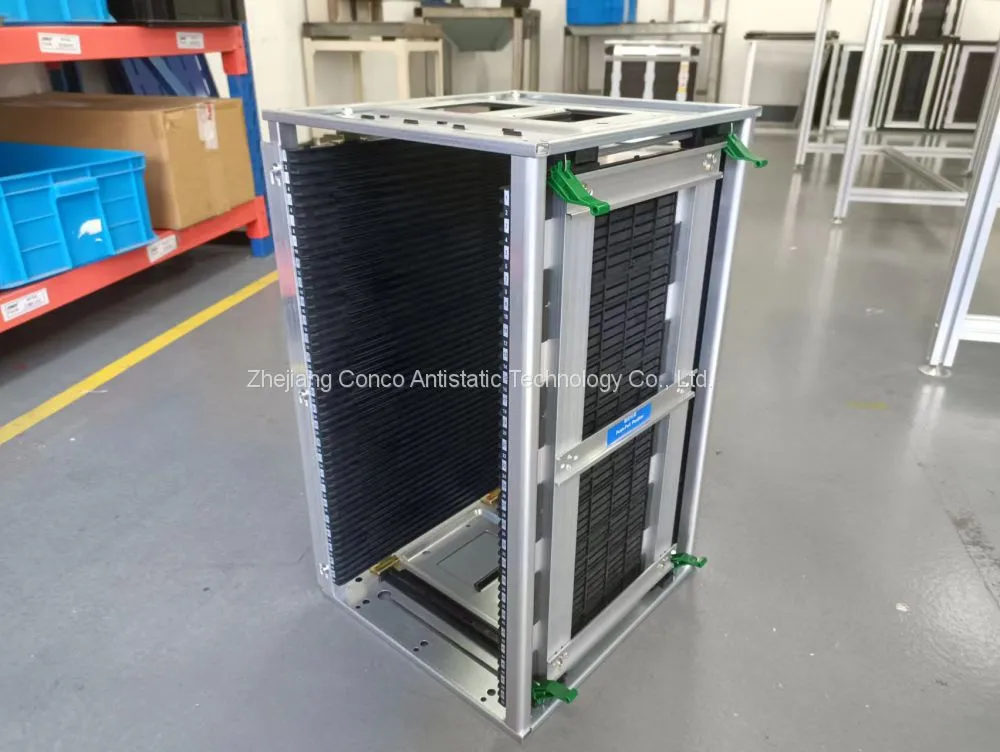

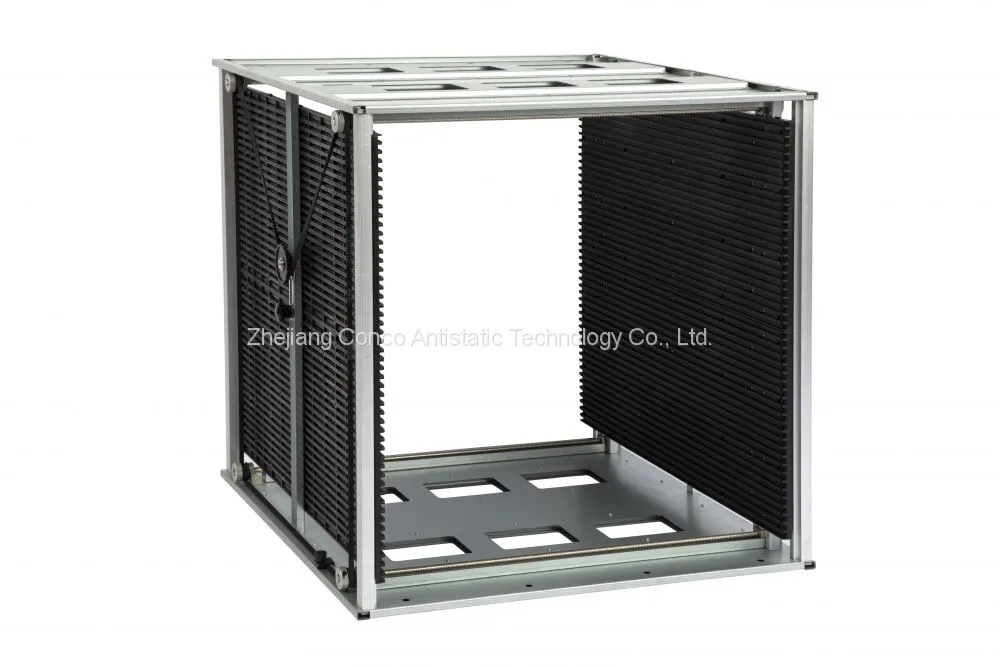

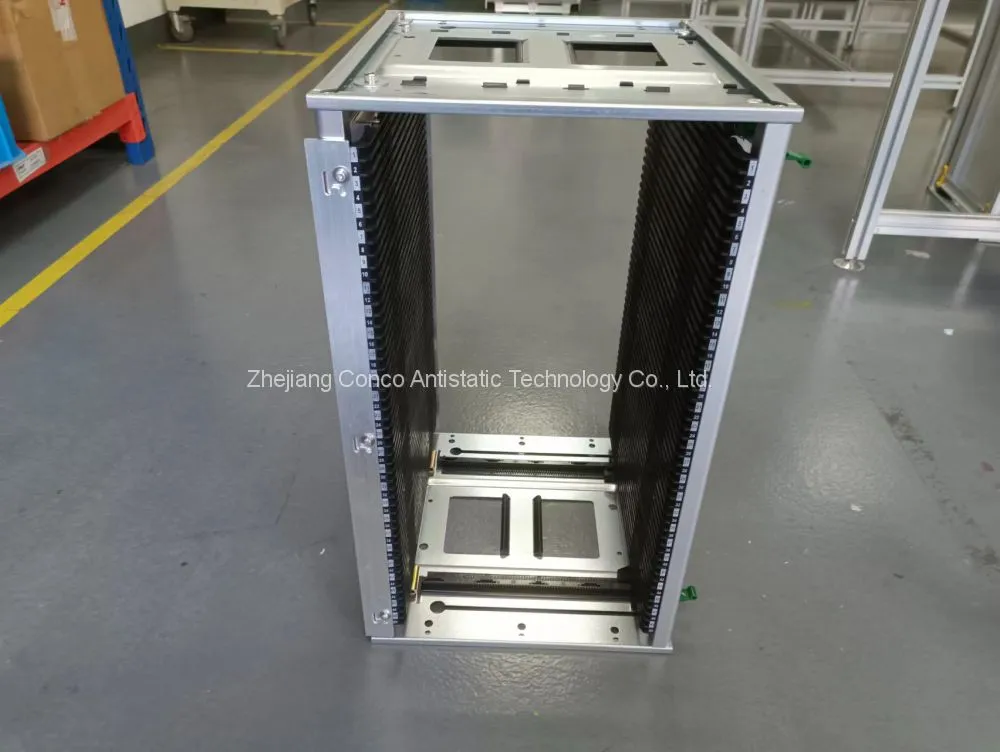

535 x 530 x 563 mm belt adjustment smt pcb magazine rack for pcba assembly
Specification
| Name | ESD pcb magazine rack cop-815 |
| Surface resistance | 104~106 Ω |
| Temperature resistance | 80° C |
| Overall size | 535 x 530 x 563 mm |
| Storage capacity | 50 pieces of PCB |
| Specifications | 535 x (0-460)mm |
| Side guide slot | depth 4mm, width 5mm, pitch 10mm |
| The top and bottom boards | made of metal |
| Panels material | conductive plastic panel |
| Packing detail | 1pcs into 1 carton , 40 cartons into a wooden case (size 1.2*1.16*1.34m) |

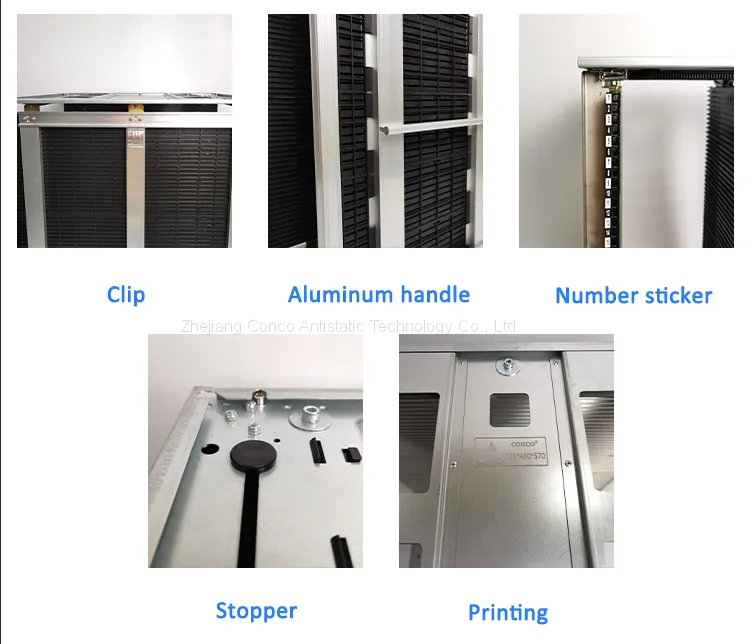

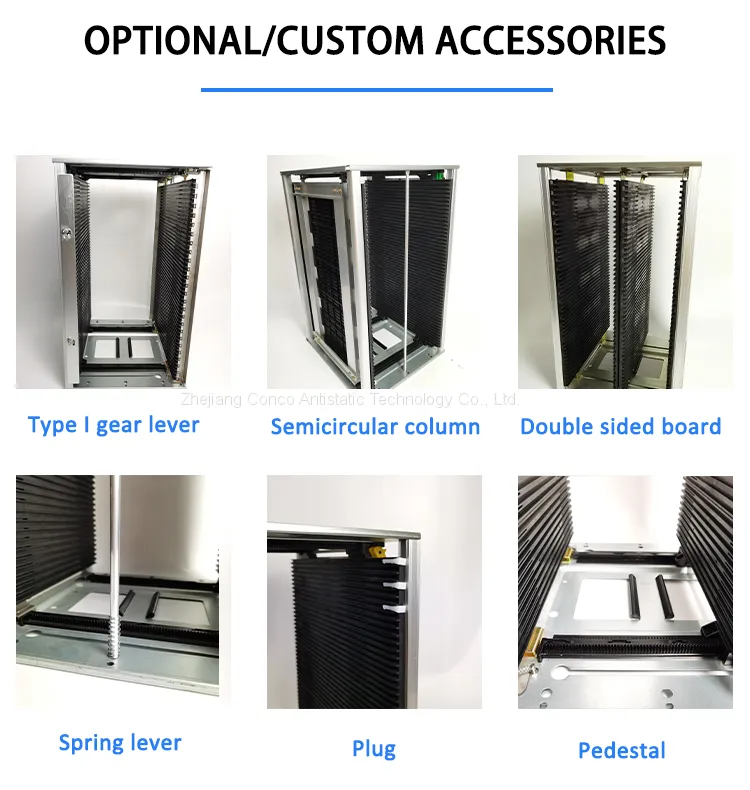

Additional accessories can supply :

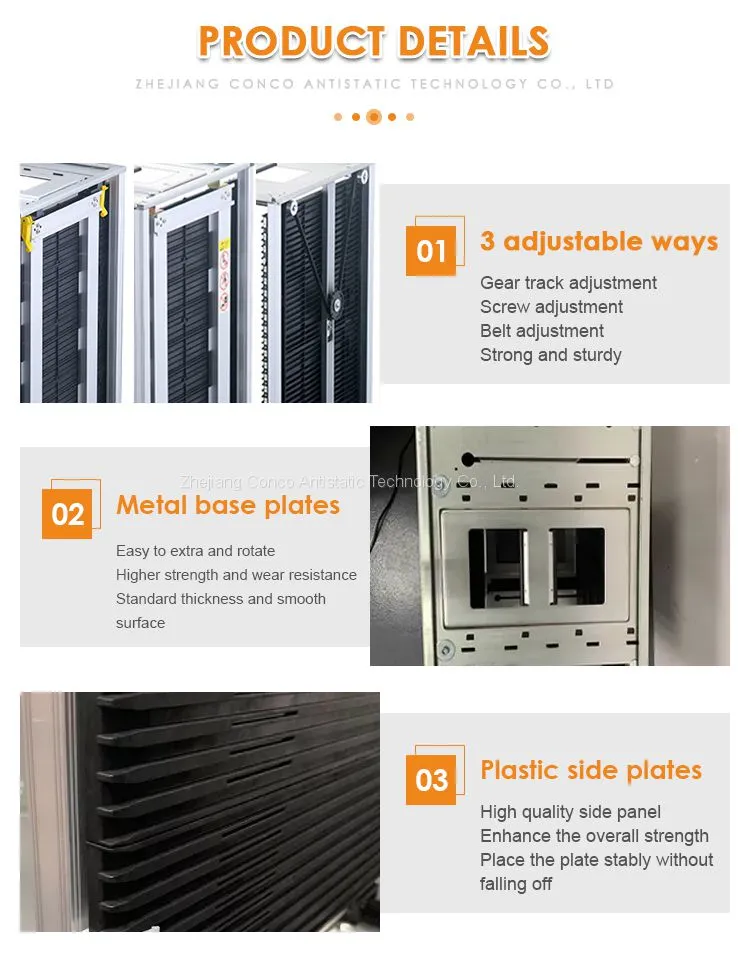

Product features:
Smt esd pcb magazine rack is made of aluminum alloy column, side panel, The adjustable coupling drive set, static material four parts
our products can bear high strength , quality original materials & anti-aging .
other models:
| SKU. | Outer dimension （mm） | Adjust way | Adjustable width（mm） | Weight（kg） | Ref.position | Base material | Side board material | Quantity of PCB Capacity | Max Tolerant Temperature (℃） | |||||
| L | W | H | Gear track adjustment | Screw adjustment | Belt adjustment | A | B | |||||||
| COP-801 | 400 | 320 | 563 | √ | √ | 50-250 | 6.9/6.7 | 34 | 34 | Metal | plastic | 50 | 80/120/200 | |
| COP-801L | 400 | 320 | 563 | √ | √ | 50-250 | 8.8/8.6 | 34 | 34 | Metal | Aluminum | 50 | 300 | |
| COP-802 | 355 | 315 | 580 | √ | 80-250 | 5 | 34 | 34 | Plastic | plastic | 50 | 80 | ||
| COP-803 | 355 | 320 | 563 | √ | √ | √ | 50-250 | 5.7/5.5/8.2 | 34 | 34 | Metal | plastic | 50 | 80/120/200 |
| COP-803L | 355 | 320 | 563 | √ | √ | 50-250 | 7.4/7.2 | 34 | 34 | Metal | Aluminum | 50 | 300 | |
| COP-805 | 355 | 320 | 563 | √ | √ | 50-250 | 4.2/4.0 | 34 | 34 | Plastic | plastic | 50 | 80 | |
| COP-806 | 460 | 400 | 563 | √ | √ | √ | 50-330 | 7.7/7.5/11.2 | 34 | 34 | Metal | plastic | 50 | 80/120/200 |
| COP-806L | 460 | 400 | 563 | √ | √ | 50-330 | 9.8/9.6 | 34 | 34 | Metal | Aluminum | 50 | 300 | |
| COP-807 | 460 | 400 | 563 | √ | √ | 50-330 | 8.2/8.0 | 34 | 34 | Metal | plastic | 50 | 80/120/200 | |
| COP-807L | 460 | 400 | 563 | √ | √ | 50-330 | 10.4/10.2 | 34 | 34 | Metal | Aluminum | 50 | 300 | |
| COP-808 | 535 | 460 | 569 | √ | √ | √ | 50-390 | 10.3/9.9 | 34 | 34/40 | Metal | plastic | 50 | 80/120/200 |
| COP-808L | 535 | 460 | 569 | √ | √ | 50-390 | 11.5/11.3 | 34 | 34/40 | Metal | Aluminum | 50 | 300 | |
| COP-809 | 535 | 530 | 569 | √ | √ | √ | 50-460 | 12.3/11.9/13.4 | 34 | 34/40 | Metal | plastic | 50 | 80/120/200 |
| COP-809L | 535 | 530 | 569 | √ | √ | 50-460 | 13.5/13.2 | 34 | 34/40 | Metal | Aluminum | 50 | 300 | |
| COP-810 | 630 | 530 | 563 | √ | √ | √ | 50-460 | 14.0/13.6 | 34 | 34 | Metal | plastic | 50 | 80 |
