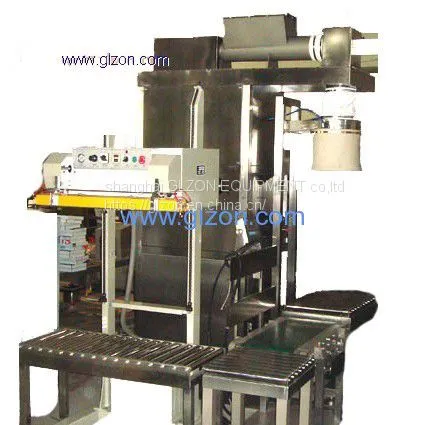

Dust-free powder packing machine

Dust-free powder packing machine, Hank Dragon feeding packing machine (10-50kg)

Brief note:

The SEMI-AUTOMATIC FILLING AND PACKING MACHINE CAN AUTOMATICALLY COMPLETE MEASURING, BAG CLAMPING (CONTROLLED BY SEALED BAG CLAMPING, NO DUST LEAKAGE IN THE PACKING PROCESS), FILLING, SEALING, SEWING, transmission and SO on. Because it is designed in accordance with national GMP standards, so that it is suitable for packaging those easy to flow or poor fluidity of powder granular materials, such as milk powder, feed, rice flour, white sugar, coffee, monosodium glutamate, solid beverages, glucose, rice flour, solid medicine, pesticides, powder granular additives, dyes, etc.

Features:

1, the machine in addition to the motor, cylinder, electrical accessories, pneumatic components, sewing machine other are made of stainless steel, especially suitable for GMP certification, food hygiene certification, corrosion resistance chemical products and other packaging requirements.

2, with overshoot suppression suppression, drop correction, out of range alarm and other functions.

3, the use of new popular packaging scale control system, high precision and high speed measurement special instrument, strong function, high reliability, fully adapt to the requirements of continuous production.

4, can set the time of automatic double PVC conveyor belt (skeleton is all stainless steel) easy transmission, clean, clean, beautiful, can be washed with water.

5. Equipped with calibration procedure (with weights) : it can be easily calibrated at any time, especially useful for the weight drift not used for a long time.

6, easy to remove the residual material: screw can be directly inserted out of the separate cleaning.

Technical parameters:

1. Measurement method: weighing type (with the packaging bag YI and weighing)

2. Feeding method: spiral feeding (or vibration feeding)

3. Packing weight: 10-50kg

4, packaging accuracy: ≤±0.2%

5. Packing speed: ≤3 packets /min

6. Suture method: heat sealing machine + thread sewing package
