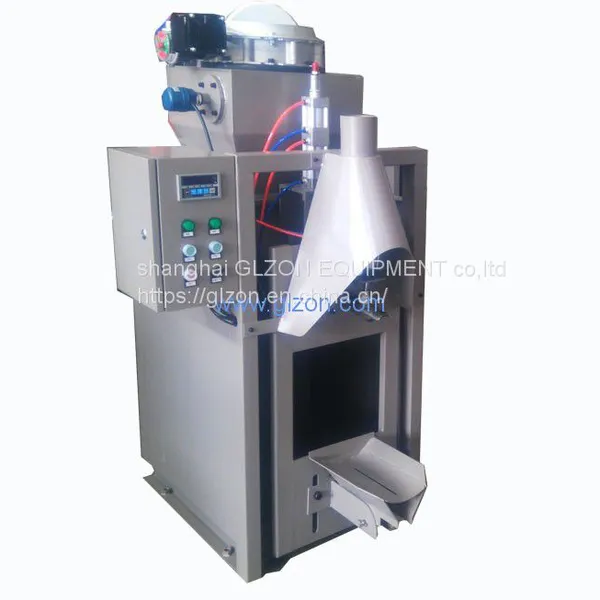

Help CenterSelf Leveling Mortar Packing Machine
Related Products
-
Impeller Valve Port Weighing and Packing MachineNegotiableMOQ: 10 Bags -
Pneumatic Self-leveling Mortar Packing MachineNegotiableMOQ: 10 Bags
-
Double Port Air Pressure Type Dry Powder Mortar Packing MachineNegotiableMOQ: 10 Bags
-
Automatic Push Bag Packing MachineNegotiableMOQ: 10 Bags
-
Thermal Insulation Mortar Weighing and Packing MachineNegotiableMOQ: 10 Bags
Technical parameters:
1, specification: GZM-50A
2. Packing speed: 3 ~ 6 bags/min
3, measurement accuracy: ±0.4% ~ 0.6%
4, measurement range: 5 ~ 10kg 10 ~ 25kg 25 ~ 50kg
5, applicable materials: the bulk gravity from 0.5 to 2.0T/m3 of all kinds of powder material. Such as: barite, quartz sand, burnt gems and other refractory materials and dry powder mortar series products.
Self-leveling mortar packaging machine Product features:
The blowing type valve port quantitative packing machine is suitable for powder mixture or granular material with large specific gravity. It is especially suitable for hard grains. Such as: barite, quartz sand, coking gems and other refractory materials and dry mortar series products. At the same time, it also has a good application in the active carbon industry.
Working principle of self-leveling mortar packing machine:
The material is fed by forced air flow. The material in the boiling chamber of the packing machine is swept by the low-pressure and high-volume air flow from outside the chamber under the closed environment, so that it is discharged into the bag by the discharge port, and the mechanical and electronic control parts cooperate. To control the material into the bag within the set target range, in order to achieve the purpose of packaging measurement.
